Ambient Air Temperature Sensor and Driver Information Center Display Wiring Schematics

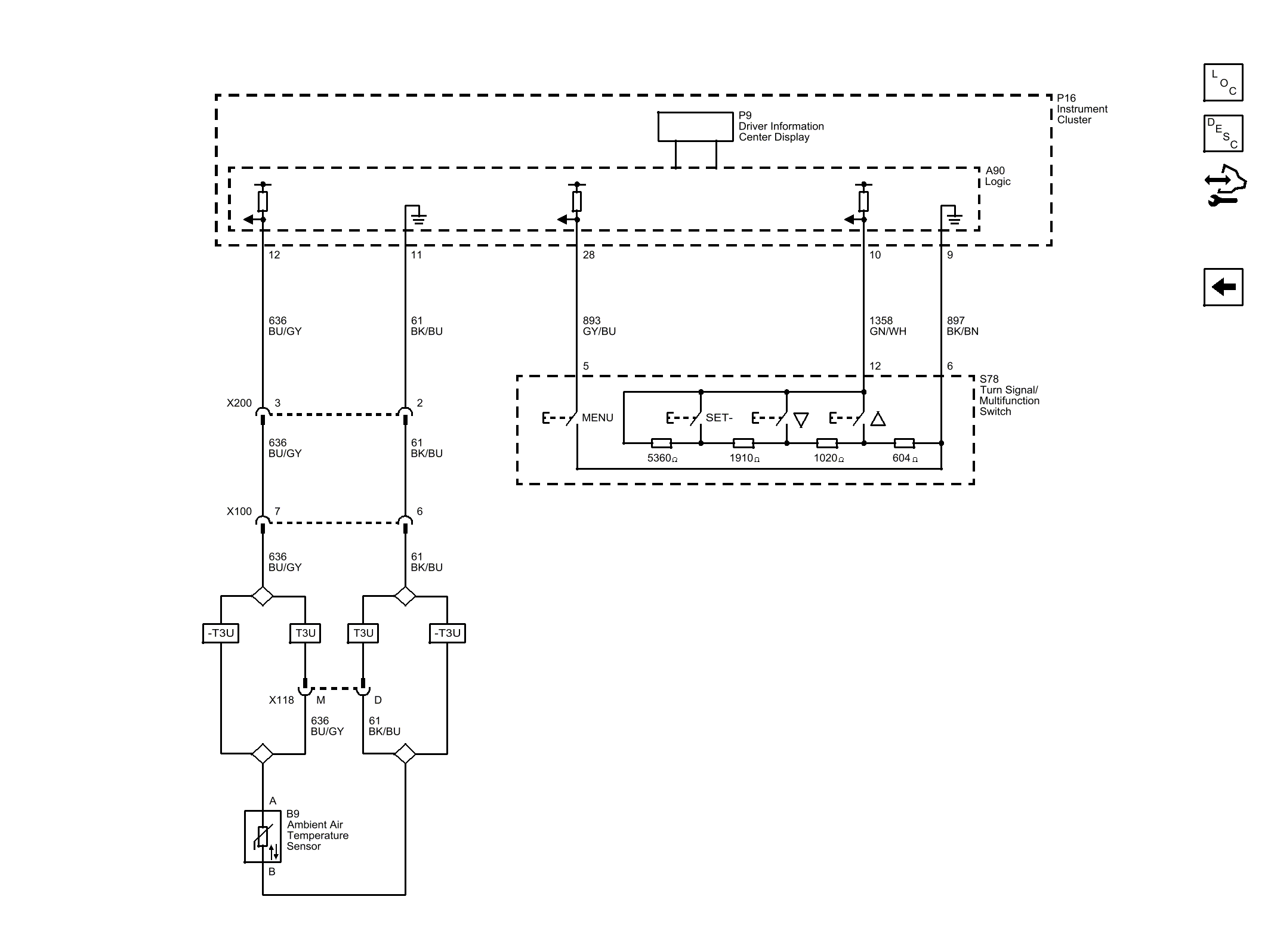

Fig 1: Ambient Air Temperature Sensor and Driver Information Center Display Wiring Schematic
GM3336700Courtesy of GENERAL MOTORS COMPANY
