Right Front of Passenger Compartment Harness Routing

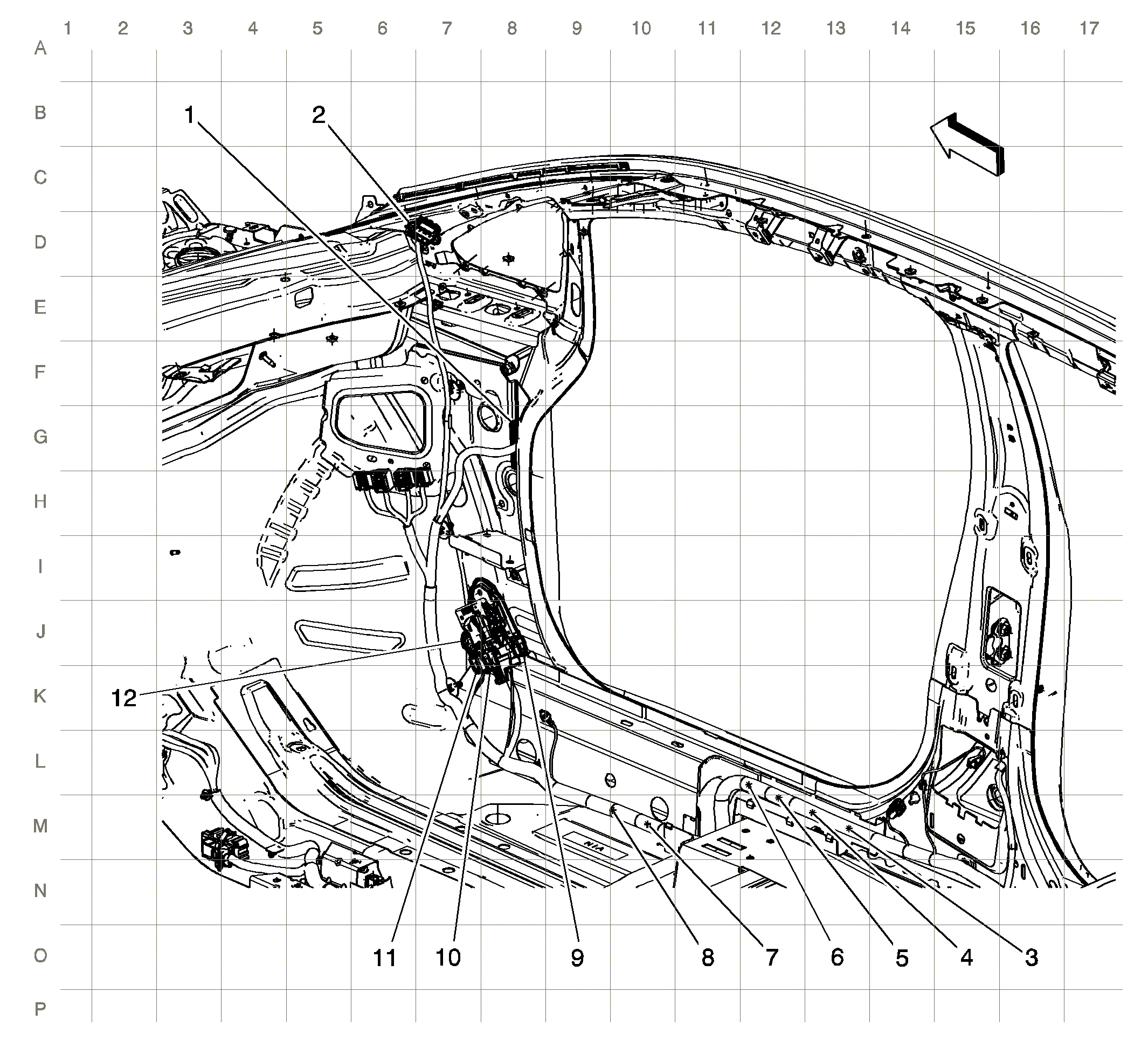

Fig 1: Right Front of Passenger Compartment Harness Routing

Courtesy of GENERAL MOTORS COMPANY

Items
1:  X600 X600 Passenger Door Harness to Body Harness
2:  X211 X211 Headliner Harness to Body Harness
3:  J305 (UQA)
4:  J306 (UQA)
5:  J304
6:  J303 (DD8)
7:  J302 (UQA)
8:  J301 (UQA)
9:  X203 X203 Body Harness to Instrument Panel Harness
10:  X202 (UE1) X202 Body Harness to Instrument Panel Harness (UE1)
11:  X201 (U2K) X201 Body Harness to Instrument Panel Harness (U2K)
12:  X210 X210 Instrument Panel Harness to Body Harness (UQA)
