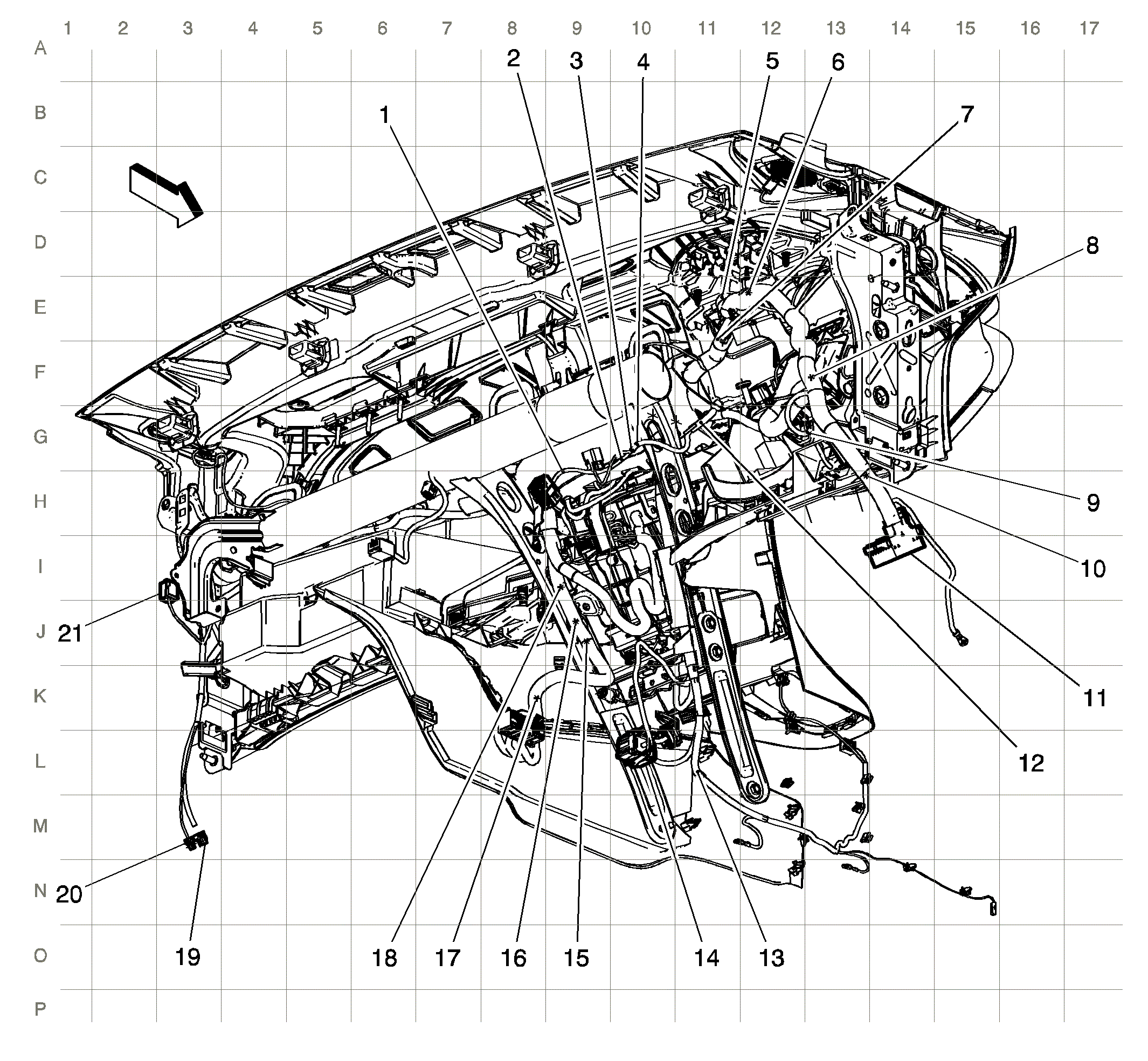

Instrument Panel Harness Routing
| Items |
|---|
| 1: J223 (UZ6) |
| 2: J222 (UZ6) |
| 3: J221 (UZ6) |
| 4: J220 |
| 5: J216 |
| 6: J215 |
| 7: J217 |
| 8: J214 |
| 9: J212 |
| 10: J213 (without MYJ) |
| 11: X200 X200 Instrument Panel Harness to Body Harness |
| 12: J218 (ASV) |
| 13: J234 |
| 14: X300 X300 Instrument Panel Harness to Front Console Harness |
| 15: J228 |
| 16: J227 |
| 17: J229 |
| 18: J226 (UZ6) |
| 19: X202 (UE1) X202 Body Harness to Instrument Panel Harness (UE1) |
| 20: X201 (U2K) X201 Body Harness to Instrument Panel Harness (U2K) |
| 21: X210 X210 Instrument Panel Harness to Body Harness (UQA) |
