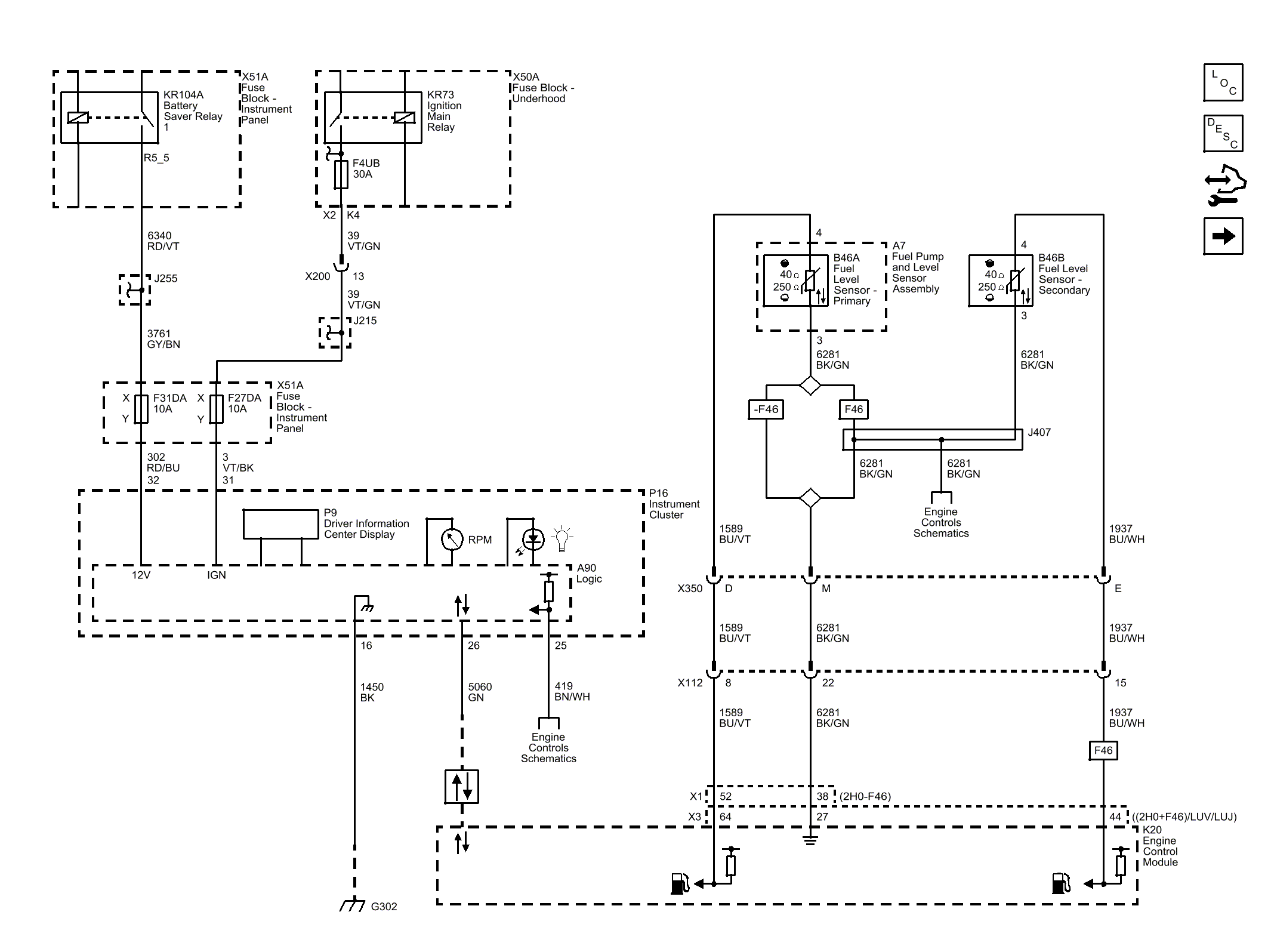

Home >> Buick >> 2014 >> Encore Base, 1.4L Eng VIN 8, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics (Trax) >> Power, Ground, Serial Data, and Gauges
