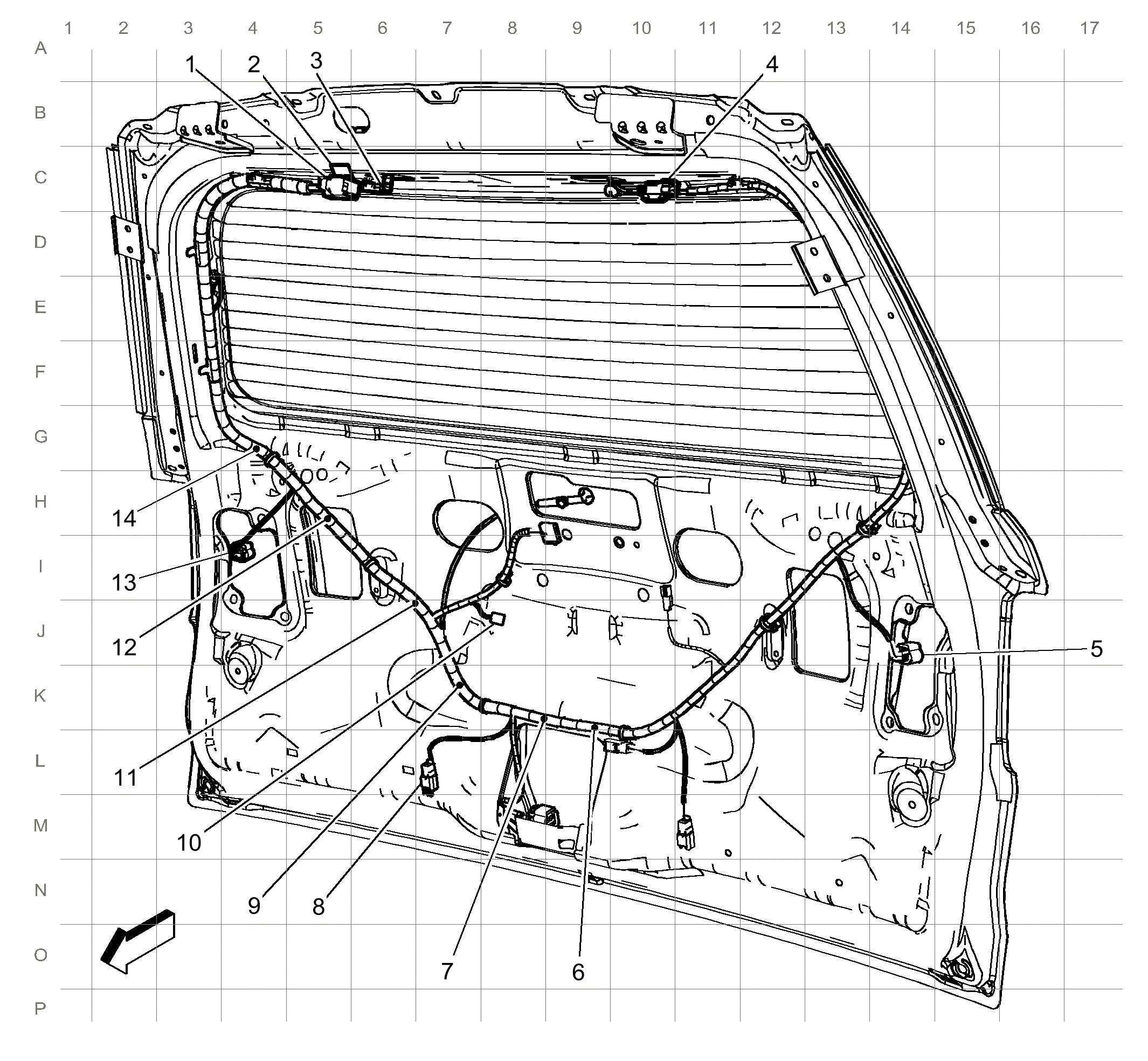

| 1:
X903 X903 Body Harness to Liftgate Harness |
| 2:
X902 X902 Body Harness to Liftgate Harness (UVC) |
| 3:
X901 X901 Body Harness to Liftgate Harness |
| 4:
X911 X911 Center High Mounted Stop Lamp (CHMSL) Harness to Liftgate Harness |
| 5:
X910 ((W49 or Z88)) X910 Liftgate Harness to Left Liftgate Tail Lamp Assembly Harness |
| 6:
J911 ((W49 or Z88)) |
| 7:
J915 |
| 8:
X940 X940 Liftgate Harness to Liftgate Trim Panel Harness |
| 9:
J905 ((TB5)) |
| 10:
X933 ((W49 or Z88)) X933 License Lamp Harness to Liftgate Harness (Z88) |
| 11:
J907 ((TB5)) |
| 12:
J913 |
| 13:
X920 ((W49 or Z88)) X920 Liftgate Harness to Right Liftgate Tail Lamp Assembly Harness |
| 14:
J903 ((Z88)) |
