Engine Compartment Harness Routing

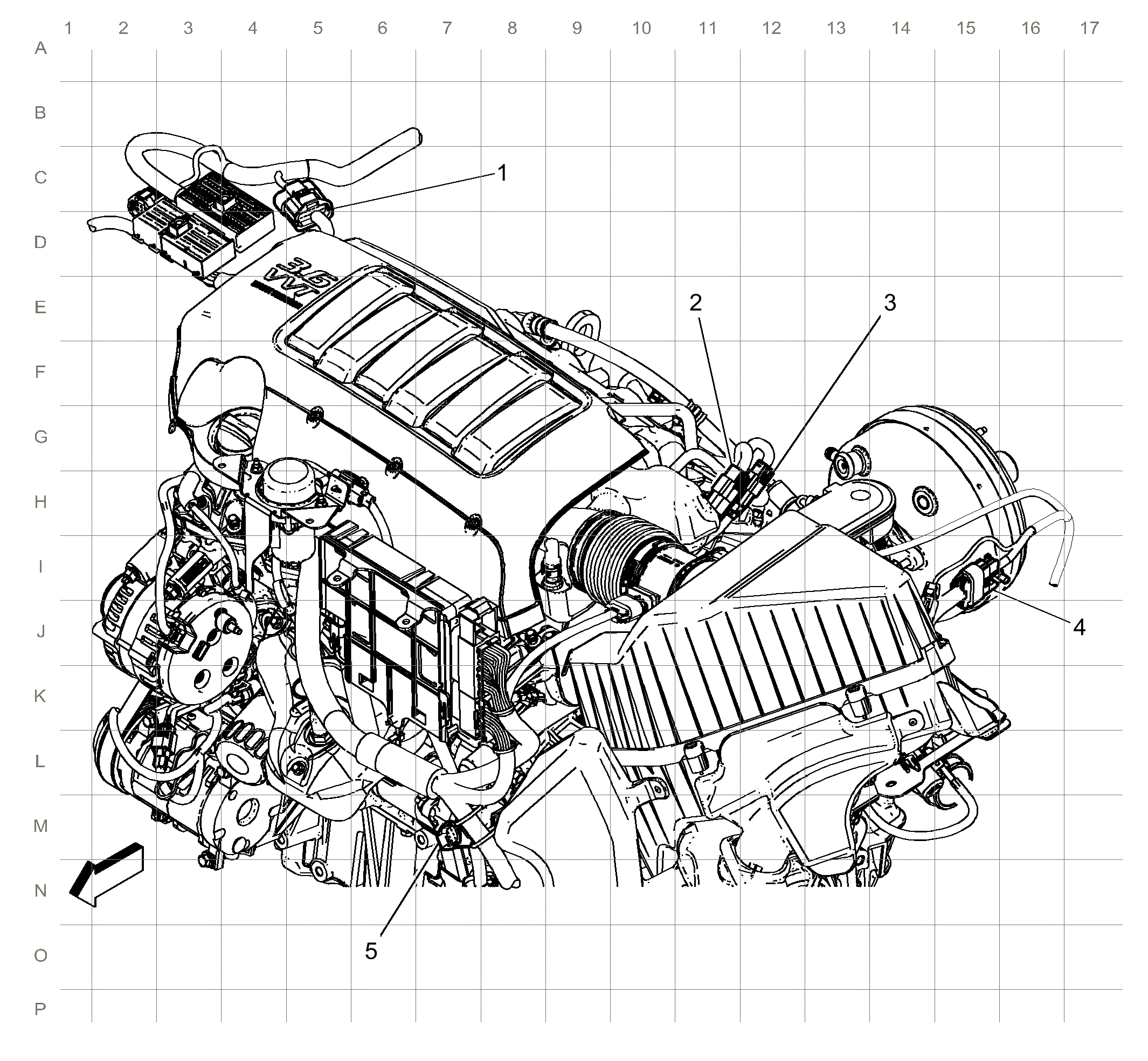

Fig 1: Engine Compartment Harness Routing
GM2867749Courtesy of GENERAL MOTORS COMPANY
Items
1:  X100 X100 Body Harness to Engine Harness
2:  X161 X161 Engine Harness to Fuel Injector Bank 1 Harness
3:  X160 X160 Engine Harness to Fuel Injector Bank 2 Harness
4:  X111 X111 Engine Harness to Instrument Panel Harness
5:  X115 ((TSH or T26)) X115 Engine Harness to Forward Lamp Harness (TSH or T26)
