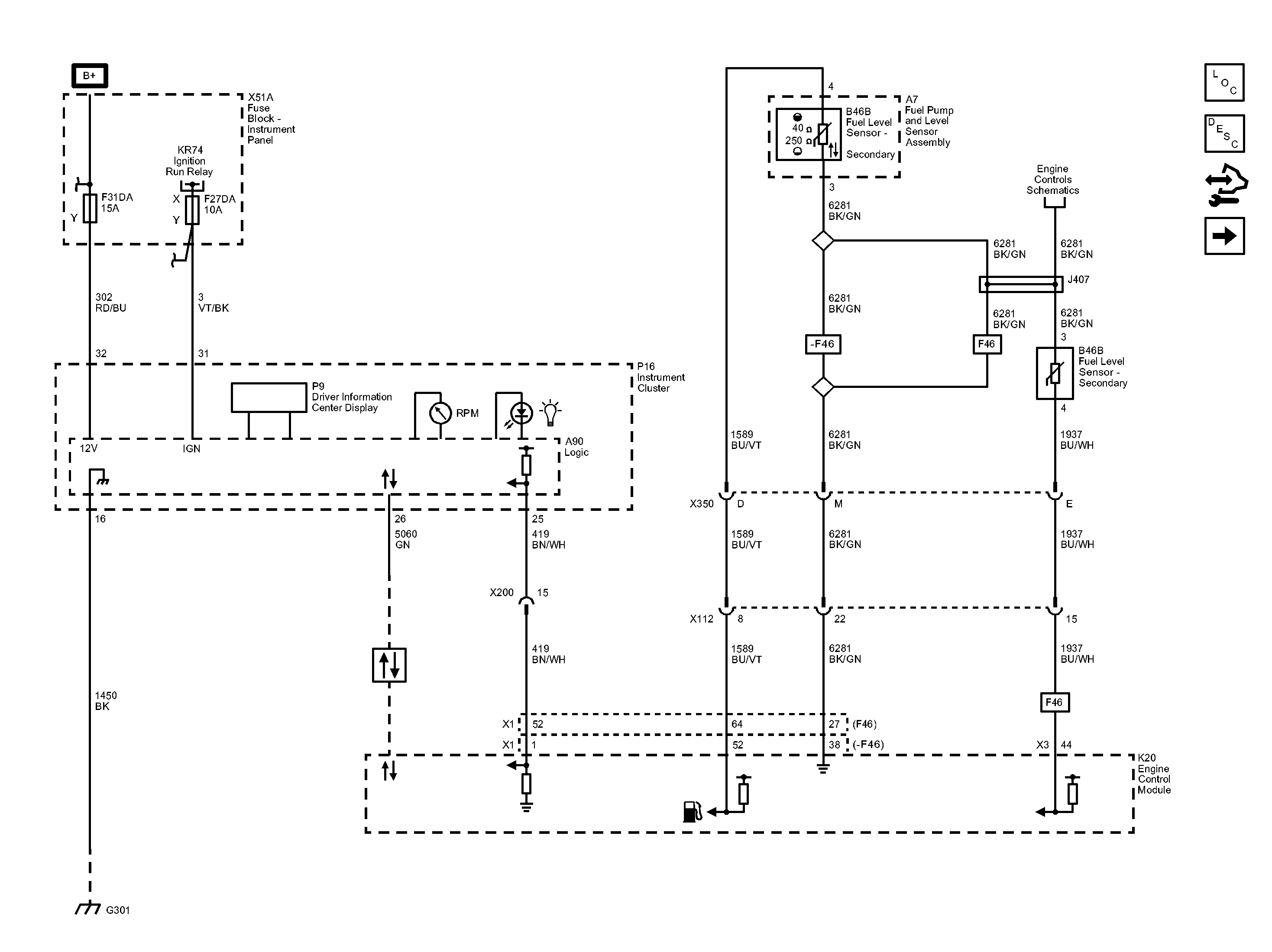

Home >> Buick >> 2013 >> Encore Leather, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic and Routing Diagrams >> Instrument Cluster Schematics >> Power, Ground, Serial Data And Gauges
