Rear Wheel Bearing And Hub Replacement (With Drum Brakes)

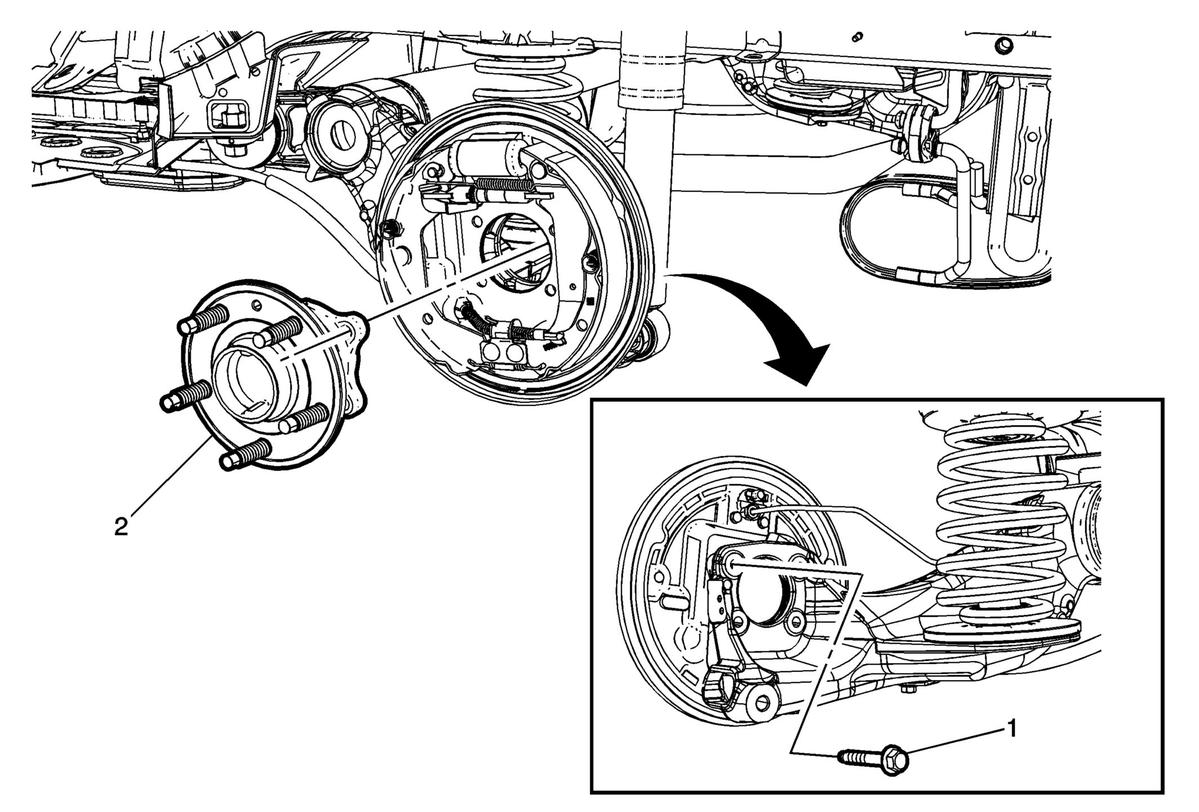

Fig 1: Rear Wheel Bearing And Hub (With Drum Brakes)

Courtesy of GENERAL MOTORS COMPANY

Rear Wheel Bearing and Hub Replacement (With Drum Brakes)

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the rear brake drum. Refer to Brake Drum Replacement . Remove the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
1	Rear Wheel Bearing Hub Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 60 (44 lb ft)
2	Rear Wheel Bearing and Hub Assembly

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the rear brake drum. Refer to Brake Drum Replacement .
Remove the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .

Rear Wheel Bearing Hub Bolts (Qty: 4)

CAUTION:

Tighten
60 (44 lb ft)

Rear Wheel Bearing and Hub Assembly
