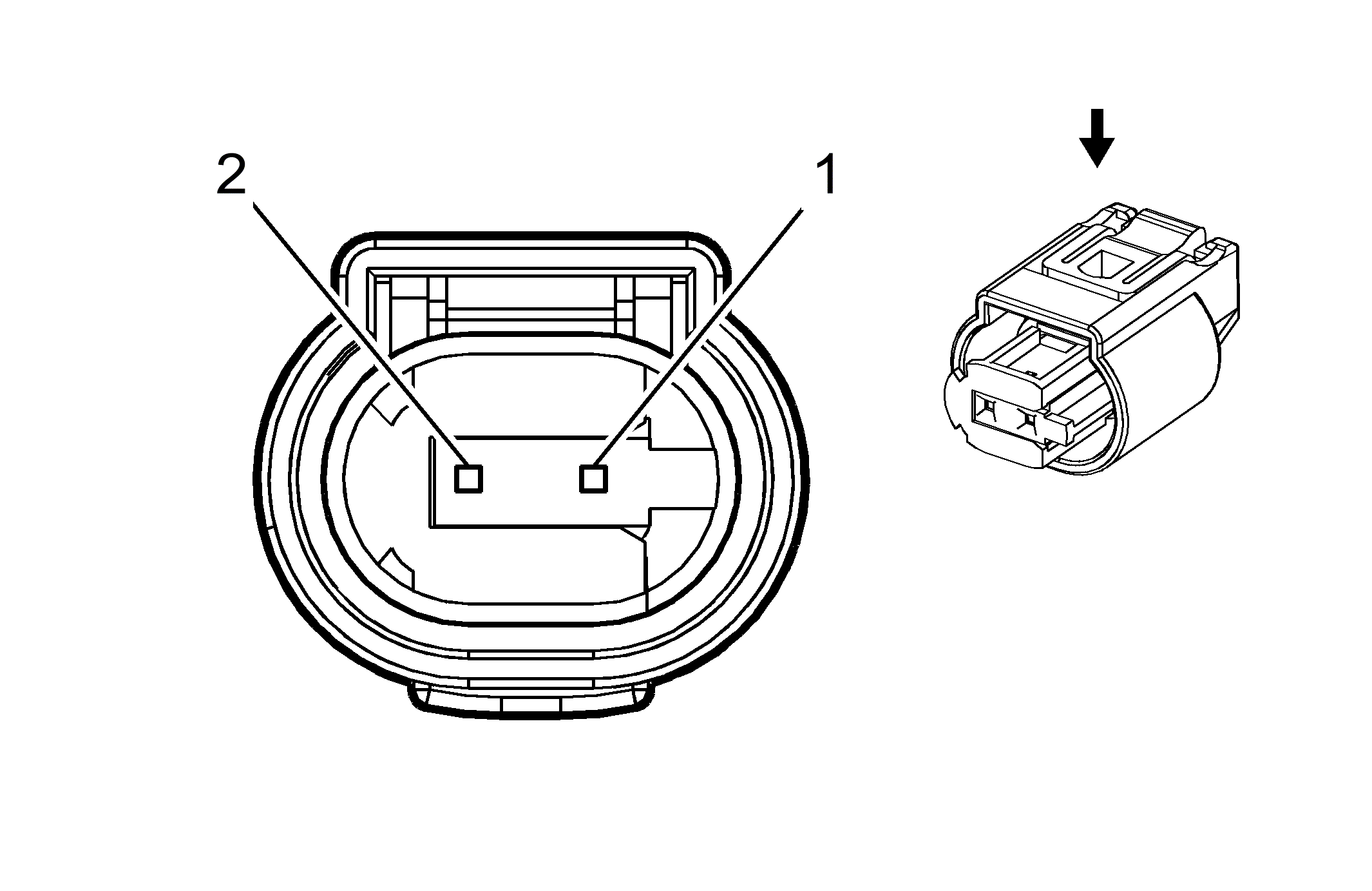

T10J Keyless Entry Antenna - Center Console Front (ATH)
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 1-0967644-1
- Service Connector: Pending
- Description: 2-Way F MQS Series (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: 962885-5/15
- Core/Insulation Crimp: 6/6
|
T10J Keyless Entry Antenna - Center Console Front (ATH)
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.5 |
BN/BK |
3552 |
Passive Start Interior Antenna 1 Signal Hi |
- |
| 2 |
0.5 |
WH |
3553 |
Passive Start Interior Antenna 1 Signal Lo |
- |
