P16 Instrument Cluster

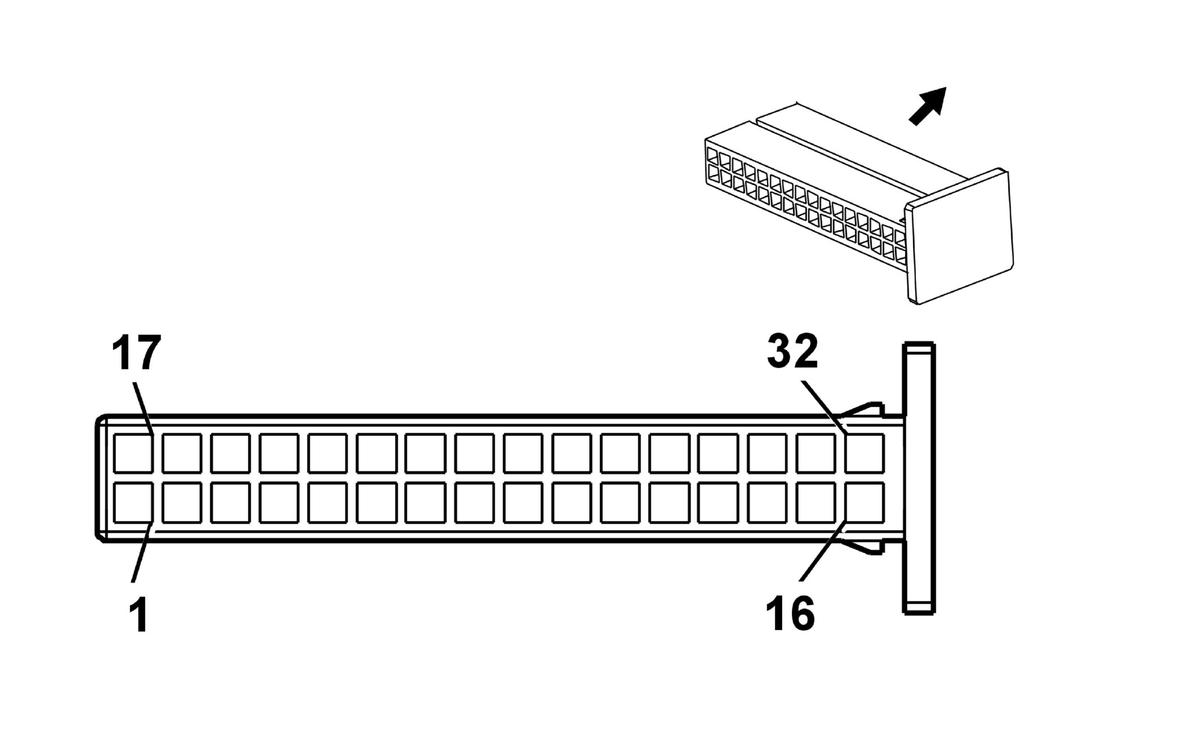

GM1990503
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 968265-1
  • Service Connector: 88988405
  • Description: 32-Way F 0.64 Quadlock Series (BK)
 Terminal Part Information
  • Terminated Lead: 13575584
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 928999-5/15
  • Core/Insulation Crimp: J/J
P16 Instrument Cluster

Pin Size Color Circuit Function Option
1-8 - - - Not Used -
9 0.5 BK/BN 897 Low Reference -
10 0.5 GN/WH 1358 Driver Information Center Switch Signal -
11 0.5 BK/BU 61 Outside Ambient Temperature Sensor Low Reference -
12 0.5 BU/GY 636 Outside Ambient Air Temperature Sensor Signal -
13-15 - - - Not Used -
16 0.5 BK 1650 Ground -
17-24 - - - Not Used -
25 0.5 BN/WH 419 Check Engine Indicator Control -
26 0.5 GN 5060 Low Speed GMLAN Serial Data -
27 0.5 GN 5060 Low Speed GMLAN Serial Data -
28 0.5 GY/BU 893 Driver Information Center Select Menu Switch Signal -
29 0.5 VT 185 Low Washer Fluid Indicator Control -
30 - - - Not Used -
31 0.5 VT/GN 39 Run/Crank Ignition 1 Voltage -
32 0.5 RD/GN 502 Battery Positive Voltage -
