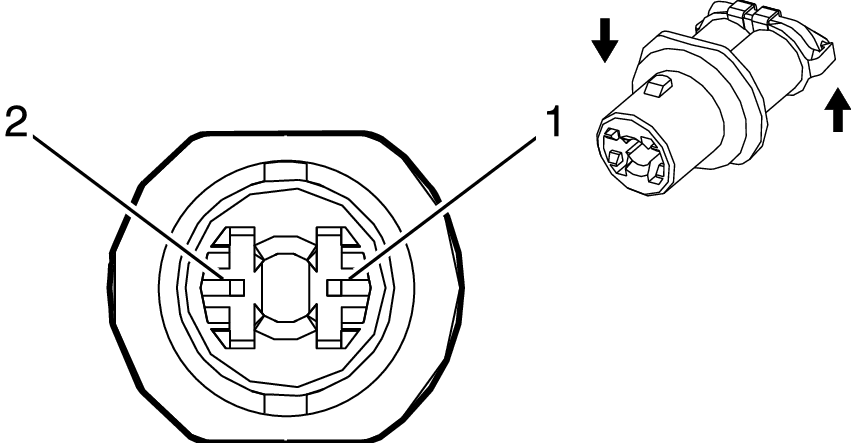

E7R License Plate Lamp - Right
Connector Part Information
- Harness Type: Rear Bumper
- OEM Connector: 15345129
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Lamp Socket, Sealed (BN)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: No Tool Required
- Diagnostic Test Probe: No Tool Required
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
E7R License Plate Lamp - Right
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.5 |
GN/YE |
6846 |
Rear License Lamp Supply Voltage |
- |
| 2 |
0.5 |
BK |
2550 |
Ground |
- |
