B55 Hood Ajar Switch

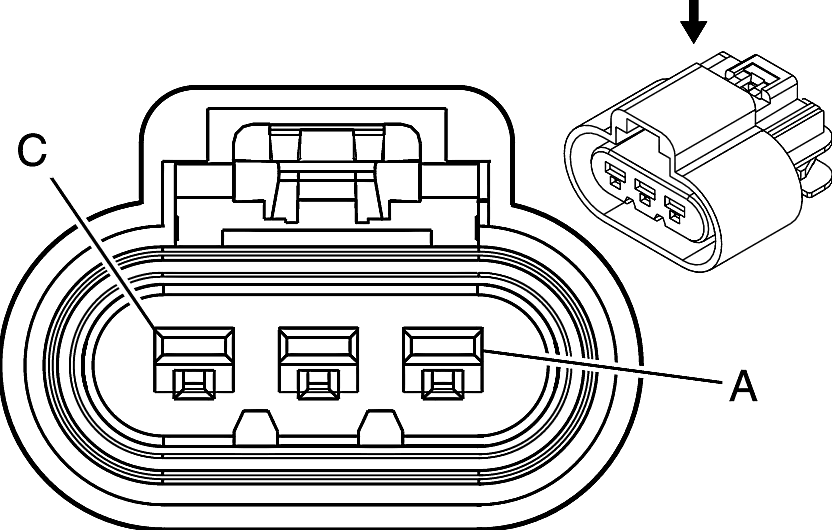

GM1542760
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 19153104
  • Service Connector: Pending
  • Description: 3-Way F GT 150 Series, Sealed (BK)
 Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/1
B55 Hood Ajar Switch

Pin Size Color Circuit Function Option
A - - - Not Used -
B 0.5 BN/GN 109 Hood Ajar Switch Signal -
C 0.5 BK 1350 Ground -
