Audible Warnings

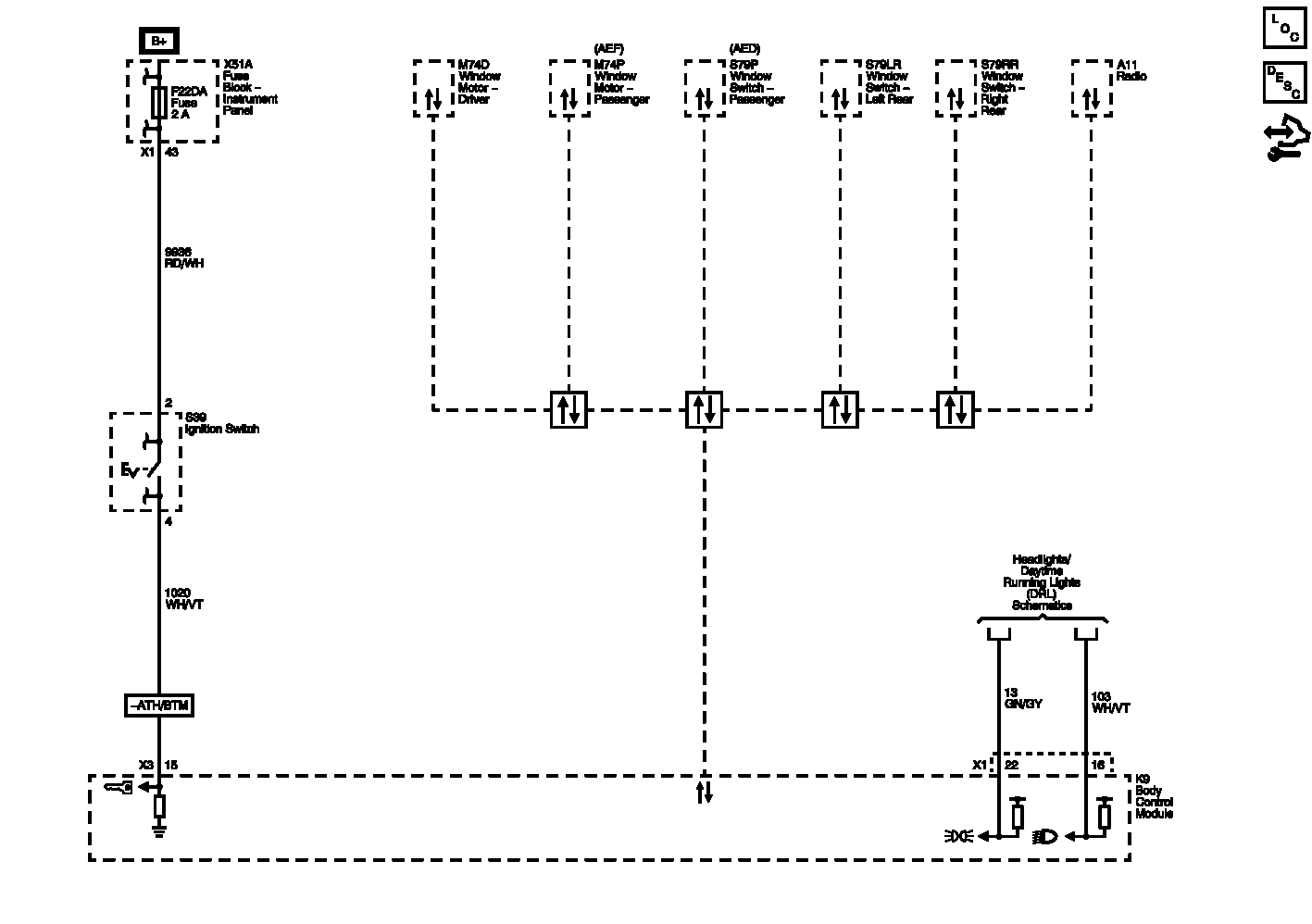

Fig 1: Audible Warnings Wiring Schematic

GM2689683

Courtesy of GENERAL MOTORS COMPANY
