28. Low and Reverse and 1-2-3-4 Clutch Housing Assemble (6T40/45/50)




Low and Reverse and 1-2-3-4 Clutch Housing Assemble (6T40/45/50)

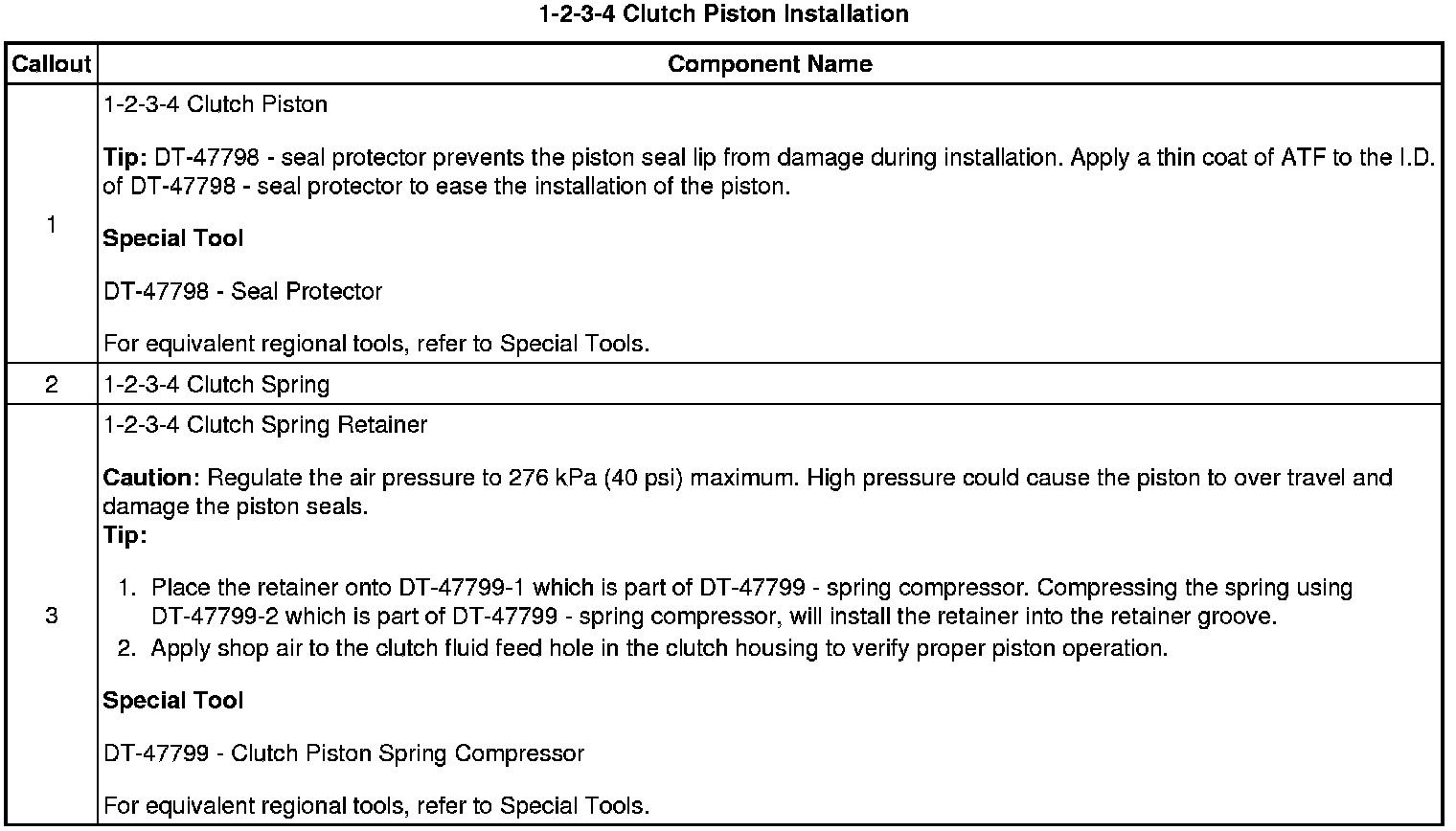

1-2-3-4 Clutch Piston Installation

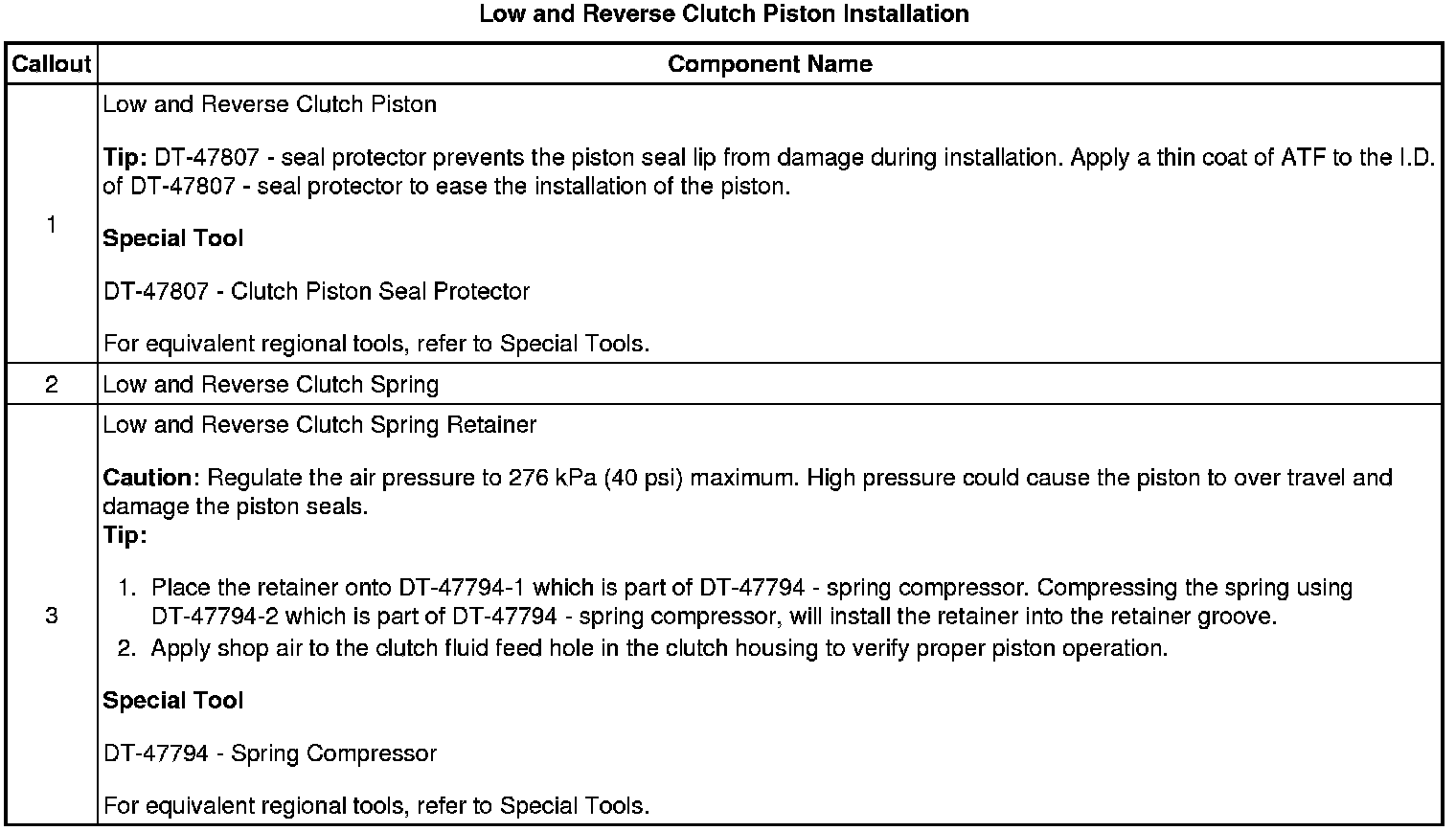

Low and Reverse Clutch Piston Installation
