Side Impact Sensor - Right Front




Passenger Compartment/Roof Component Views

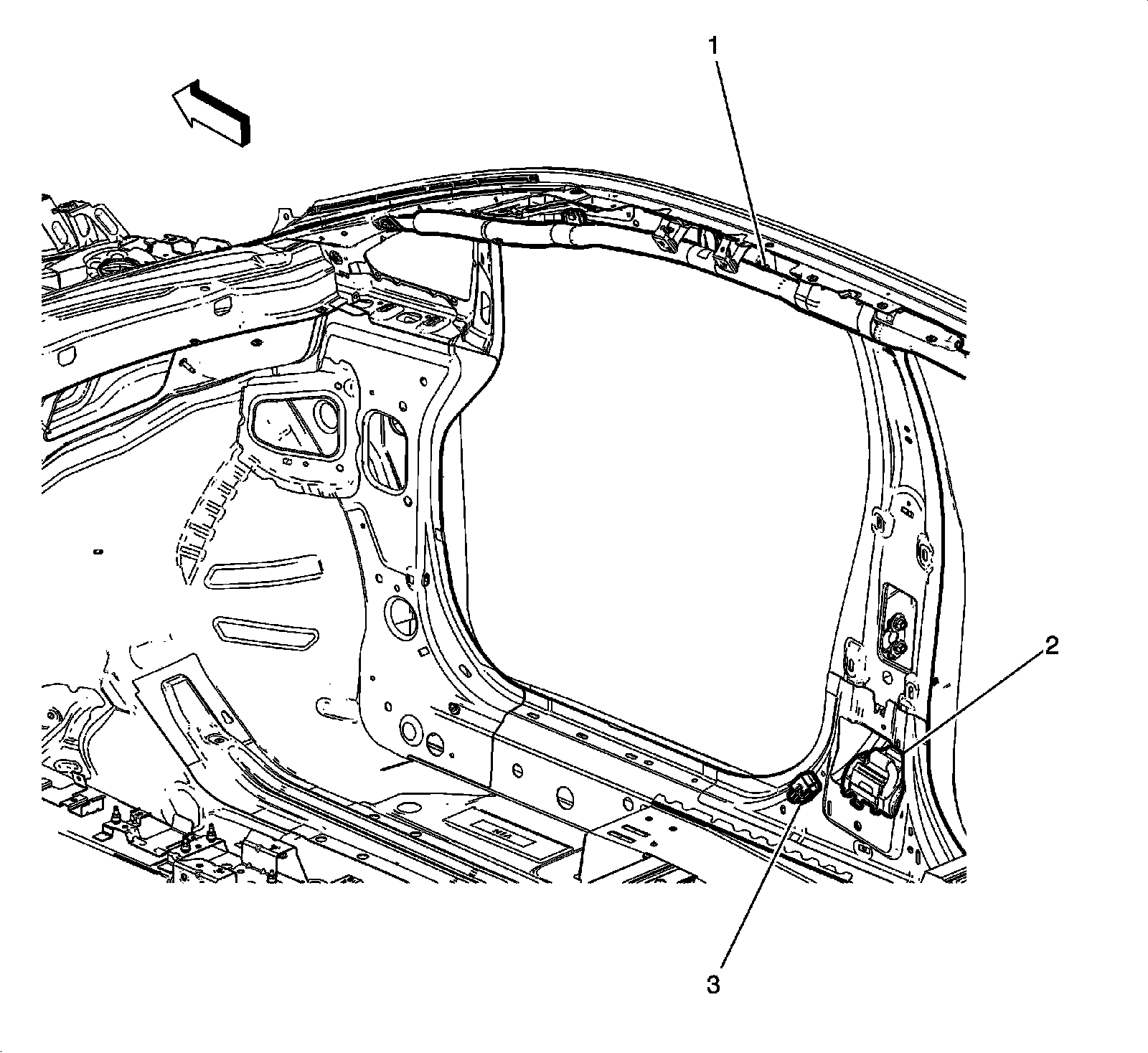

Right Front of Passenger Compartment Components





1 - F105R Roof Rail Air Bag - Right

2 - F112P Seat Belt Retractor Pretensioner - Passenger

3 - B63RF Side Impact Sensor - Right Front
