Rear Compartment Lid Harness Routing

Harness Routing Views

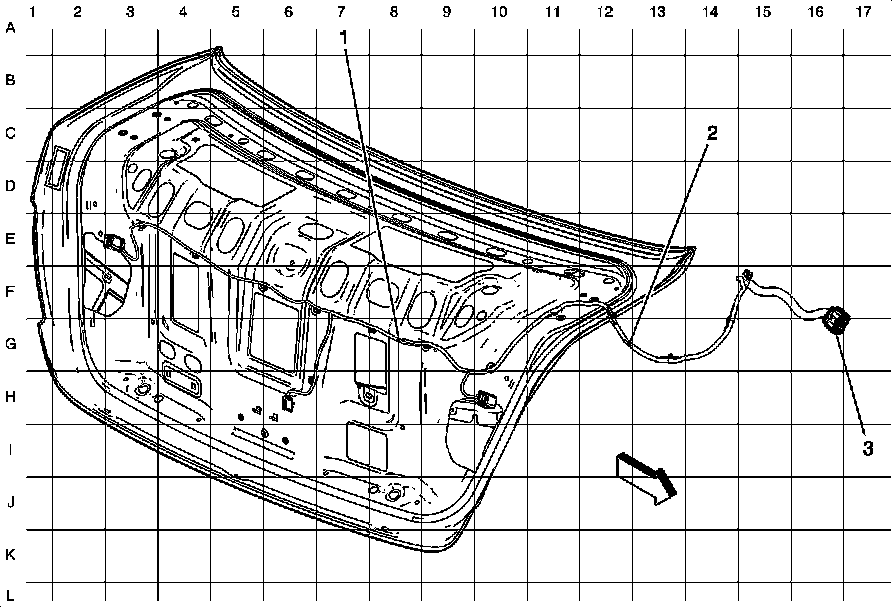

Rear Compartment Lid Harness Routing

1 - J901

2 - J900

3 - X900
