Left of Luggage Compartment Harness Routing

Harness Routing Views

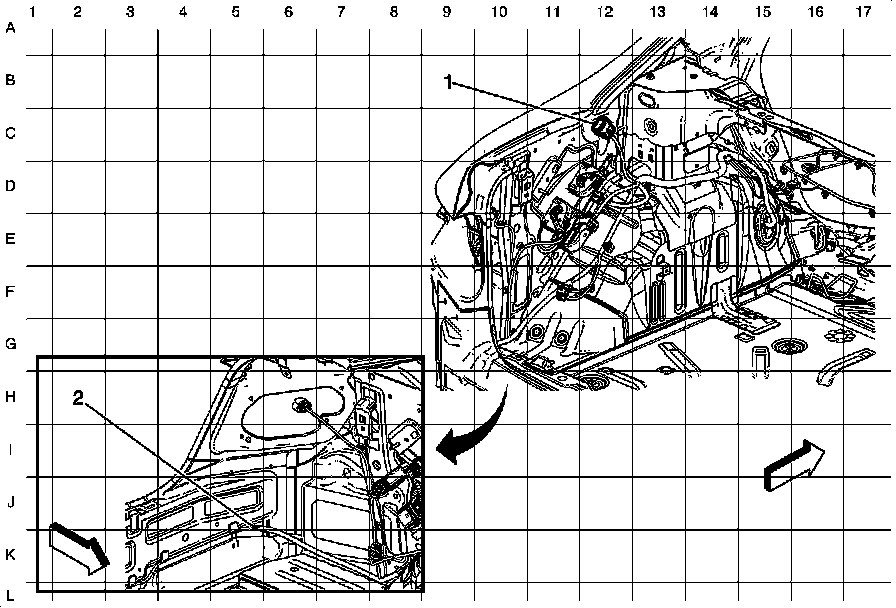

Left of Luggage Compartment Harness Routing

1 - X900

2 - J401
