Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounds By Number >> G200 - G299 >> G202

G202

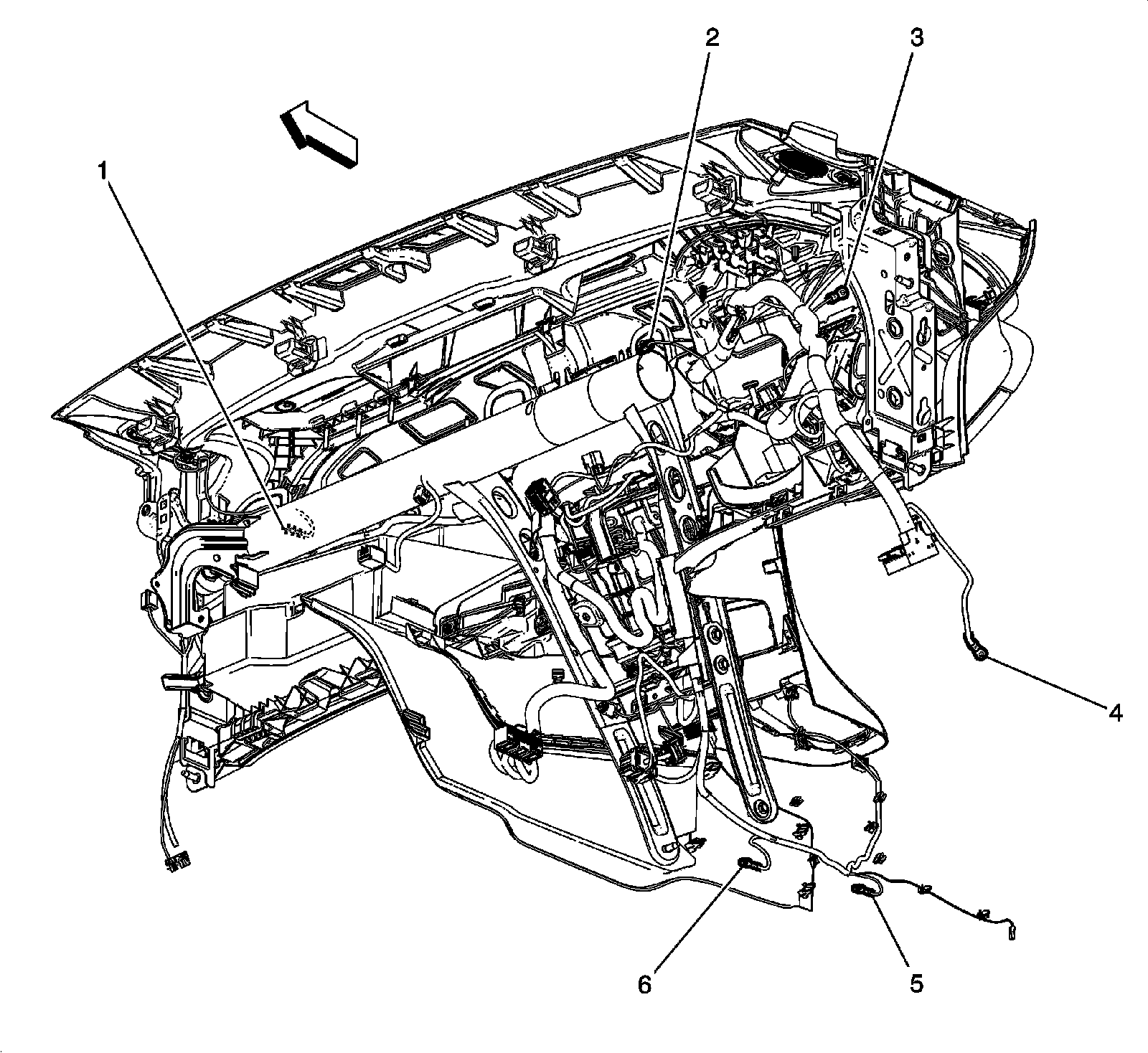

Ground Views

G201, G202, G203, G204, G303, and G305





1 - G204

2 - G202

3 - G203

4 - G201

5 - G303

6 - G305
