Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounds By Number >> G100 - G199 >> G106

G106

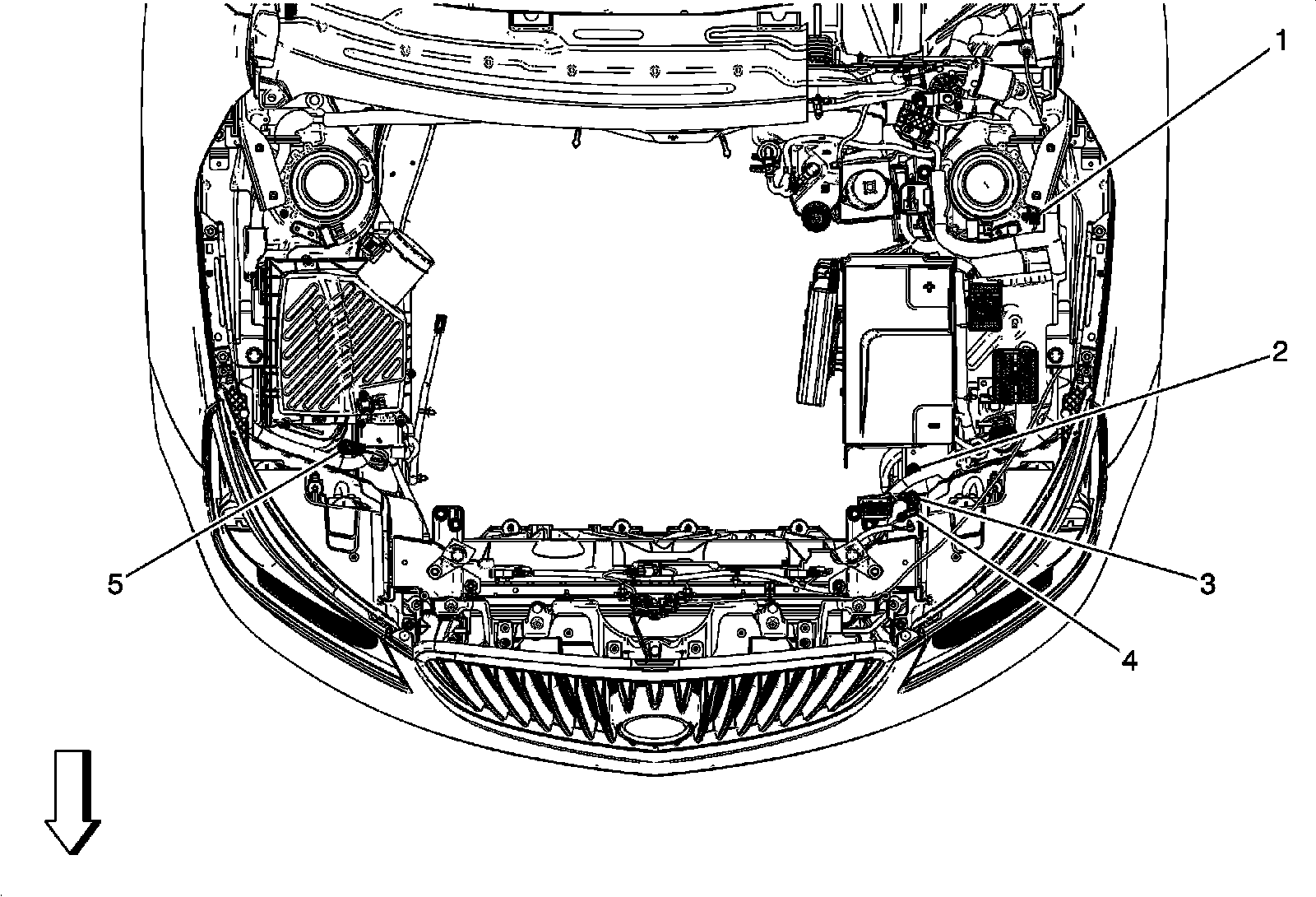

Ground Views

G101, G102, G103, G106, and G110





1 - G110

2 - G103

3 - G106

4 - G101

5 - G102
