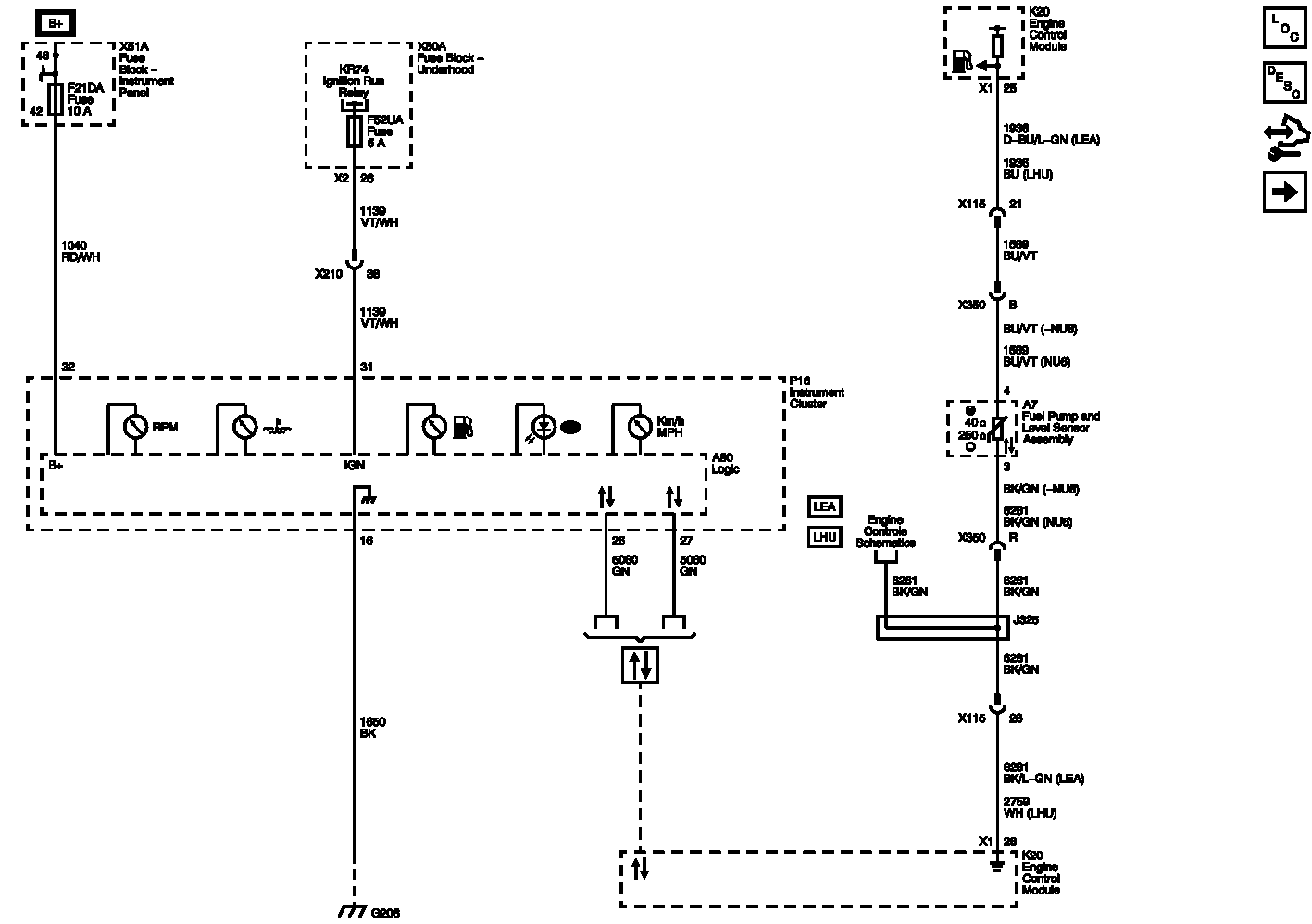

Home >> Buick >> 2012 >> Regal Turbo, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Gauges Wiring Schematics
