Backup Lamp Switch Replacement

WARNING: This page is about a different variant/trim than selected.

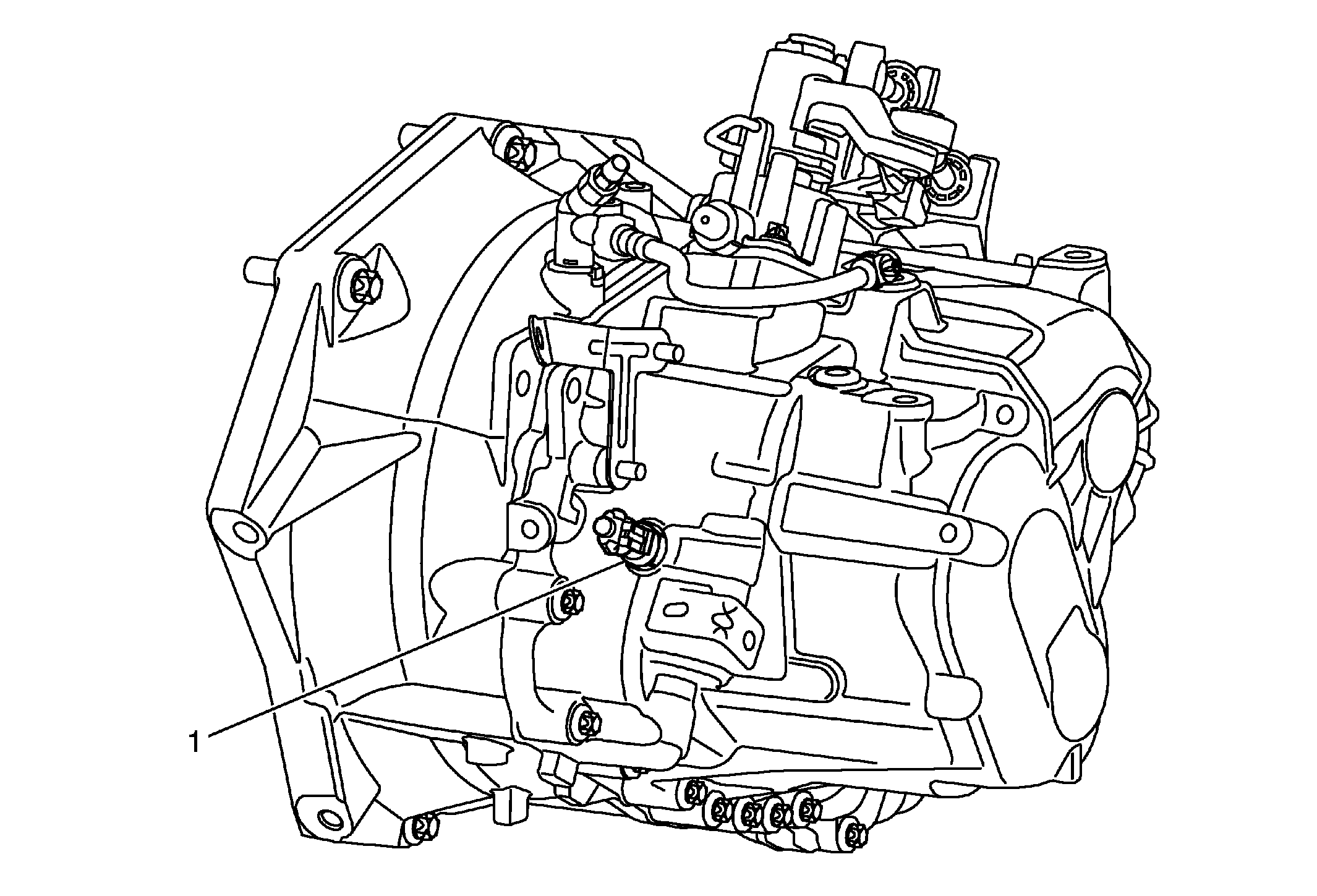

Fig 1: Backup Lamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine shield. Refer to Engine Shield Replacement.
1	Backup Lamp Switch Procedure Remove electrical connector. Install NEW seal ring. Tighten 28 N.m (21 lb ft)

Callout

Component Name

Preliminary Procedure
Remove the engine shield. Refer to Engine Shield Replacement.

Backup Lamp Switch

Procedure

Tighten
28 N.m (21 lb ft)
