Ignition and Start Switch Replacement (Without BTM)

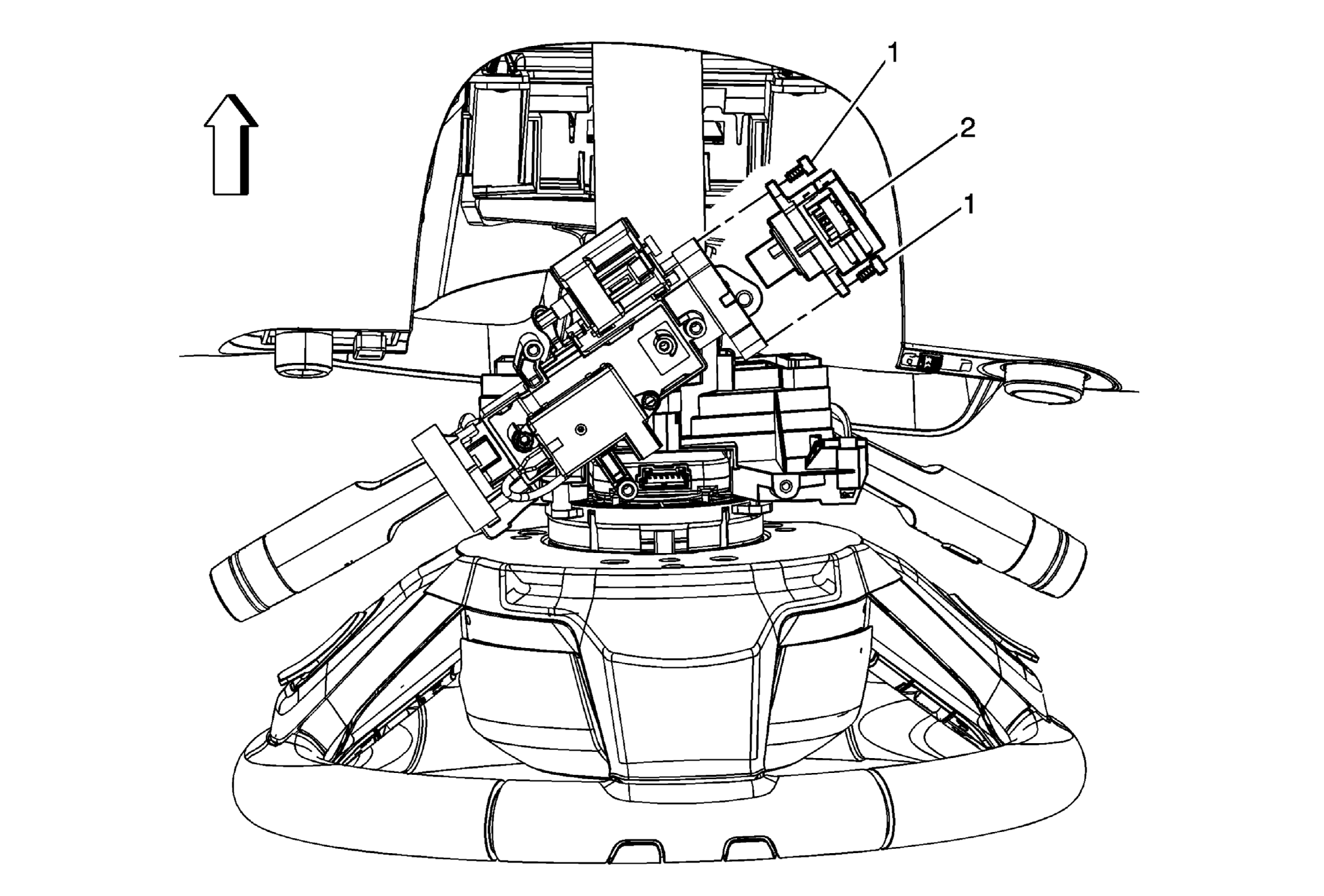

Fig 1: Ignition & Start Switch (Without BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Ignition and Start Switch Procedure Disconnect the ignition and start switch electrical connector.

Callout

Component Name

Preliminary Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Ignition and Start Switch Bolt (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Ignition and Start Switch
Procedure
Disconnect the ignition and start switch electrical connector.
