Rear Seat Cushion Replacement

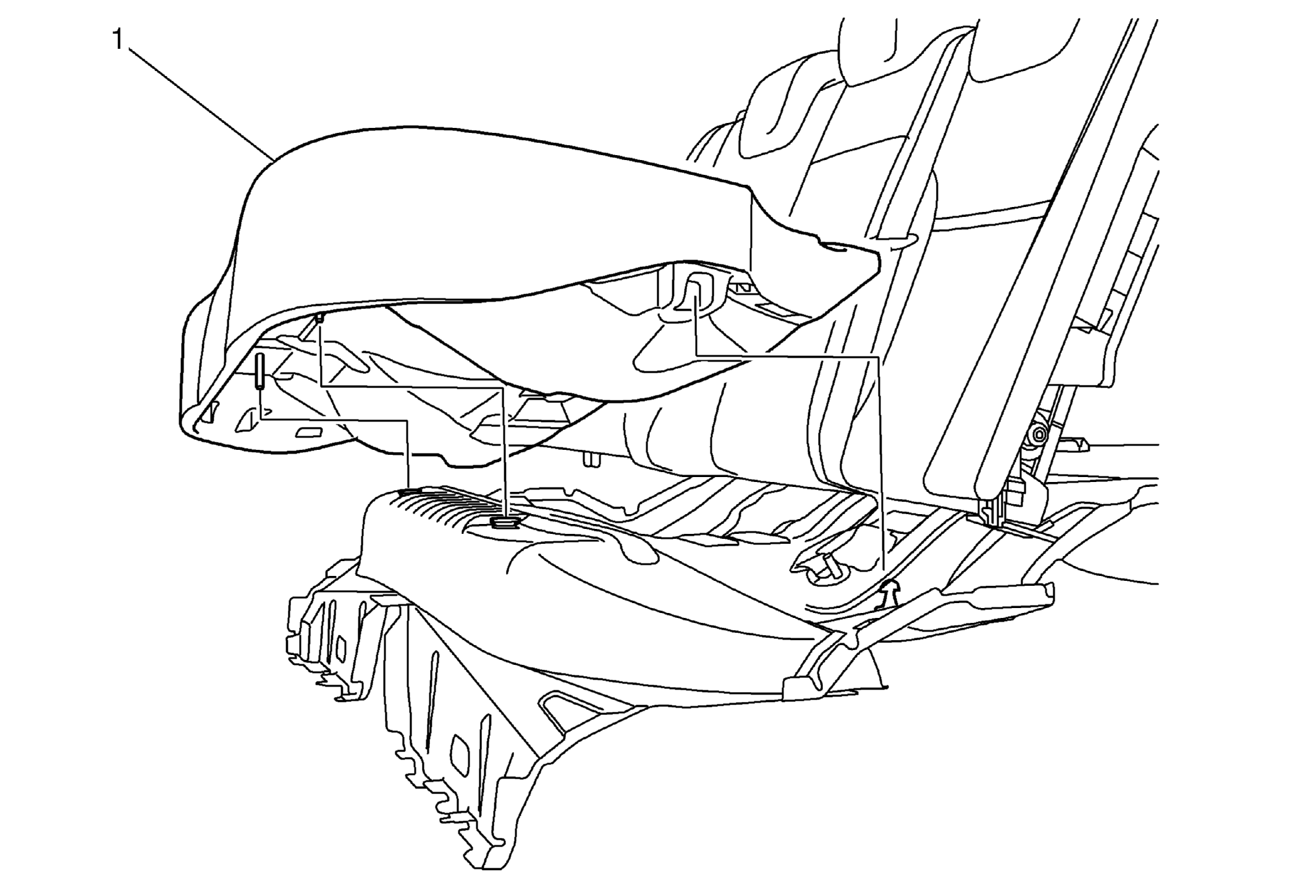

Fig 1: Rear Seat Cushion
GM2019845Courtesy of GENERAL MOTORS COMPANY
Rear Seat Cushion Replacement

Callout Component Name
1 Rear Seat Cushion

Procedure

  1. Pull up on the front of the rear seat to disengage the retainers.
  2. Pull out the rear seat of the rear retainer.
  3. Remove the rear seat center shoulder belt anchor fastener and route the belt through the seat bottom.
  4. Remove the rear seat.
