Sunshade Support Replacement

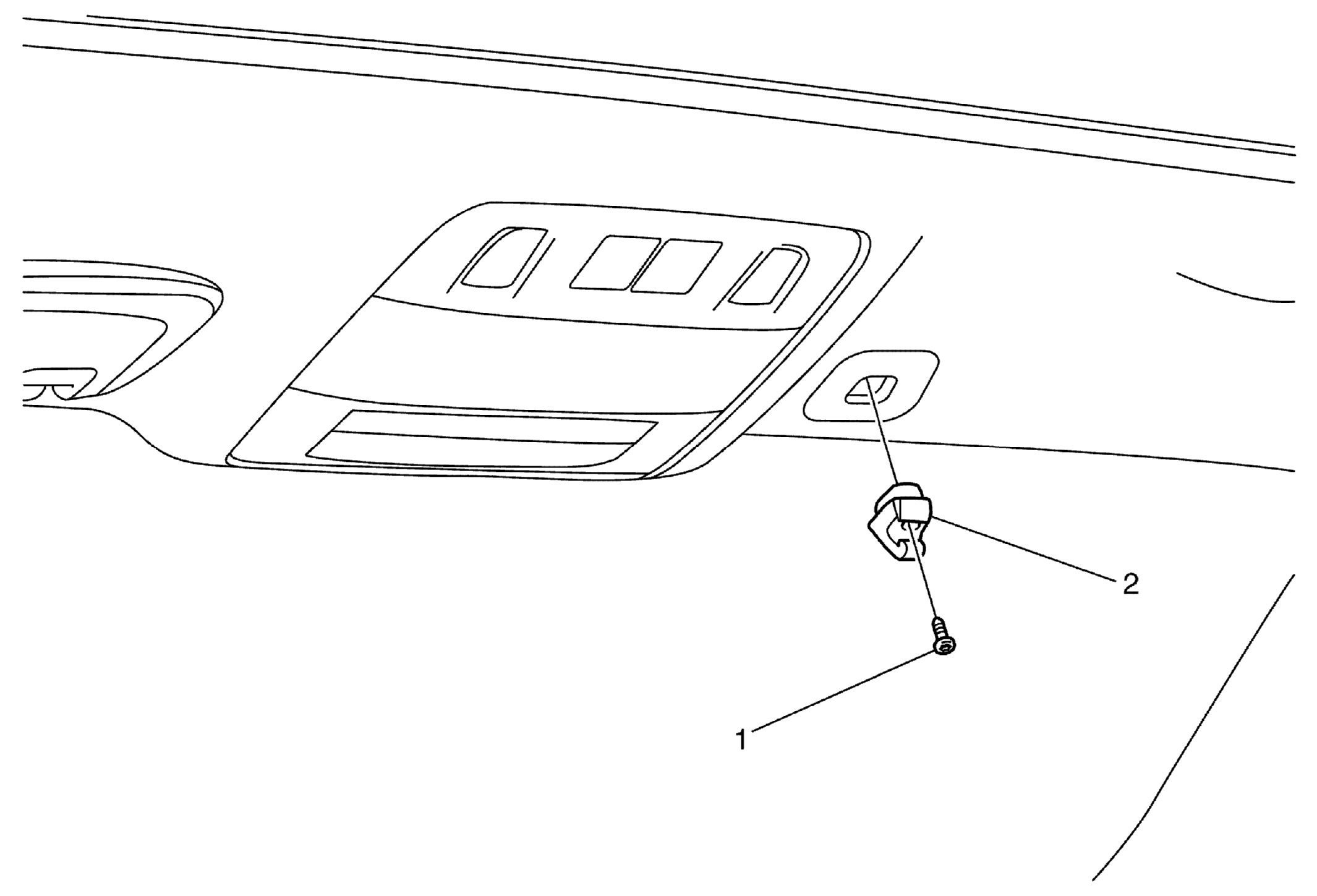

Fig 1: Sunshade Support
GM2019740Courtesy of GENERAL MOTORS COMPANY
Sunshade Support Replacement

Callout Component Name
1 Sunshade Support Fastener
CAUTION:

Refer to Fastener Caution .


Procedure
Pull cover downward to access fastener.
2 Sunshade Support
