Sunshade Replacement

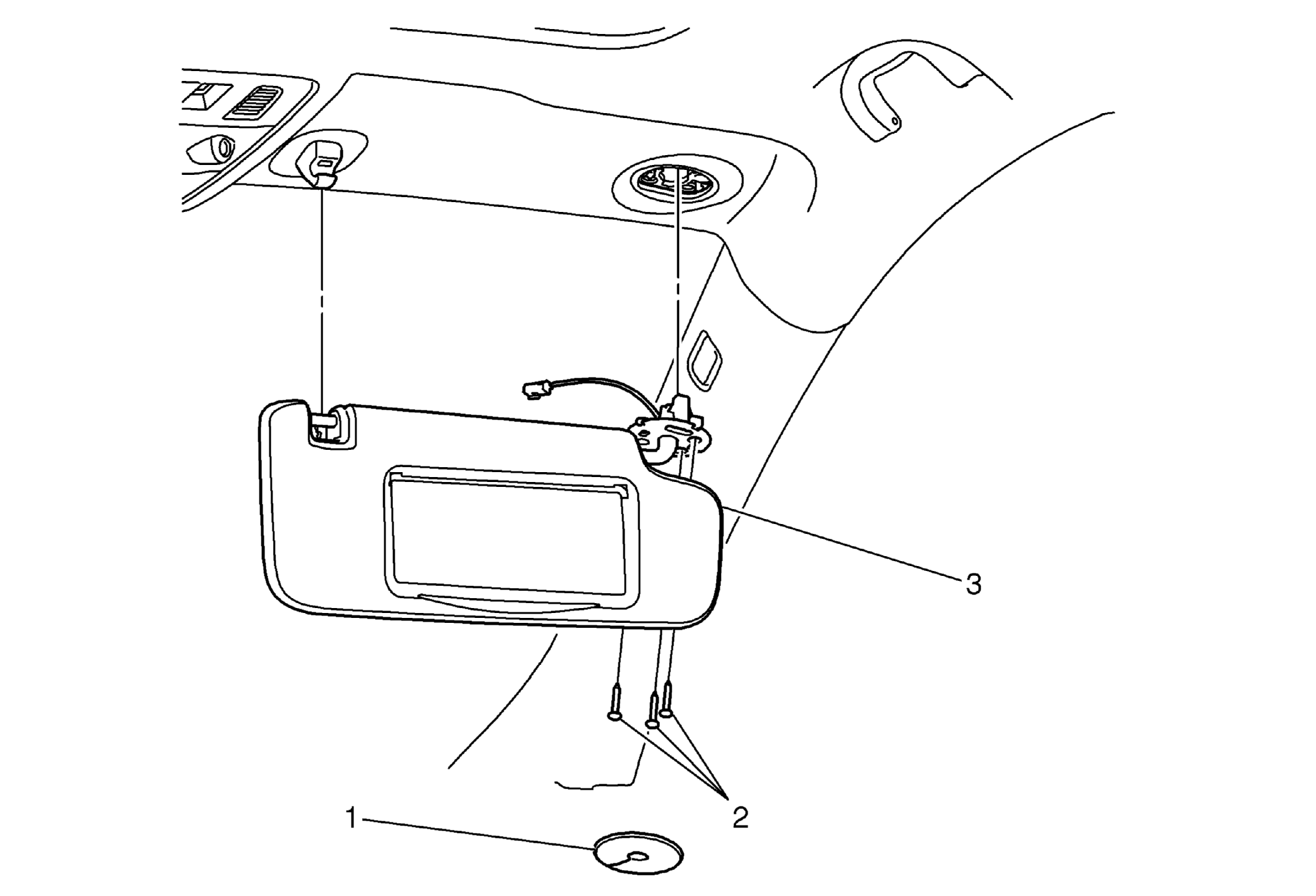

Fig 1: Sunshade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front of the headlining trim panel to access the sunshade electrical connector, if necessary.
1	Sunshade Support Fastener Cover
2	Sunshade Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Sunshade Assembly Procedure Disconnect the electrical connector. Remove the sunshade anchor from the roof by unsnapping, if needed.
