Roof Rail Front Assist Handle Replacement

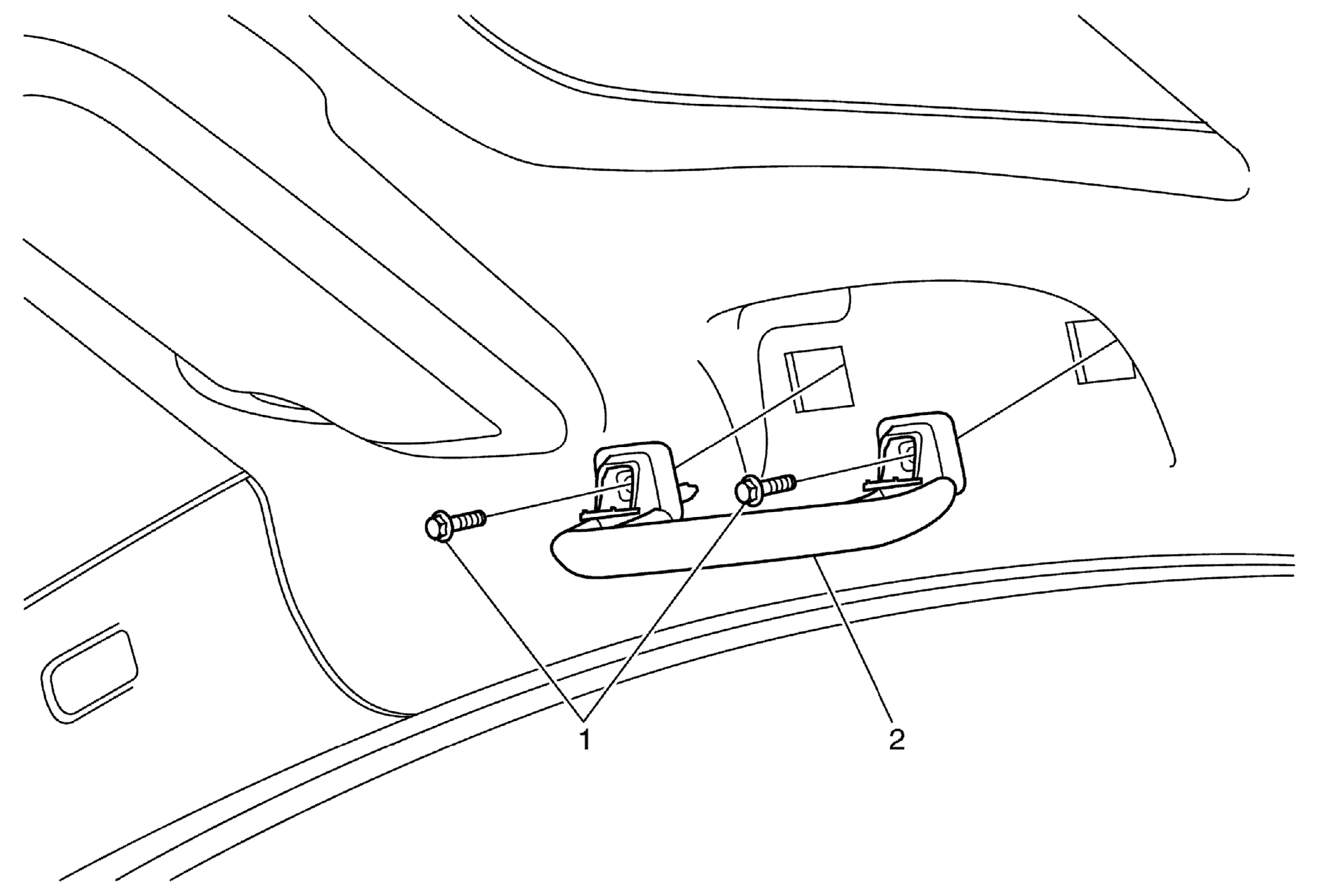

Fig 1: Roof Rail Front Assist Handle
GM2019776Courtesy of GENERAL MOTORS COMPANY
Roof Rail Front Assist Handle Replacement

Callout Component Name
1 Roof Rail Front Assist Handle Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Fold the assist handle downward and hold.
  2. Use a small flat-bladed tool to release the cover to access the fastener.
2 Roof Rail Front Assist Handle
