Rear Compartment Lid Inner Panel Trim Replacement

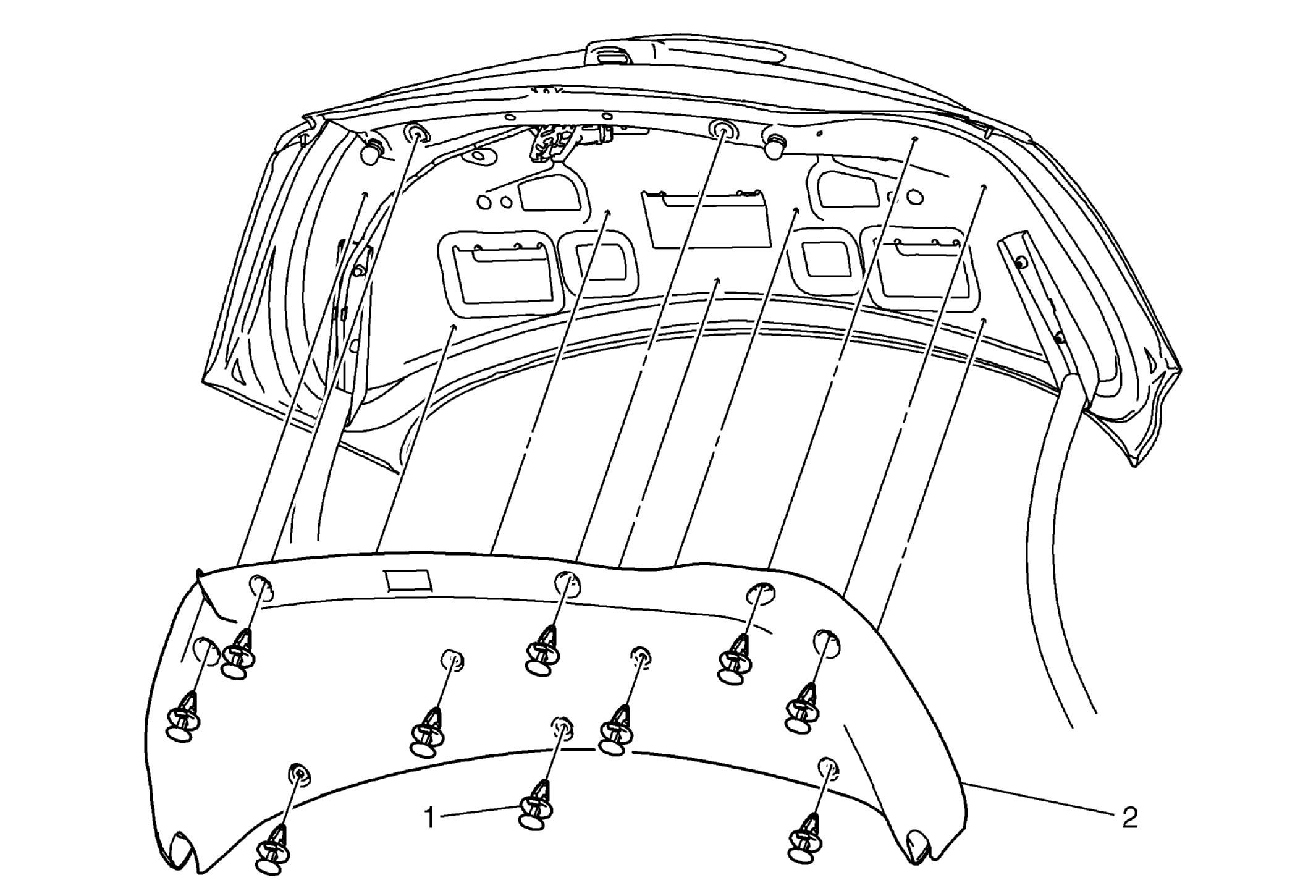

Fig 1: Rear Compartment Lid Inner Panel Trim

Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lid Inner Panel Trim Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid latch cover. Refer to Rear Compartment Lid Latch Cover Replacement .
1	Rear Compartment Lid Inner Panel Trim Retainer (Qty: 9)
2	Rear Compartment Lid Inner Panel Trim Procedure  Disengage the pull handle from the compartment lid, transfer handle if necessary.
