Body Lock Pillar Upper Trim Panel Replacement (Sedan)
Body Lock Pillar Upper Trim Panel Replacement (Sedan)

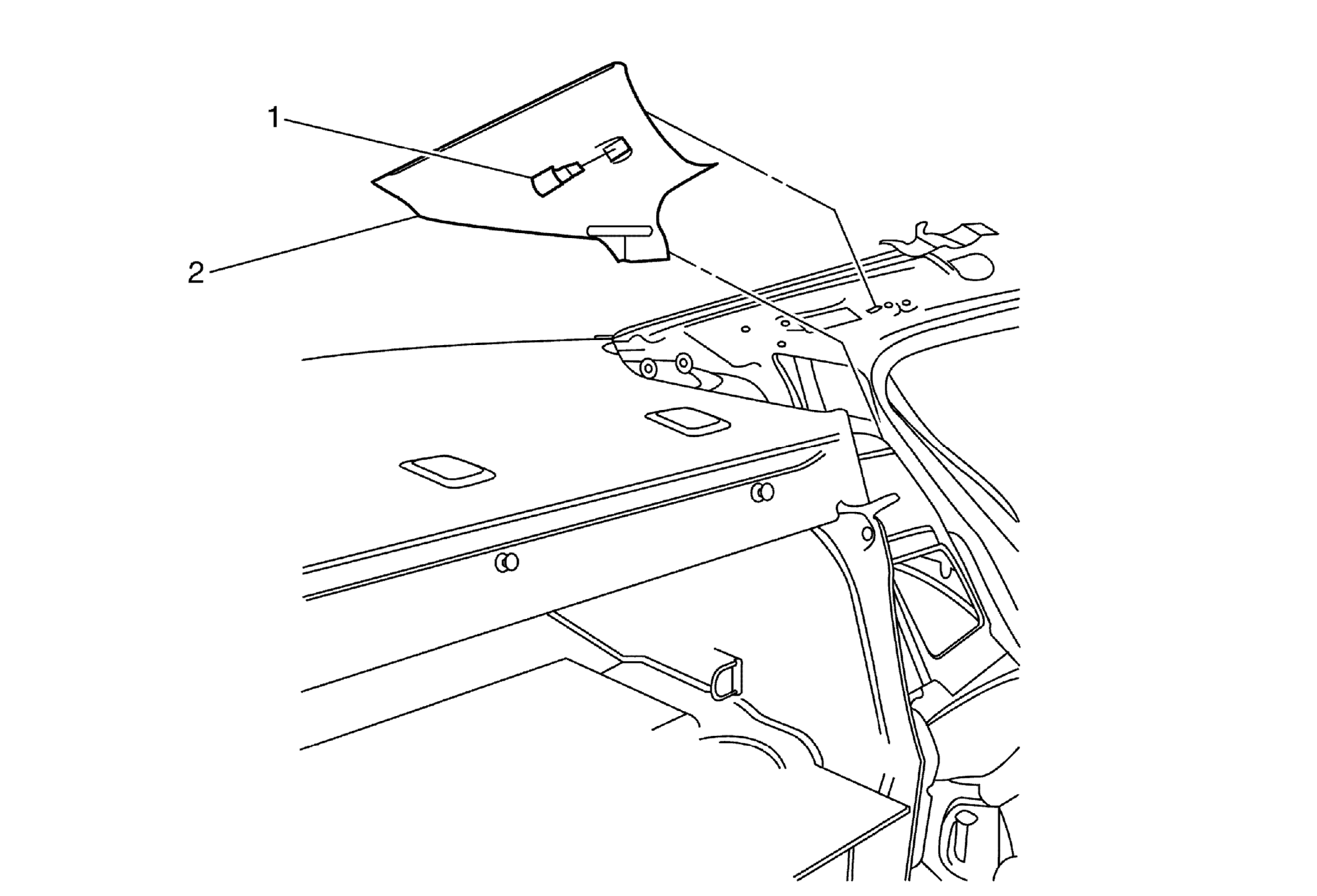

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . |
|
| 1 | Body Lock Pillar Upper Trim Panel Retainer TIP: Use a small flat-bladed tool to release the retainer from the body lock pillar upper trim panel. |
| 2 | Body Lock Pillar Upper Trim Panel |
