Instrument Panel Lower Trim Panel Insulator Replacement

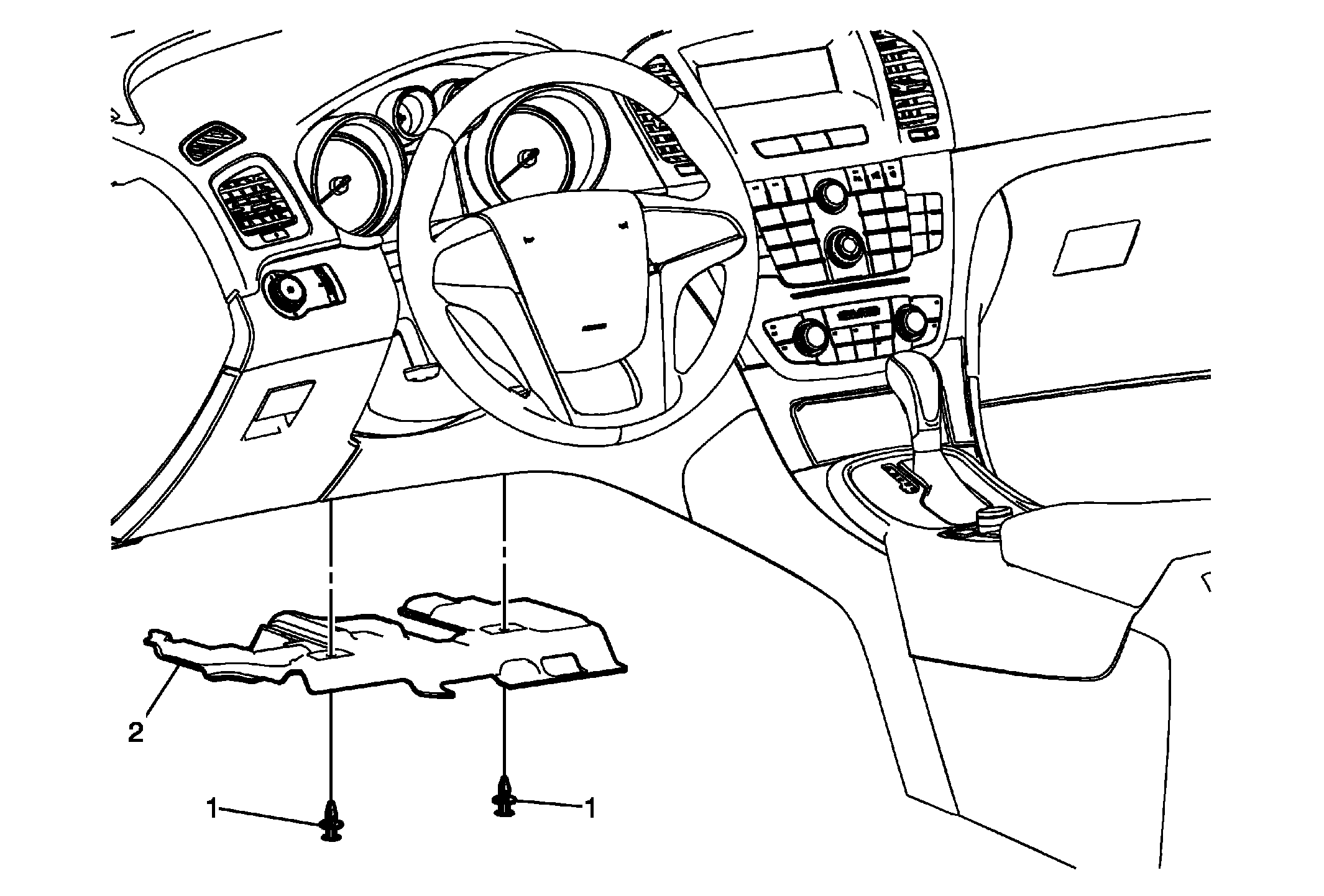

Fig 1: Instrument Panel Lower Trim Panel Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Lower Trim Panel Insulator Push-Pin Fasteners (Qty: 2)
2	Instrument Panel Lower Trim Panel Insulator Procedures Flex the insulator panel enough to manipulate it out from beneath the instrument panel assembly. Disconnect the electrical connections, if applicable. When replacing the instrument panel lower trim panel insulator, transfer all necessary components.

Callout

Component Name

Instrument Panel Lower Trim Panel Insulator Push-Pin Fasteners (Qty: 2)

Instrument Panel Lower Trim Panel Insulator

Procedures

Flex the insulator panel enough to manipulate it out from beneath the instrument panel assembly.
Disconnect the electrical connections, if applicable.
When replacing the instrument panel lower trim panel insulator, transfer all necessary components.
