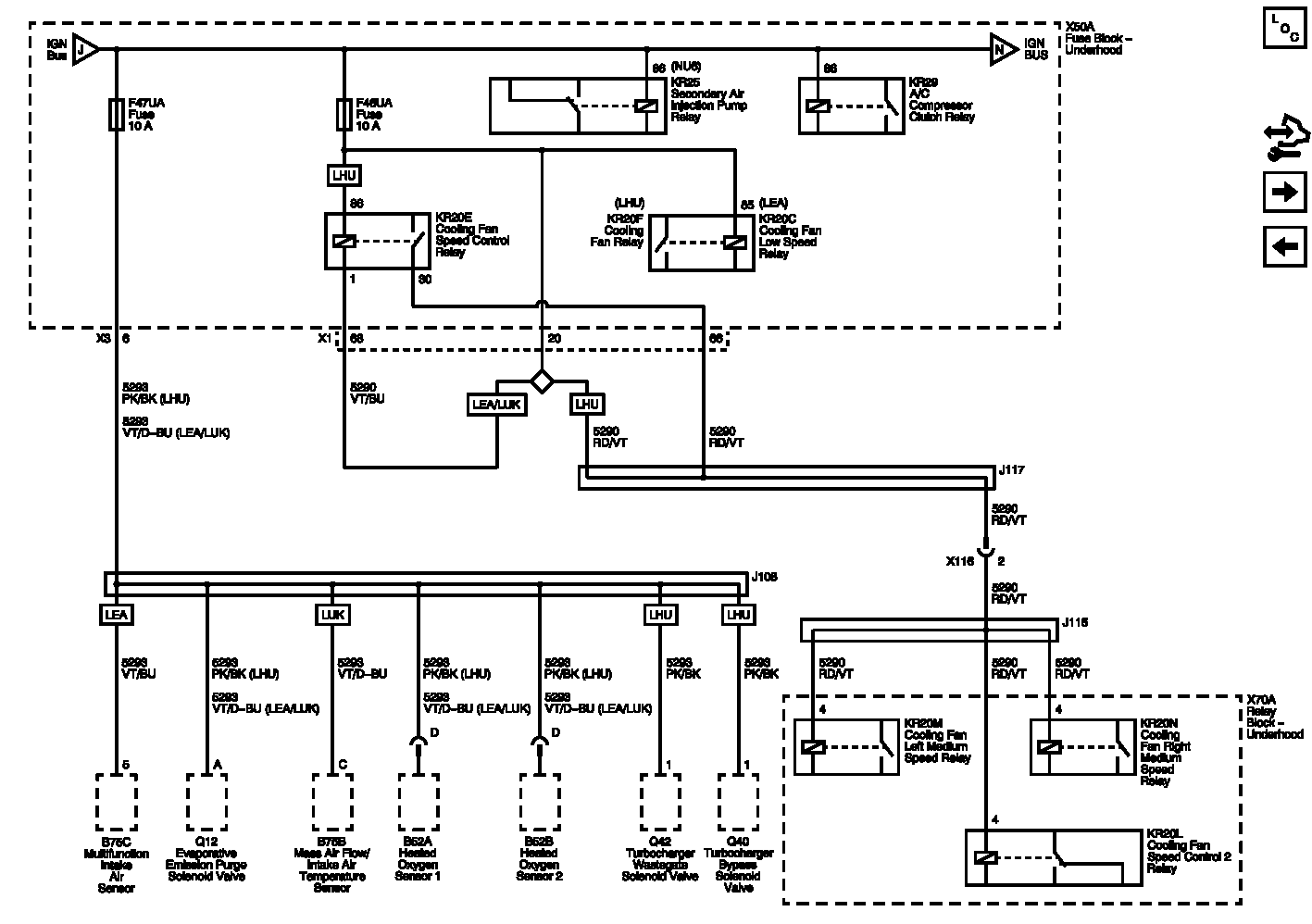

Home >> Buick >> 2012 >> Regal Turbo, Automatic Trans >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> F46UA and F47UA Fuses Wiring Schematics
