B+ Bus- X50A Fuse Block- Underhood (1 of 3) Wiring Schematics

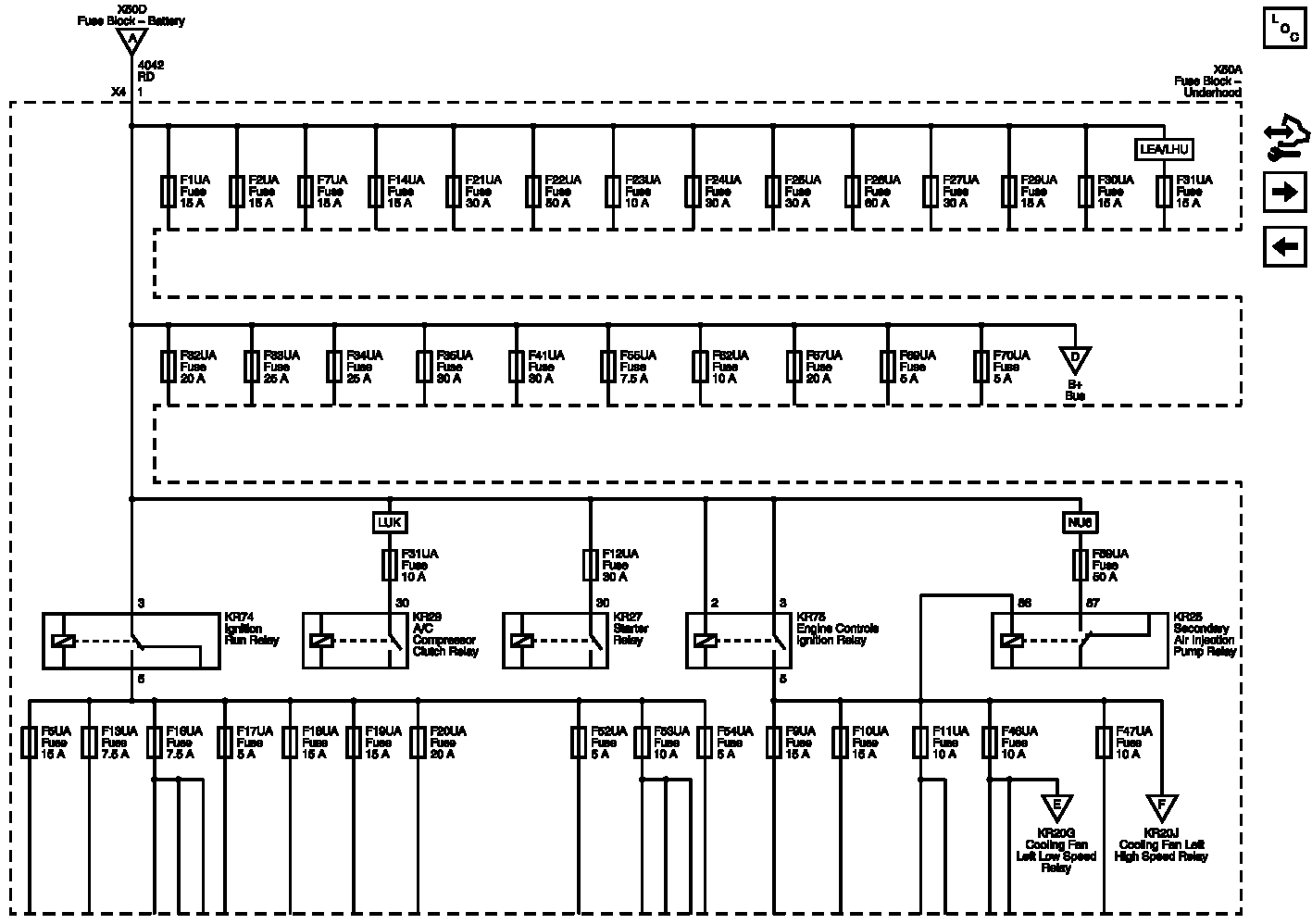

Fig 1: B+ Bus- X50A Fuse Block- Underhood (1 of 3) Wiring Schematic

GM2611757
