Body Harness Routing- Right Side of Passenger Compartment

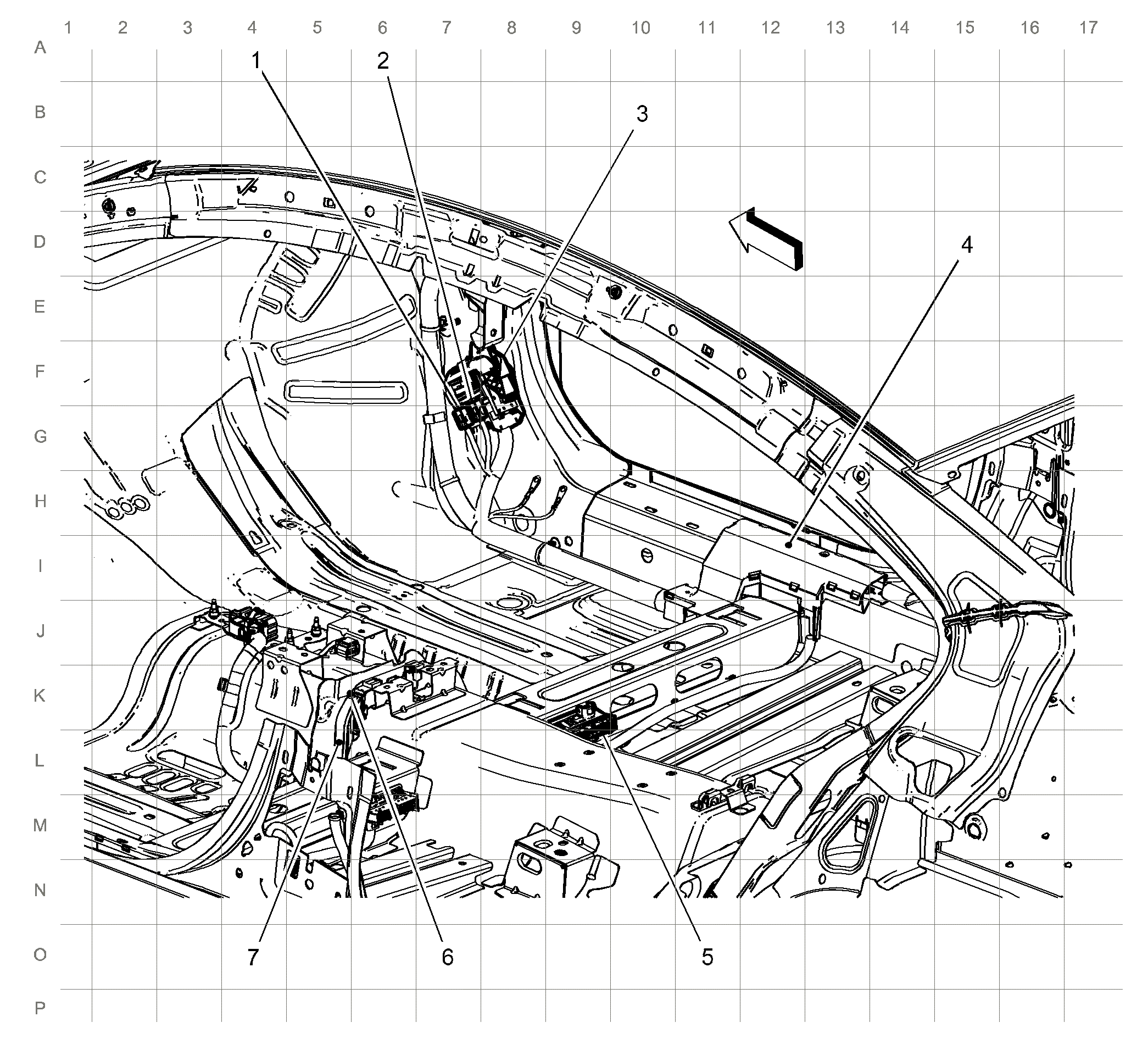

Fig 1: Body Harness Routing- Right Side of Passenger Compartment
GM2535443Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X222
2 X221
3 X220
4 J253
5 X320
6 J319, J352
7 J361
