Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Schematic Wiring Diagrams
>>
Harness Routing Views
>>
Body Harness Routing- Left Front of Vehicle
Body Harness Routing- Left Front of Vehicle

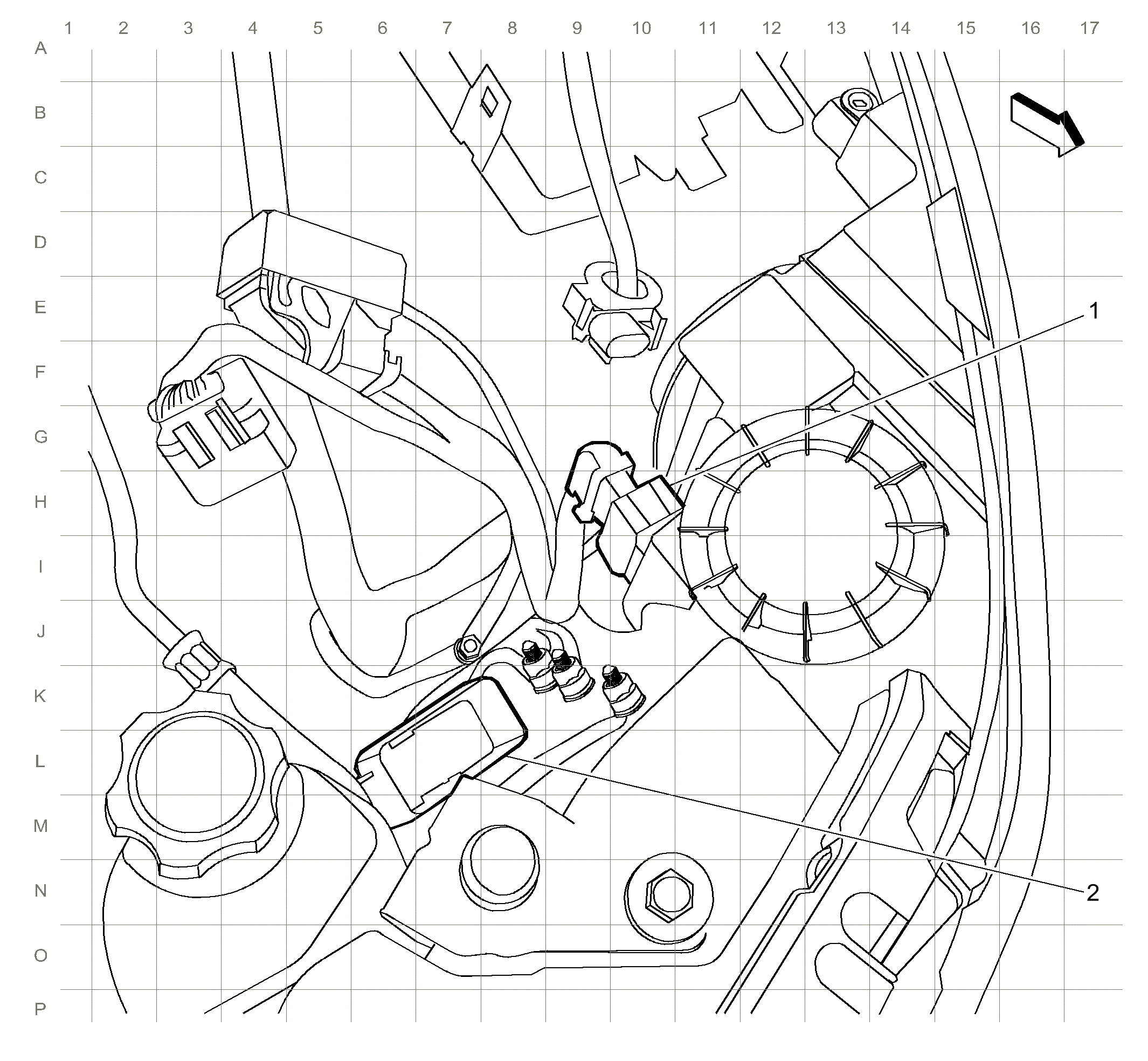

Fig 1: Body Wiring Harness Routing - Left Front of Vehicle
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
X110
2
X115
Courtesy of GENERAL MOTORS COMPANY
