G105, G108, and G109 (2 of 2) Wiring Schematics

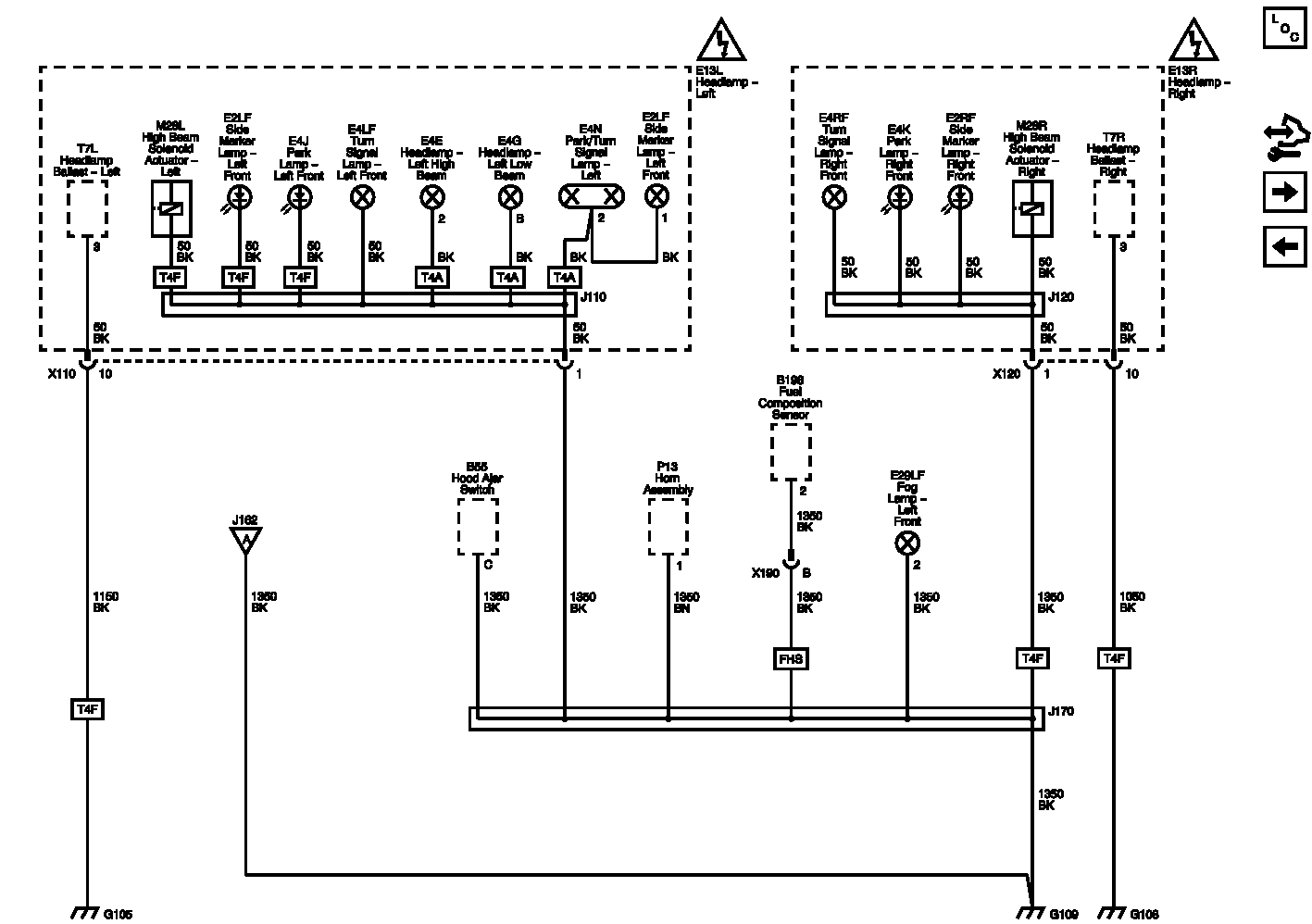

Fig 1: G105, G108, and G109 (2 of 2) Wiring Schematics

GM2611861

Courtesy of GENERAL MOTORS COMPANY
