X700 Left Rear Door Harness to Body Harness

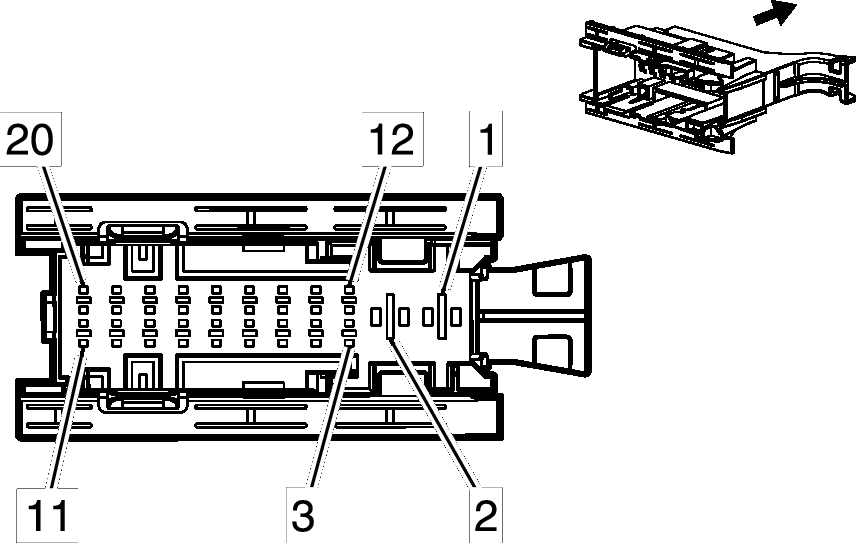

Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 13254911
- Service Connector: Service by Harness - See Part Catalog
- Description: 20-Way F 1.5 Series (GY)
|

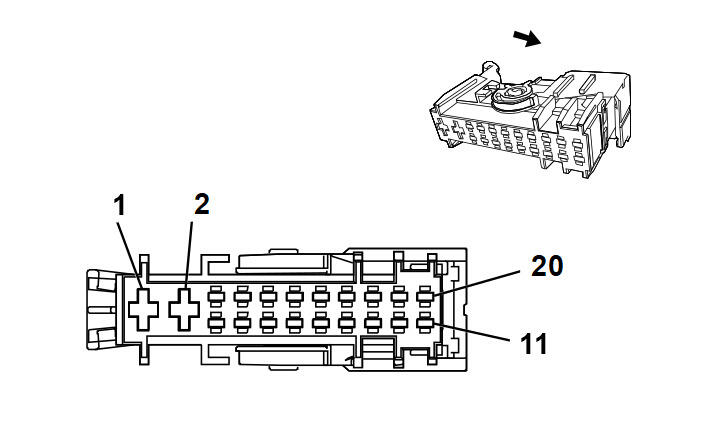

Connector Part Information
- Harness Type: Body
- OEM Connector: 13254912
- Service Connector: 13576560
- Description: 20-Way M 5.8 TTS 1.5 Series (GY)
|
Terminal Part Information
- Pins: 1, 2
- Terminated Lead: Pending
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-42 (RD)
- Terminal/Tray: 927837-1/25
- Core/Insulation Crimp: A/D
- Pins: 3, 8, 9, 14, 15
- Terminated Lead: Pending
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 962943-5/16
- Core/Insulation Crimp: Pins: 3, 5-16: E/A
- Core/Insulation Crimp: Pins: 4 : Pending
|
Terminal Part Information
- Pins: 1, 2
- Terminated Lead: Pending
- Release Tool: J-38125-36
- Diagnostic Test Probe: NA
- Terminal/Tray: 964308-1/ NA
- Core/Insulation Crimp: Pending
- Pins: 3, 8, 9, 14, 15
- Terminated Lead: Pending
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 964265-2/28
- Core/Insulation Crimp: Pins: 8, 9: E/C
- Core/Insulation Crimp: Pins: 14, 15 : C/A
- Core/Insulation Crimp: Pins: 3: E/2
|
X700 Left Rear Door Harness to Body Harness
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| 1 |
2.5 RD/BN |
2940 |
Battery Positive Voltage |
1 |
2.5 RD/BN |
2940 |
Battery Positive Voltage |
| 2 |
2.5 BK |
2350 |
Ground |
2 |
4 BK |
2350 |
Ground |
| 3 |
- |
- |
Not Used |
3 |
0.5 GN/GY |
6135 |
Linear Interconnect Network Bus 4 |
| 4-6 |
- |
- |
Not Used |
4-6 |
- |
- |
Not Used |
| 7 |
0.75 VT/YE |
3267 |
Child Security Lock Relay Control |
7 |
0.75 WH/BU |
3266 |
Child Security Lock Motor Unlock Control |
| 8 |
0.75 GY |
295 |
Door Lock Actuator Lock Control |
8 |
0.75 GY |
295 |
Door Lock Actuator Lock Control |
| 9 |
0.75 BN/YE |
294 |
Door Lock Actuator Unlock Control |
9 |
0.75 BN/YE |
294 |
Door Lock Actuator Unlock Control |
| 10-13 |
- |
- |
Not Used |
10-13 |
- |
- |
Not Used |
| 14 |
1 GN |
199 |
Left Rear Speaker (+) |
14 |
1 GN |
199 |
Left Rear Speaker (+) |
| 15 |
1 GN/BK |
116 |
Left Rear Speaker Signal (-) |
15 |
1 BK/GN |
116 |
Left Rear Speaker Signal (-) |
| 16 |
0.75 BN/WH |
3269 |
Child Security Lock Motor Status Signal Left Rear |
16 |
0.5 BN/WH |
3269 |
Child Security Lock Motor Status Signal Left Rear |
| 17-20 |
- |
- |
Not Used |
17-20 |
- |
- |
Not Used |
