X600 Passenger Door Harness to Body Harness

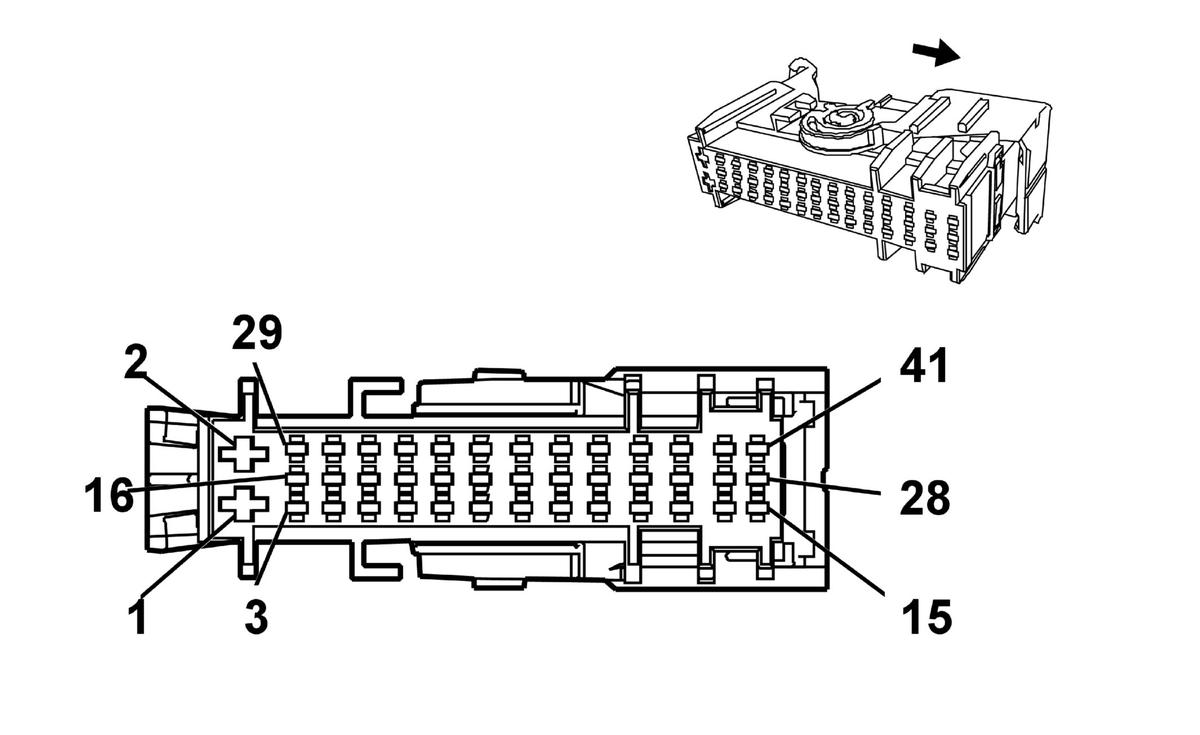

Connector Part Information Harness Type: Passenger Door OEM Connector: 13254913 Service Connector: Service by Harness - See Part Catalog Description: 41-Way F 4.8 Timer Series (GY)

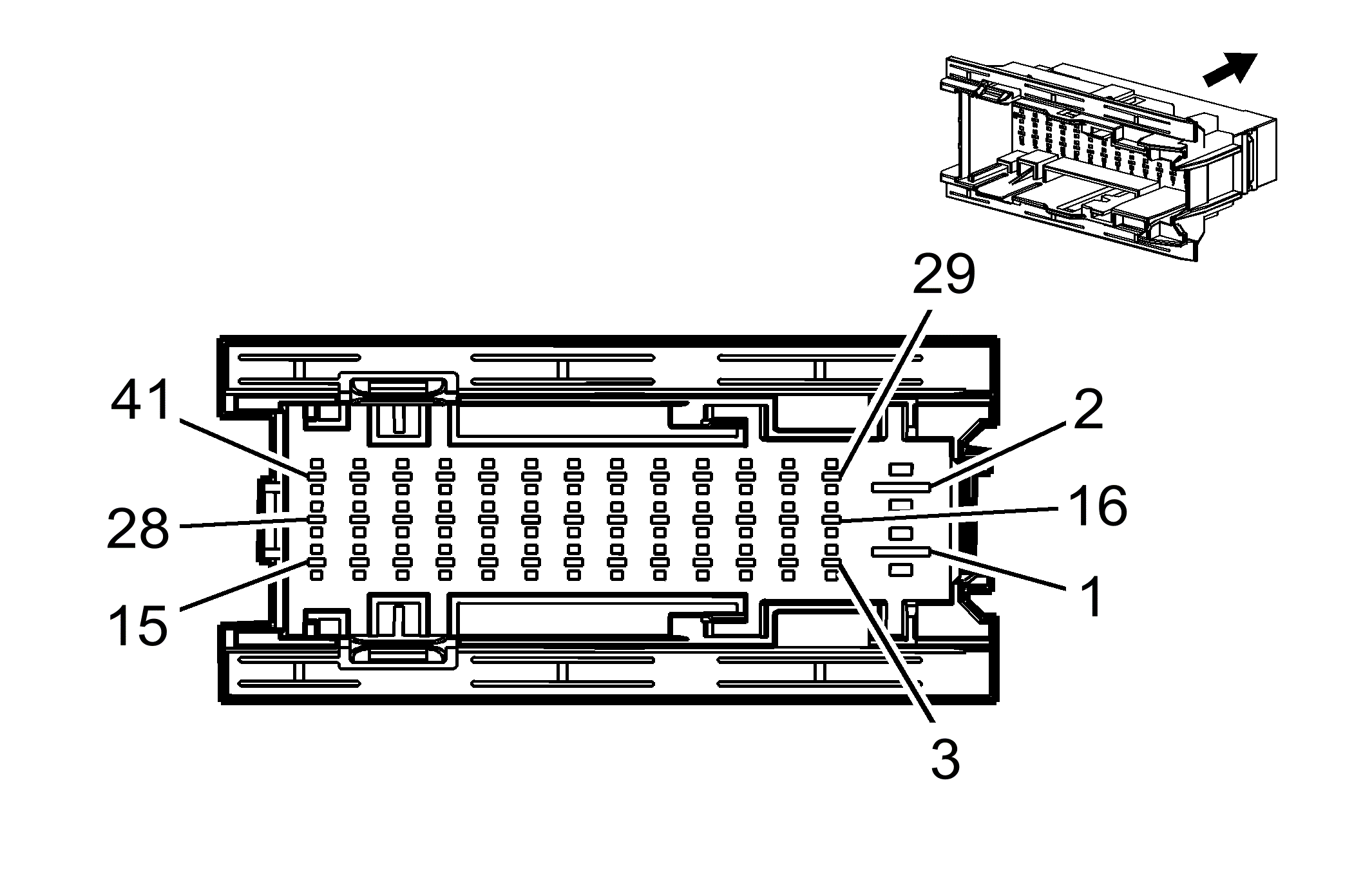

Connector Part Information Harness Type: Body OEM Connector: 13254914 Service Connector: 13576548 Description: 41-Way M DSQ 1.5 2.8 Series (GY)

Terminal Part Information Pins: 1 Terminated Lead: Pending Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-42 (RD) Terminal/Tray: 964328-1/25 Core/Insulation Crimp: 4/B Pins: 2 Terminated Lead: Pending Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-42 (RD) Terminal/Tray: 927837-1/25 Core/Insulation Crimp: A/D Pins: 3-18, 21-26, 28, 31-38, 40, 41 Terminated Lead: Pending Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 962943-5/16 Core/Insulation Crimp: Pins: 3-18, 21-25, 28, 31-38, 40, 41: E/A Core/Insulation Crimp: Pins: 26 : Pending

Terminal Part Information Pins: 1, 2 Terminated Lead: Pending Release Tool: J-38125-36 Diagnostic Test Probe: NA Terminal/Tray: 964308-1/ NA Core/Insulation Crimp: Pending Pins: 3, 4, 10, 11, 16-18, 24, 26, 35, 36, 38 Terminated Lead: Pending Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 964265-2/28 Core/Insulation Crimp: Pins: 24, 35, 36: E/C Core/Insulation Crimp: Pins: 10, 11 : C/A Core/Insulation Crimp: Pins: 3, 4, 16-18, 26, 38: E/2

X600 Passenger Door Harness to Body Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	4 BK	2050	Ground	1	4 BK	2050	Ground
2	2.5 RD/GN	1540	Battery Positive Voltage	2	2.5 RD/GN	1540	Battery Positive Voltage
3	0.5 GY	157	Interior Lamp Control	3	0.5 GY	157	Interior Lamp Control
4	0.5 YE/VT	3397	Co-Driver Mirror Motor Up (+) Down (-) Control	4	0.5 YE/VT	3397	Co-Driver Mirror Motor Up (+) Down (-) Control
5-9	-	-	Not Used	5-9	-	-	Not Used
10	1 YE	200	Right Front Speaker (+) (1)	10	1 YE	200	Right Front Speaker (+) (1)
11	1 YE/BK	117	Right Front Speaker Signal (-) (1)	11	1 YE/BK	117	Right Front Speaker Signal (-) (1)
12-15	-	-	Not Used	12-15	-	-	Not Used
16	0.5 GN/YE	6134	Linear Interconnect Network Bus 3	16	0.5 GN/YE	6134	Linear Interconnect Network Bus 3
17	0.5 WH	3398	Co-Driver Mirror Motor Common Control	17	0.5 WH	3398	Co-Driver Mirror Motor Common Control
18	0.5 GN/BK	3396	Co-Driver Mirror Motor Right (+) Left (-) Control	18	0.5 GN/BK	3396	Co-Driver Mirror Motor Right (+) Left (-) Control
19-23	-	-	Not Used	19-23	-	-	Not Used
24	0.75 BN/YE	2267	Mirror Heating Element Supply Voltage	24	0.75 BN/YE	2267	Mirror Heating Element Supply Voltage
25	-	-	Not Used	25	-	-	Not Used
26	0.35 YE	6817	LED Backlight Dimming Control	26	0.35 YE	6817	LED Backlight Dimming Control
27-34	-	-	Not Used	27-34	-	-	Not Used
35	0.75 GY	295	Door Lock Actuator Lock Control	35	0.75 GY	295	Door Lock Actuator Lock Control
36	0.75 BN/YE	294	Door Lock Actuator Unlock Control	36	0.75 BN/YE	294	Door Lock Actuator Unlock Control
37	-	-	Not Used	37	-	-	Not Used
38	0.5 WH/YE	7557	LED Ambient Lighting Control 1	38	0.5 WH/YE	7557	LED Ambient Lighting Control 1
39	0.5 OG/BK	5996	Driver Outside Rear View Mirror Puddle Lamp Supply Voltage	39	-	-	Not Used
40-41	-	-	Not Used	40-41	-	-	Not Used
