X450 Body Harness to Rear Body Harness (HP6)

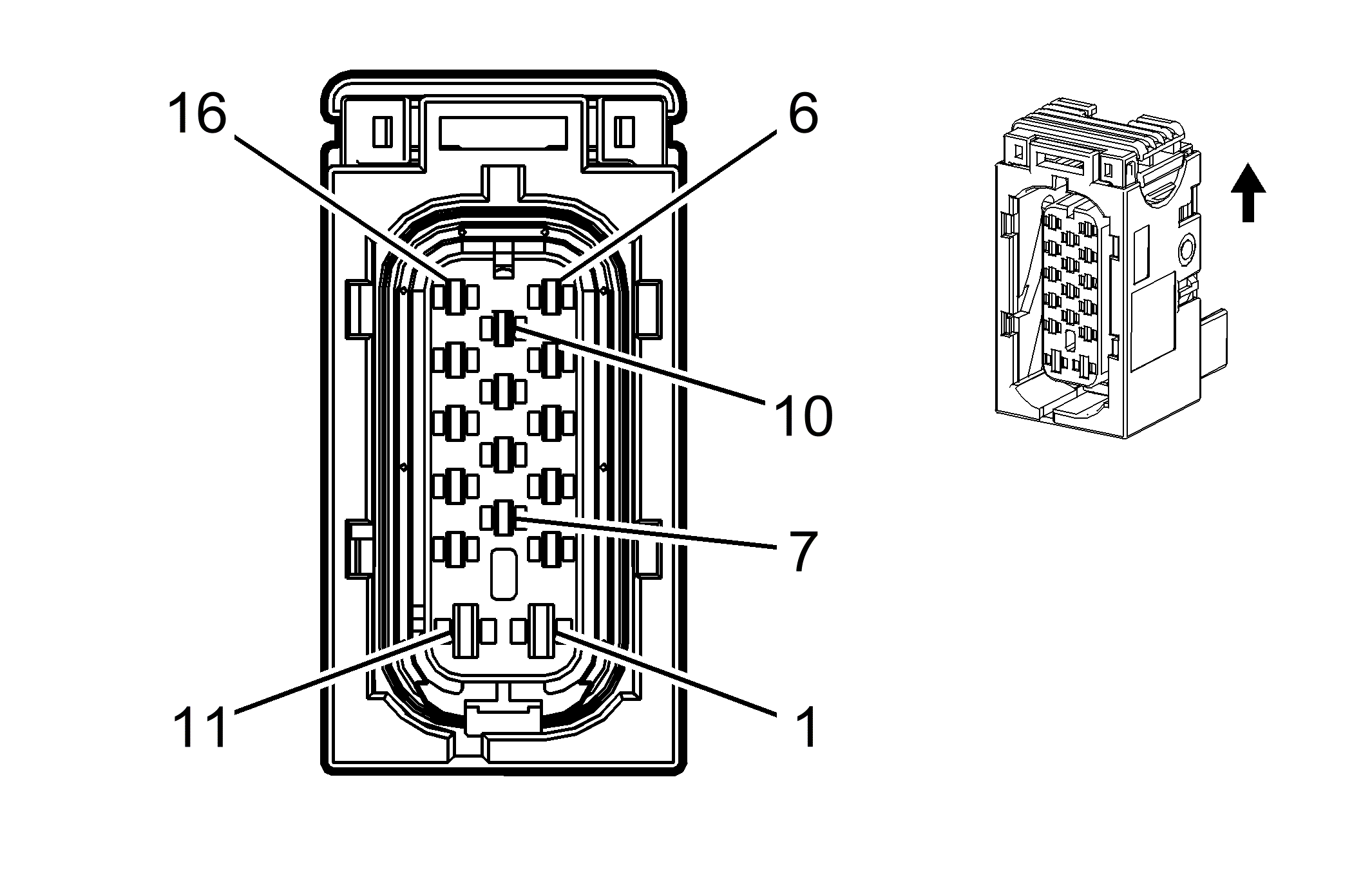

Connector Part Information Harness Type: Body OEM Connector: 13579269 Service Connector: Pending Description: 52-Way F 2.8 DSQ 64 Series

Connector Part Information Harness Type: Rear Body OEM Connector: 13610684 Service Connector: Service by Harness - See Part Catalog Description: 52-Way M 2.8 DSQ 64 Series

Terminal Part Information Pins: 2 Terminated Lead: 13575784 Release Tool: J-38125-12A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: 928999-5/15 Core/Insulation Crimp: J/J Pins: 5-6, 9, 13, 26, 38-40, 43-45 Terminated Lead: 13575782 Release Tool: J-38125-12A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: 928999-5/15 Core/Insulation Crimp: J/J Pins: 51 Terminated Lead: 13327182 Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-35 (VT) Terminal/Tray: 2-964284-1/25 Core/Insulation Crimp: E/A

Terminal Part Information Pins: 2 Terminated Lead: 13575784 Release Tool: J-38125-12A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: 928999-5/15 Core/Insulation Crimp: J/J Pins: 5-6, 9, 13, 26, 38-40, 43-45 Terminated Lead: 13575782 Release Tool: J-38125-12A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: 928999-5/15 Core/Insulation Crimp: J/J Pins: 51 Terminated Lead: 13327182 Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-35 (VT) Terminal/Tray: 2-964284-1/25 Core/Insulation Crimp: E/A

X450 Body Harness to Rear Body Harness (HP6)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	-	-	Not Used	1	-	-	Not Used
2	0.75 D-BU/WH	1334	Left Rear Turn Signal Lamp Supply Voltage	2	0.75 D-BU/WH	1334	Left Rear Turn Signal Lamp Supply Voltage
3-4	-	-	Not Used	3-4	-	-	Not Used
5	0.5 BK	2350	Ground	5	0.5 BK	2350	Ground
6	0.5 BK	2550	Ground	6	0.5 BK	2550	Ground
7-12	-	-	Not Used	7-12	-	-	Not Used
13	0.5 GY/D-GN	2555	Rear Park Assist Disable Signal	13	0.5 GY/D-GN	2555	Rear Park Assist Disable Signal
14-25	-	-	Not Used	14-25	-	-	Not Used
26	0.5 GN	5060	Low Speed GMLAN Serial Data	26	0.5 GN	5060	Low Speed GMLAN Serial Data
27-37	-	-	Not Used	27-37	-	-	Not Used
38	0.5 D-GN/GY	3569	Passive Entry Rear Closure Antenna Signal Lo	38	0.5 D-GN/GY	3569	Passive Entry Rear Closure Antenna Signal Lo
39	0.5 BN/D-GN	3568	Passive Entry Rear Closure Antenna Signal Hi	39	0.5 BN/D-GN	3568	Passive Entry Rear Closure Antenna Signal Hi
40	0.5 D-GN/BN	5852	Rear Park Assist LED Disable Signal	40	0.5 D-GN/BN	5852	Rear Park Assist LED Disable Signal
41-42	-	-	Not Used	41-42	-	-	Not Used
43	0.5 D-GN/YE	6846	Rear License Lamp Supply Voltage	43	0.5 D-GN/YE	6846	Rear License Lamp Supply Voltage
44	0.5 D-GN/YE	6846	Rear License Lamp Supply Voltage	44	0.5 D-GN/YE	6846	Rear License Lamp Supply Voltage
45-50	-	-	Not Used	45-50	-	-	Not Used
51	0.75 RD/YE	2340	Ground	51	0.75 RD/YE	2340	Ground
52	-	-	Not Used	52	-	-	Not Used
