X415 Rear Bumper Harness to Body Harness (UD5 or UD7 without HP6)

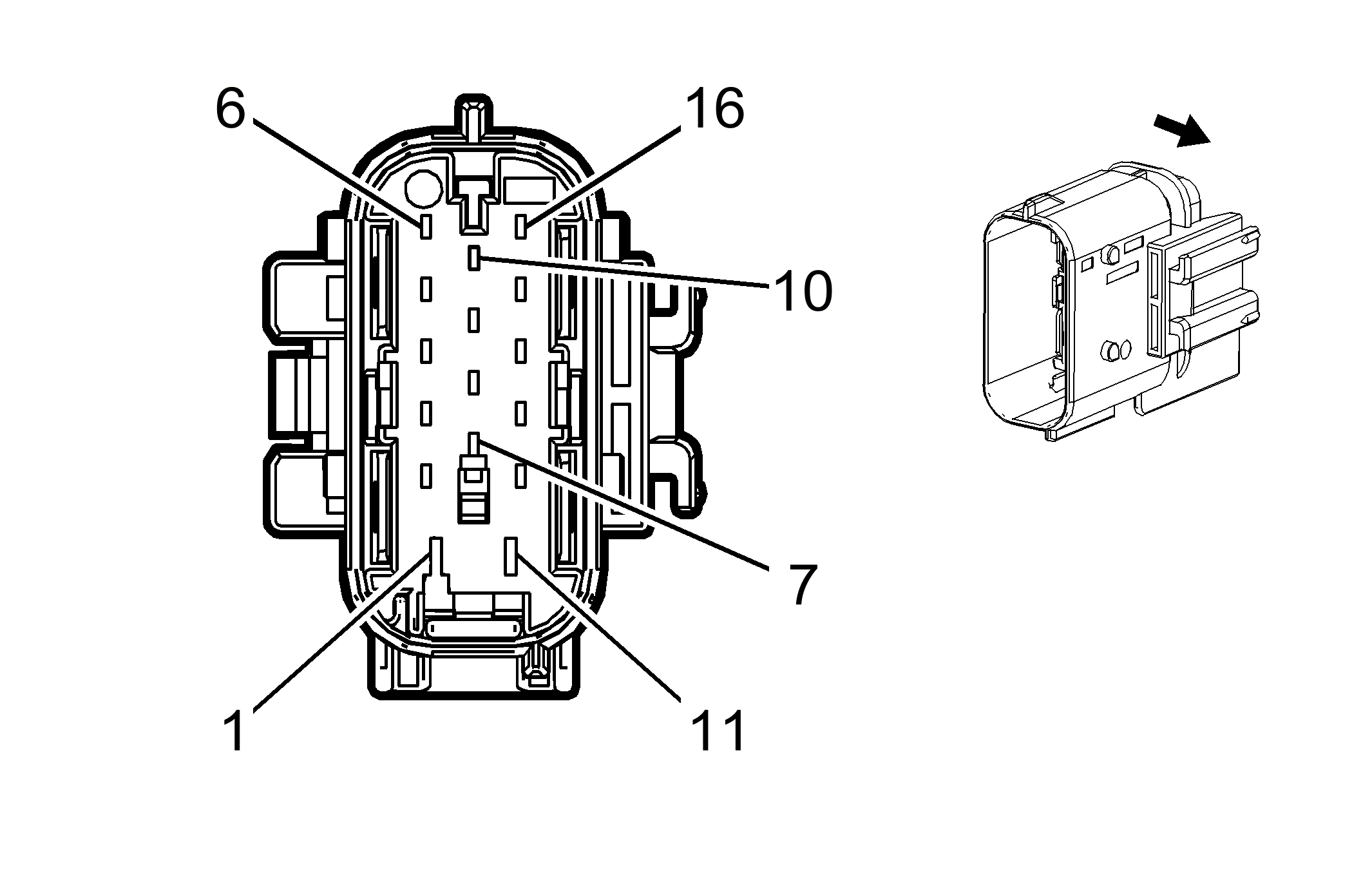

Connector Part Information Harness Type: Rear Bumper OEM Connector: 15471110 Service Connector: Service by Harness - See Part Catalog Description: 16-Way F 2.8 DSQ 1.5 Series, Sealed (GY)	Connector Part Information Harness Type: Body OEM Connector: 15471080 Service Connector: 13212499 Description: 16-Way M 1.5 2.8 Series, Sealed (GY)
Terminal Part Information Pins: 1 Terminated Lead: Pending Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-35 (VT) Terminal/Tray: 4-964286-1/16 Core/Insulation Crimp: E/1 Pins: 2-10 Terminated Lead: Pending Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 4-969005-1/16 Core/Insulation Crimp: E/1	Terminal Part Information Pins: 1 Terminated Lead: Pending Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 1-962915-3/15 Core/Insulation Crimp: E/1 Pins: 2, 4-7, 9, 10 Terminated Lead: Pending Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-3 (GY) Terminal/Tray: 969079-2/32 Core/Insulation Crimp: 2/C

X415 Rear Bumper Harness to Body Harness (UD5 or UD7 without HP6)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 YE/VT	2378	Right Rear Corner Object Sensor Signal	1	0.5 YE/VT	2378	Right Rear Corner Object Sensor Signal
2	0.5 YE/WH	2377	Right Rear Middle Object Sensor Signal	2	0.5 YE/WH	2377	Right Rear Middle Object Sensor Signal
3	-	-	Not Used	3	-	-	Not Used
4	0.5 BN/WH	2374	Object Sensor Supply Voltage	4	0.5 BN/WH	2374	Object Sensor Supply Voltage
5	0.5 YE	2375	Left Rear Corner Object Sensor Signal	5	0.5 YE	2375	Left Rear Corner Object Sensor Signal
6	0.5 BK/GY	2379	Low Reference	6	0.5 BK/GY	2379	Low Reference
7	0.5 GN/YE	6846	Rear License Lamp Supply Voltage	7	0.5 GN/YE	6846	Rear License Lamp Supply Voltage
8	-	-	Not Used	8	-	-	Not Used
9	0.5 BK	2550	Ground	9	0.5 BK	2550	Ground
10	0.5 YE/BU	2376	Left Rear Middle Object Sensor Signal	10	0.5 YE/BU	2376	Left Rear Middle Object Sensor Signal
11-16	-	-	Not Used	11-16	-	-	Not Used
