X400 Headliner Harness to Body Harness

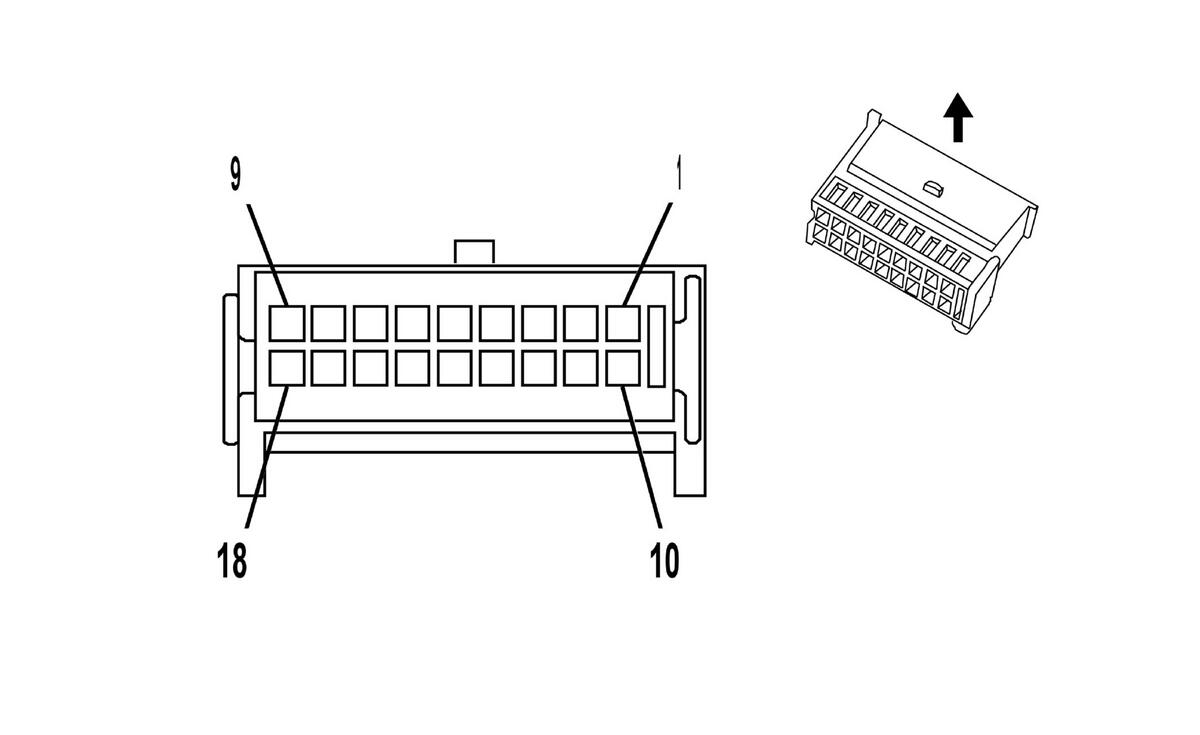

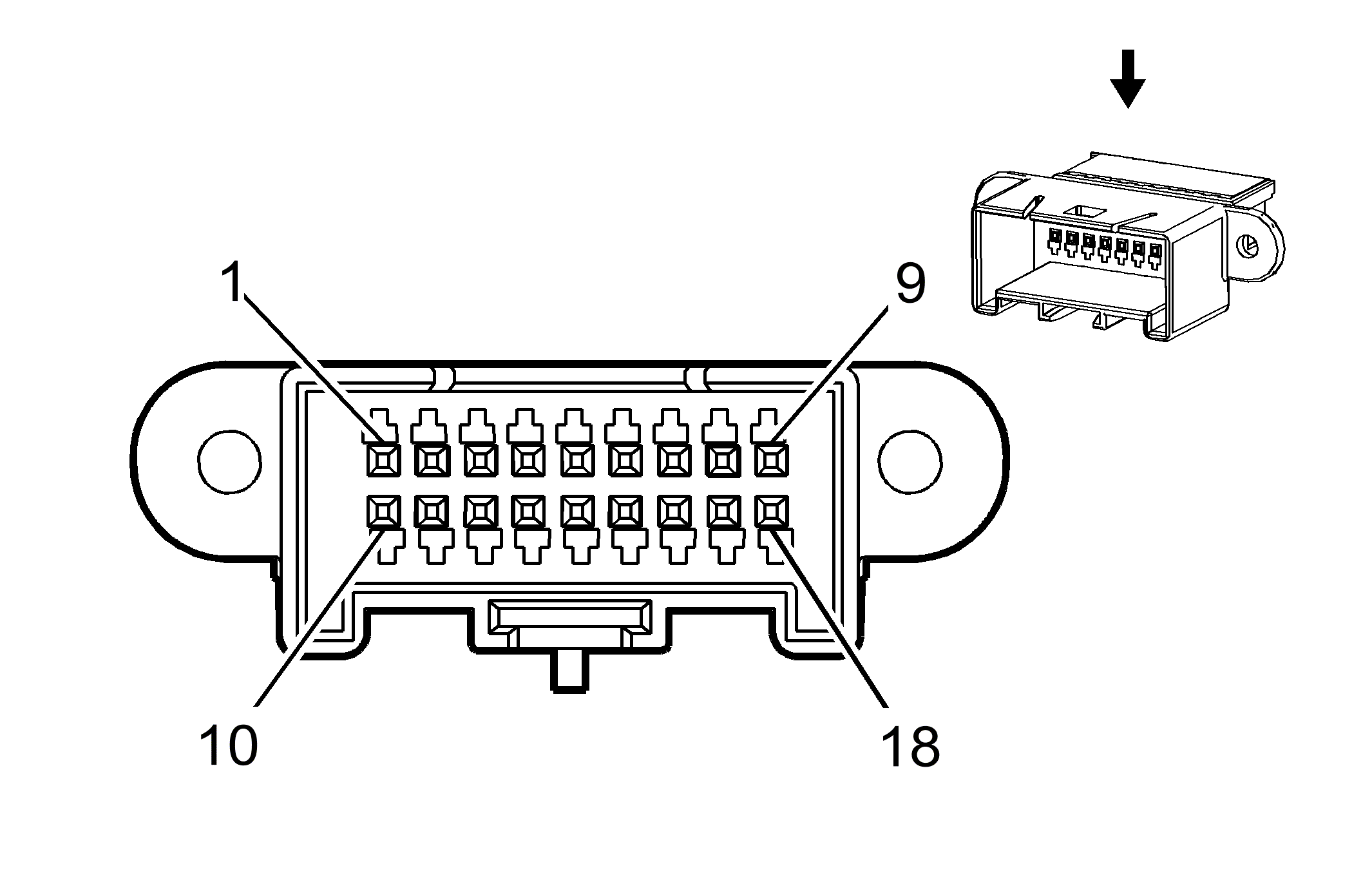

Connector Part Information Harness Type: Headliner OEM Connector: 24444119 Service Connector: 13578579 Description: 18-Way F 0.64 Micro Quadlok Series (BK)	Connector Part Information Harness Type: Body OEM Connector: 24444120 Service Connector: 13578580 Description: 18-Way M 0.64 Micro Quadlok Series (BK)
Terminal Part Information Terminated Lead: Pending Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Pending Core/Insulation Crimp: Pending	Terminal Part Information Terminated Lead: Pending Release Tool: 12094429 Diagnostic Test Probe: J-35616-65B (L-BU) Terminal/Tray: 963716-2/7 Core/Insulation Crimp: Pins: 1-6, 11-16: J/J Core/Insulation Crimp: Pins: 7, 8: H/H

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 GY	157	Interior Lamp Control	1	0.5 GY	157	Interior Lamp Control
2	0.75 WH/BN	6815	Inadvertent Power Control	2	0.75 WH/BN	6815	Inadvertent Power Control
3	0.75 BK	1550	Ground	3	0.75 BK	1550	Ground
4	0.5 GY/GN	328	Interior Lamp Defeat Switch Signal	4	0.5 GY/GN	328	Interior Lamp Defeat Switch Signal
5	0.5 GY	156	Courtesy Lamp Switch Signal	5	0.5 GY	156	Courtesy Lamp Switch Signal
6	0.75 YE	6817	LED Backlight Dimming Control	6	0.75 YE	6817	LED Backlight Dimming Control
7	0.5 BARE*	654	Low Reference	7	0.35 BARE*	654	Low Reference
8	0.5 BU	655	Cellular Telephone Microphone Signal	8	0.35 BU	655	Cellular Telephone Microphone Signal
9	-	-	Not Used	9	-	-	Not Used
10	0.5 BK/GY	128	Low Reference	10	0.5 BK/GY	128	Low Reference (CF5)
11	0.5 D-BU/VT	5027	Sunroof Switch Data (1)	11	0.5 BU/VT	5027	Sunroof Switch Data (1) (CF5)
12	0.5 WH/GN	3031	Sunroof Vent Switch Signal (CF5)	12	0.5 WH/GN	3031	Sunroof Vent Switch Signal (CF5)
13-18	-	-	Not Used	13-18	-	-	Not Used
BARE wires may have an insulation material at the point the wire enters the connector cavity that protects adjacent wires from potential short circuits. These insulators may extend into the harness bundle and the bare wire may not be noticeably visible.
