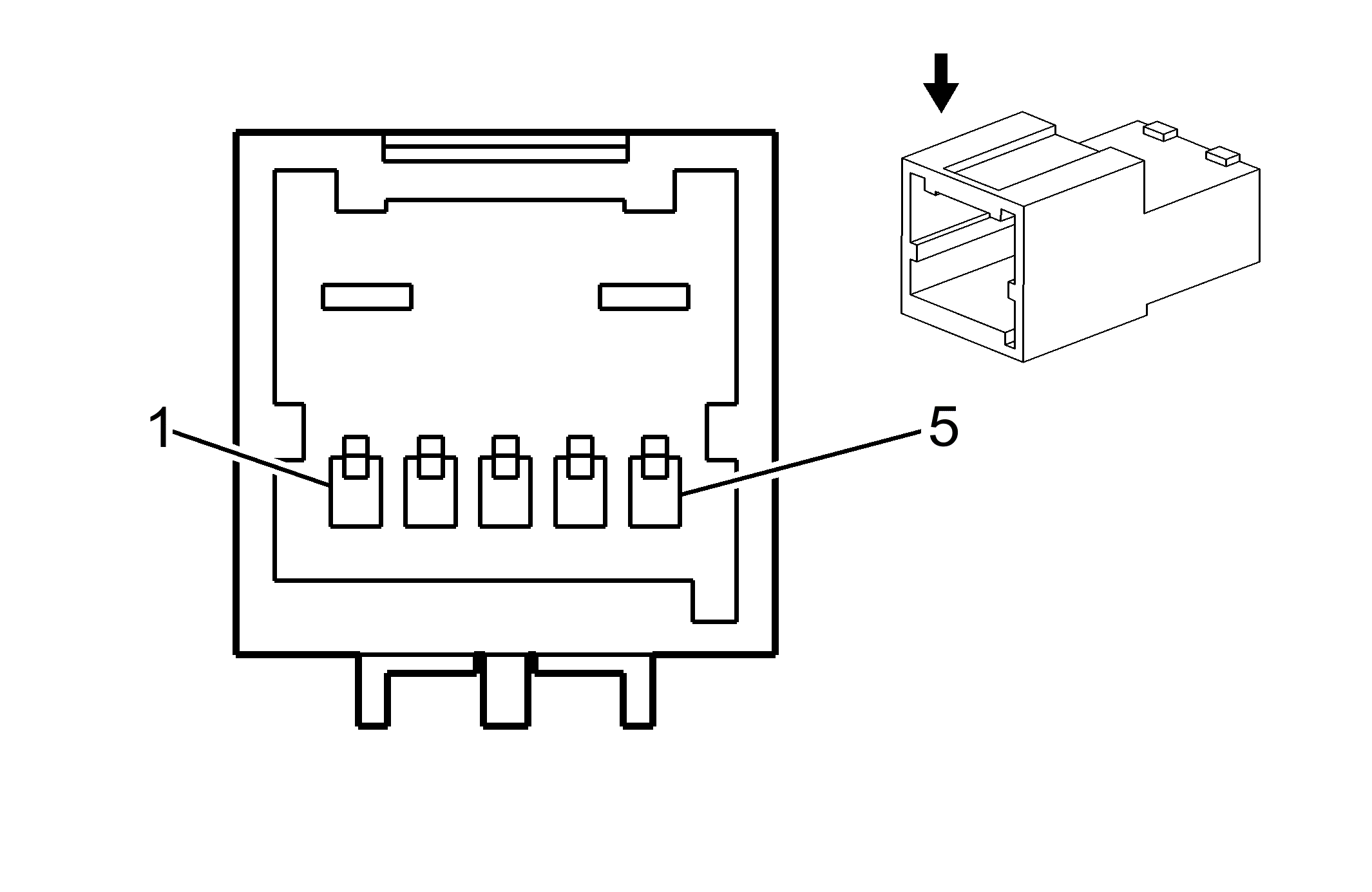

X205 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness

Connector Part Information Harness Type: Instrument Panel OEM Connector: 19153434 Service Connector: 19178096 Description: 5-Way F 0.64 Series (YE)	Connector Part Information Harness Type: Passenger Instrument Panel Air Bag OEM Connector: 19153435 Service Connector: Service by Harness - See Part Catalog Description: 5-Way M 0.64 Series Unsealed (YE)
Terminal Part Information Terminated Lead: Service by Connector Assembly - 19178096 Release Tool: J-38125-215A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: Service by Connector Assembly - 19178096 Core/Insulation Crimp: Not Available	Terminal Part Information Terminated Lead: Service by Harness - See Part Catalog Release Tool: J-38125-215A Diagnostic Test Probe: J-35616-65B (L-BU) Terminal/Tray: Service by Harness - See Part Catalog Core/Insulation Crimp: Not Available

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 YE/OG	3025	Passenger IP Module Stage 1 High Control	1	0.5 YE	-	Passenger IP Module Stage 1 High Control
2	0.5 OG/WH	3024	Passenger IP Module Stage 1 Low Control	2	0.5 OG	-	Passenger IP Module Stage 1 Low Control
3	0.5 BK	2450	Ground	3	0.5 BN	-	Ground
4	0.5 GY/OG	3027	Passenger IP Module Stage 2 High Control	4	0.5 GY	-	Passenger IP Module Stage 2 High Control
5	0.5 OG/VT	3026	Passenger IP Module Stage 2 Low Control	5	0.5 PU	-	Passenger IP Module Stage 2 Low Control
