X141 Right Front Suspension Components to Right Front Suspension Harness (F45)

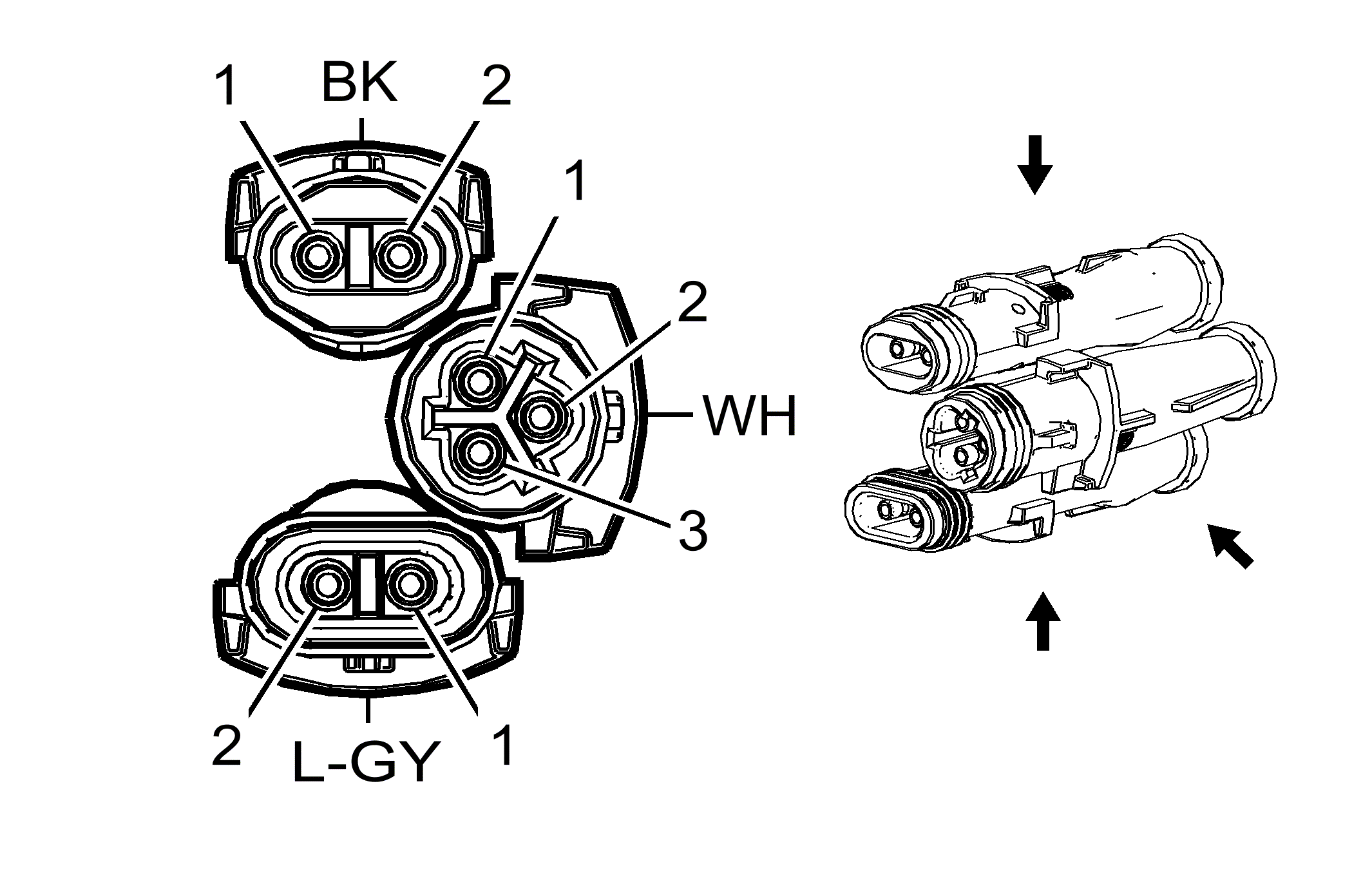

Connector Part Information
- Harness Type: Right Front Suspension Components - Right Front Wheel Speed Sensor
- OEM Connector: 24466107
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: 2-Way F (L-GY)
Terminal Part Information
- Terminated Lead: Service by Component Assembly - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Component Assembly - See Part Catalog
- Core/Insulation Crimp: Not Available
Connector Part Information
- Harness Type: Right Front Suspension Components - Right Front Shock Absorber Actuator
- OEM Connector: 24466109
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: 2-Way F (BK)
Terminal Part Information
- Terminated Lead: Service by Component Assembly - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Component Assembly - See Part Catalog
- Core/Insulation Crimp: Not Available
Connector Part Information
- Harness Type: Right Front Suspension Components - Right Front Vertical Suspension Acceleration Sensor
- OEM Connector: 24466110
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: 3-Way F (WH)
|

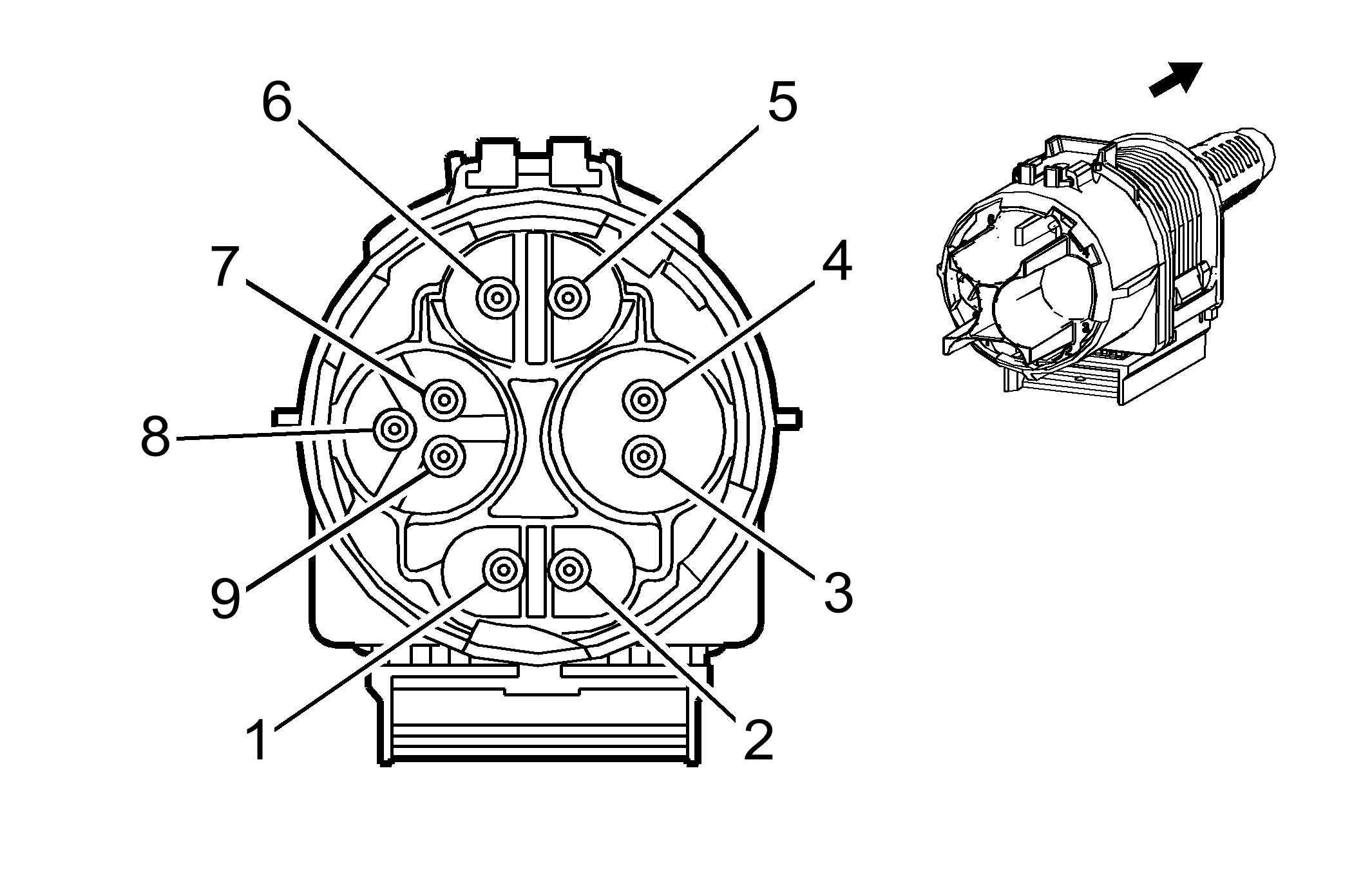

Connector Part Information
- Harness Type: Right Front Suspension
- OEM Connector: ZMW 7-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 9-Way M (GY)
|
Terminal Part Information
- Terminated Lead: Service by Component Assembly - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Component Assembly - See Part Catalog
- Core/Insulation Crimp: Not Available
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
|
X141 Right Front Suspension Components to Right Front Suspension Harness (F45)
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD/BU |
872 |
Wheel Speed Sensor Signal Right Front |
1 |
0.5 RD |
872 |
Wheel Speed Sensor Signal Right Front |
| 2 |
0.5 BK/YE |
833 |
Wheel Speed Sensor Low Reference Right Front |
2 |
0.5 YE |
833 |
Wheel Speed Sensor Low Reference Right Front |
| 3-4 |
- |
- |
Not Available |
3-4 |
- |
- |
Not Available |
| 1 |
0.75 GY/WH |
1117 |
Right Front Damping Servo Control |
5 |
0.5 GN |
1117 |
Right Front Damping Servo Control |
| 2 |
0.75 GY/RD |
1116 |
Right Front Damping Servo Supply Voltage |
6 |
0.5 BN |
1116 |
Right Front Damping Servo Supply Voltage |
| 1 |
0.5 YE |
1817 |
Right Front Wheel Accelerometer Voltage Reference |
7 |
0.5 PU |
1817 |
Right Front Wheel Accelerometer Voltage Reference |
| 2 |
0.5 WH |
1106 |
Right Front Wheel Damping Accelerometer Signal |
8 |
0.5 BU |
1106 |
Right Front Wheel Damping Accelerometer Signal |
| 3 |
0.5 PK/BK |
1099 |
Right Front Wheel Damping Accelerometer Low Reference |
9 |
0.5 OG |
1099 |
Right Front Wheel Damping Accelerometer Low Reference |
