X130 Forward Lamp Harness to Suspension - Left Front Harness (F45)

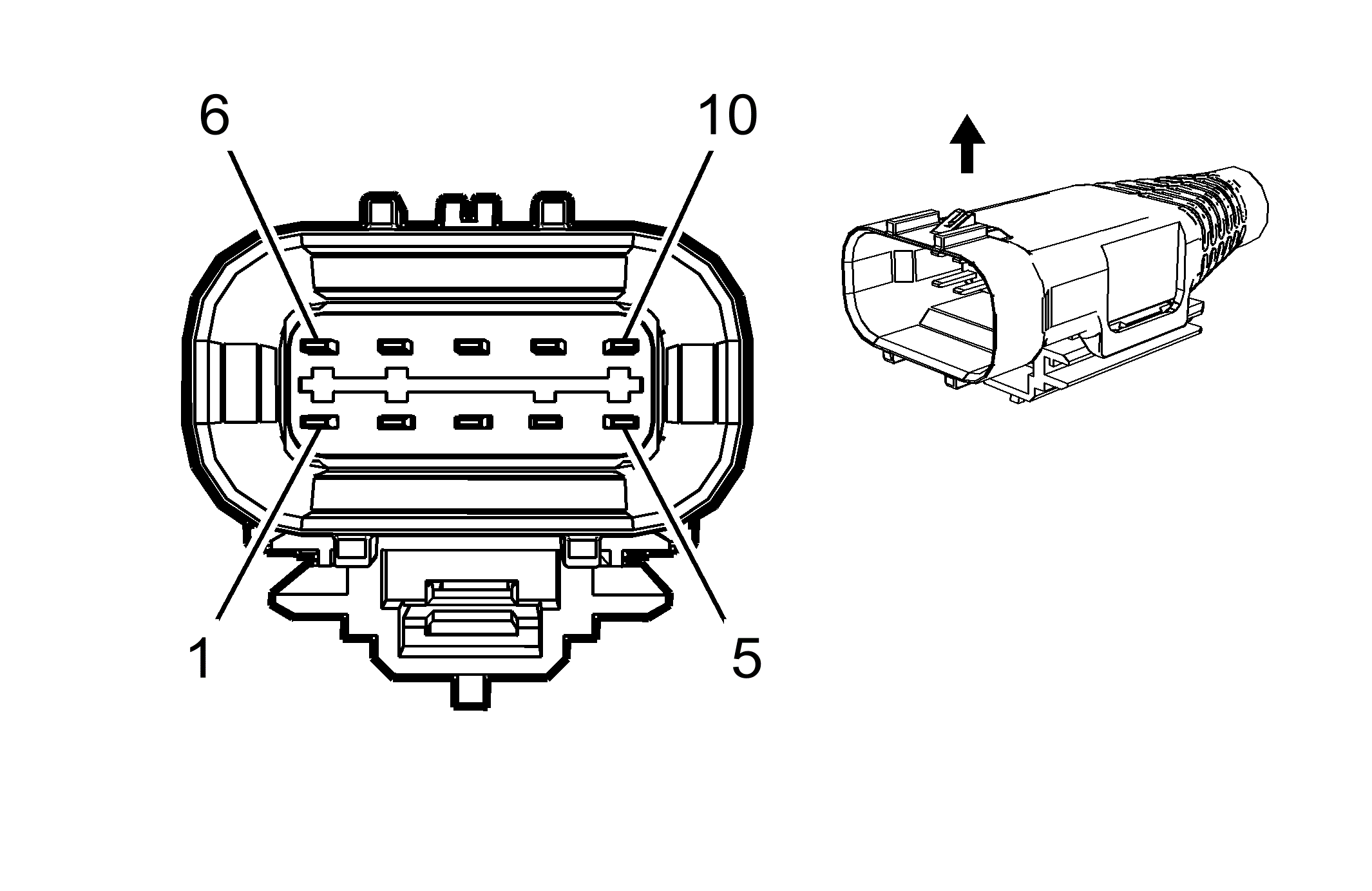

Connector Part Information Harness Type: Forward Lamp OEM Connector: 13147089 Service Connector: 13316191 10-Way F 1.6 Series, Sealed (BK)	Connector Part Information Harness Type: Suspension - Left Front OEM Connector: ZMW 7-2 Service Connector: Service by Harness - See Part Catalog Description: 10-Way M Sealed (GY)
Terminal Part Information Terminated Lead: 13578874 Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 964274-2/16 Core/Insulation Crimp: E/1	Terminal Part Information Terminated Lead: Service By Harness - See Part Catalog Release Tool: Not Available Diagnostic Test Probe: Not Available Terminal/Tray: Service By Harness - See Part Catalog Core/Insulation Crimp: Not Available

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 BK/BN	1099	Left Front Wheel Damping Accelerometer Low Reference	1	0.5 BK/BN	1099	Left Front Wheel Damping Accelerometer Low Reference
2	0.5 WH	1100	Left Front Wheel Damping Accelerometer Signal	2	0.5 WH	1100	Left Front Wheel Damping Accelerometer Signal
3	-	-	Not Used	3	-	-	Not Used
4	0.5 YE/RD	1817	Left Front Wheel Accelerometer Voltage Reference	4	0.5 YE	1817	Left Front Wheel Accelerometer Voltage Reference
5	0.75 BN/WH	1107	Left Front Damping Servo Control	5	0.75 GN/RD	1107	Left Front Damping Servo Control
6	0.5 GY	830	Wheel Speed Sensor Signal Left Front	6	0.5 BU/WH	830	Wheel Speed Sensor Signal Left Front
7	0.5 GY/WH	7064	Left Front Wheel Speed Sensor Low Reference	7	0.5 BK/BU	873	Left Front Wheel Speed Sensor Low Reference
8-9	-	-	Not Used	8	-	-	Not Used
10	0.75 GY/BU	113	Left Front Damping Servo Control	10	0.75 GY/BU	113	Left Front Damping Servo Control
