X116 Cooling Fan Harness to Forward Lamp Harness

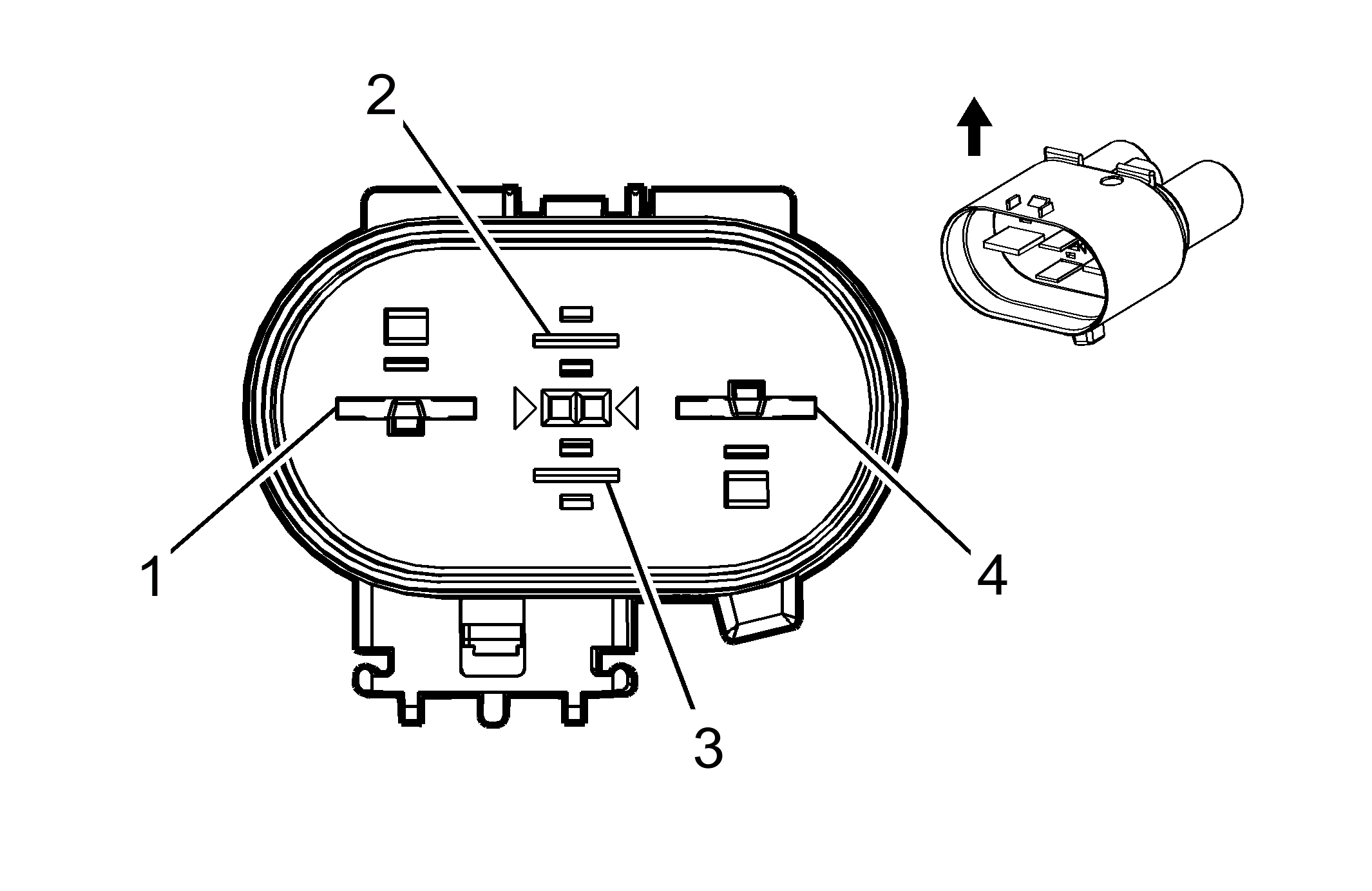

Connector Part Information Harness Type: Cooling Fan OEM Connector: 13161013 Service Connector: Service by Harness- See Part Catalog Description: 4-Way F 4.8 9.5 Series, Sealed (BK)	Connector Part Information Harness Type: Forward Lamp OEM Connector: 13212505 Service Connector: 13316148 Description: 4-Way M 5.8 9.5 Series, Sealed (BK)
Terminal Part Information Pins: 1, 4 Terminated Lead: Pending Release Tool: Not Available Diagnostic Test Probe: Pending Terminal/Tray: Service by Harness- See Part Catalog Core/Insulation Crimp: Not Available Pins: 2, 3 Terminated Lead: Pending Release Tool: 12093647 Diagnostic Test Probe: J-35616-40 (BU) Terminal/Tray: 60040451/21 Core/Insulation Crimp: A/3	Terminal Part Information Pins: 1, 4 Terminated Lead: Pending Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Pending Core/Insulation Crimp: Pending Pins: 2, 3 Terminated Lead: Pending Release Tool: J-38125-36 Diagnostic Test Probe: NA Terminal/Tray: 964314-1/ NA Core/Insulation Crimp: Pending

X116 Cooling Fan Harness to Forward Lamp Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	4 RD/WH	532	Cooling Fan Motor Supply Voltage (2) (LEA)	1	4 GY	532	Cooling Fan Motor Supply Voltage (2) (LEA)
	6 RD/WH	1040	Battery Positive Voltage (LHU)		6 RD/WH	1040	Battery Positive Voltage (LHU)
2	0.75 VT/BU	5290	Powertrain Main Relay Fused Supply (1) (LHU)	2	0.75 VT/BU	5290	Powertrain Main Relay Fused Supply (1) (LHU)
3	4 BK/GN	504	Cooling Fan Motor Return (LEA)	3	4 GN/BK	504	Cooling Fan Motor Return (LEA)
	0.75 BN/YE	5128	Cooling Fan Relay Coil Control (LHU)		0.75 BN/YE	5128	Cooling Fan Relay Coil Control (LHU)
4	4 RD/YE	409	Cooling Fan Motor Supply Voltage (1) (LEA)	4	4 WH/BU	409	Cooling Fan Motor Supply Voltage (1) (LEA)
	6 GN	7625	Cooling Fan Motor Supply Voltage (4) (LHU)		6 GN	7625	Cooling Fan Motor Supply Voltage (4) (LHU)
