X115 Engine Harness to Body Harness (LHU)

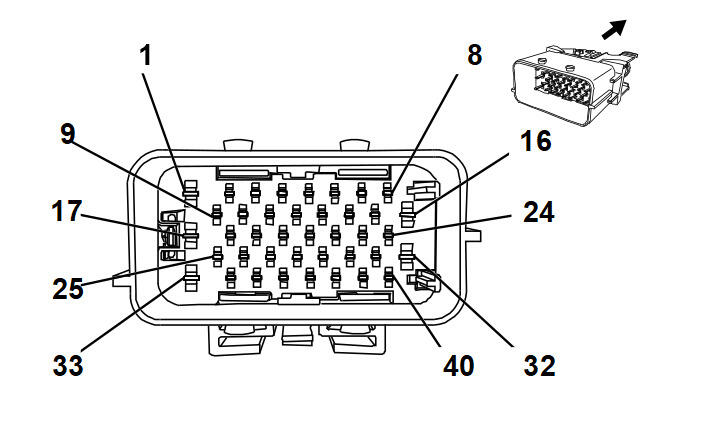

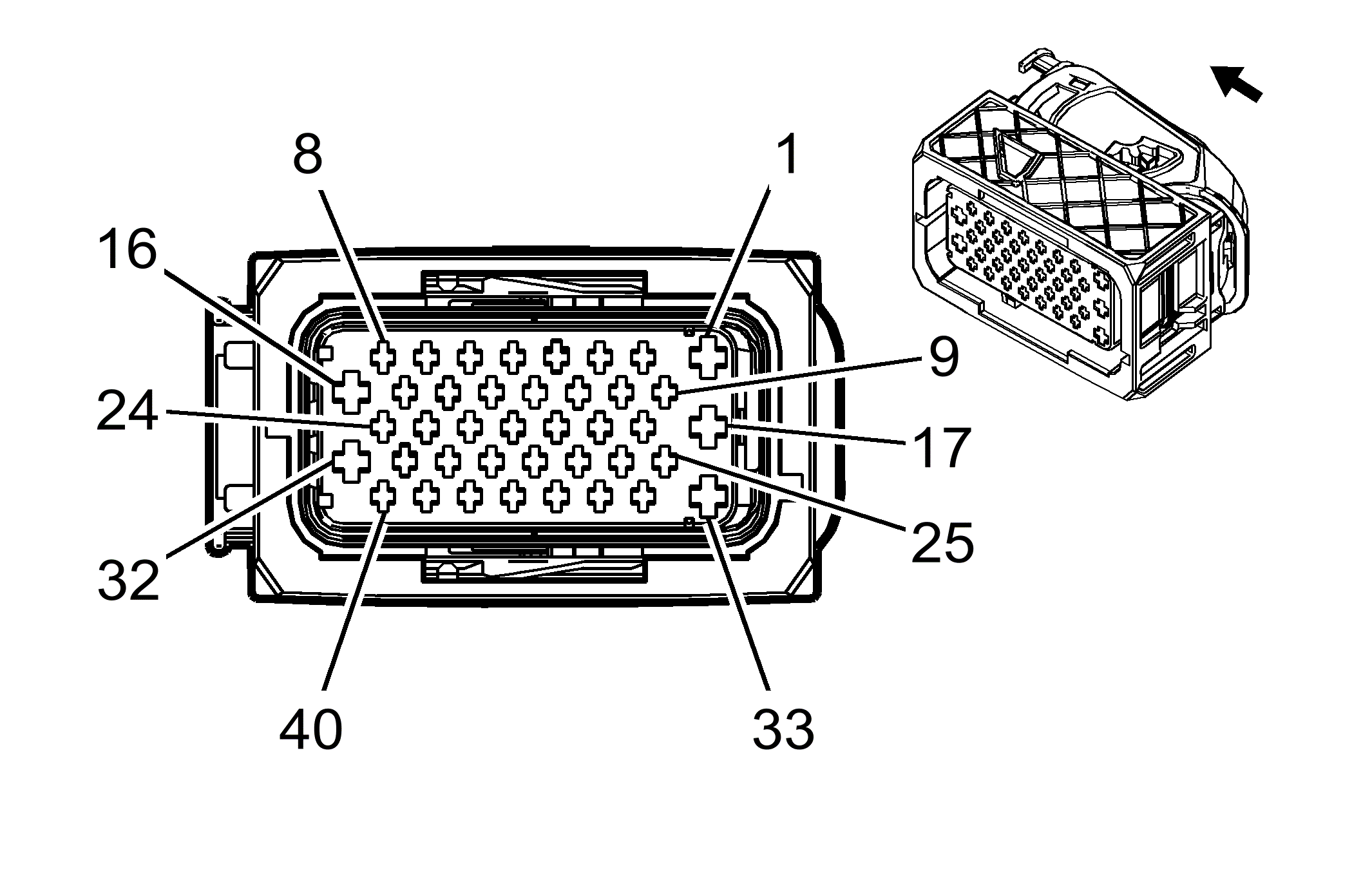

Connector Part Information Harness Type: Engine OEM Connector: 13257309 Service Connector: 13576549 Description: 40-Way F ATS 2.8/DSQ 1.5 Series, Sealed	Connector Part Information Harness Type: Body OEM Connector: 13262025 Service Connector: 13317817 Description: 40-Way M 2.8 ATS DSQ 1.5 Series, Sealed
Terminal Part Information Terminated Lead: Pending Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 19206848/16 Core/Insulation Crimp: E/1	Terminal Part Information Terminated Lead: Pending Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-3 (GY) Terminal/Tray: 964269-3/32 Core/Insulation Crimp: E/1

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	-	-	Not Used	1	-	-	Not Used
2	0.5 BN	1271	Low Reference	2	0.5 BK/VT	1271	Low Reference
3	0.5 WH/BK	1164	5 Volt Reference	3	0.5 WH/RD	1164	5 Volt Reference
4	0.5 BU	1161	Accelerator Pedal Position Signal (1)	4	0.5 YE/WH	1161	Accelerator Pedal Position Signal (1)
5	0.5 VT	1272	Low Reference	5	0.5 BK/VT	1272	Low Reference
6	0.5 WH	1274	5 Volt Reference	6	0.5 BN/RD	1274	5 Volt Reference
7	0.5 BU	1162	Accelerator Pedal Position Signal (2)	7	0.5 GN/WH	1162	Accelerator Pedal Position Signal (2)
8	0.5 BU/WH	6311	Cruise/ETC/TCC Brake Signal	8	0.5 WH/BU	6311	Cruise/ETC/TCC Brake Signal
9	0.5 BU/WH	7361	Manual Transmission Clutch Position Sensor Supply	9	0.5 GY/RD	6109	Clutch Apply Sensor Voltage Reference
10	0.5 OG/GN	7360	Manual Transmission Clutch Position Sensor Return	10	0.5 BK/GY	6110	Low Reference
11	0.5 GN	6338	Manual Transmission Clutch Position Sensor Signal Position	11	0.5 YE	6111	Clutch Apply Sensor Signal
12	0.5 WH/BK	2500	High Speed GMLAN Serial Data (+) (1)	12	0.5 BU	2500	High Speed GMLAN Serial Data (+) (1)
13	0.5 WH	2501	High Speed GMLAN Serial Data (-) (1)	13	0.5 WH	2501	High Speed GMLAN Serial Data (-) (1)
14	0.5 YE	143	Accessory Voltage	14	0.5 VT/YE	5985	Accessory Wakeup Serial Data
15	0.5 WH	1310	EVAP Canister Vent Solenoid Control	15	0.75 WH	1310	EVAP Canister Vent Solenoid Control
16-17	-	-	Not Used	16-17	-	-	Not Used
18	0.5 GN	890	Fuel Tank Pressure Sensor Signal	18	0.5 BU/WH	890	Fuel Tank Pressure Sensor Signal
19	0.5 GY	2709	5 Volt Reference	19	0.5 YE/RD	2709	5 Volt Reference
20	0.5 BN/WH	419	Check Engine Indicator Control	20	0.5 BN/WH	419	Check Engine Indicator Control
21	0.5 BU	1936	Primary Fuel Level Sensor Signal	21	0.5 BU/VT	1589	Primary Fuel Level Sensor Signal
22	0.5 BU	1937	Secondary Fuel Level Sensor Signal	22	-	-	Not Used
23	0.5 WH	2759	Low Reference	23	0.5 BK/GN	6281	Low Reference
24	-	-	Not Used	24	-	-	Not Used
25	0.5 GN/WH	465	Fuel Pump Primary Relay Control	25	0.75 GN/GY	465	Fuel Pump Primary Relay Control
26-28	-	-	Not Used	26-28	-	-	Not Used
29	0.75 BN/GN	7573	Electric Variable Displacement Supply	29	0.5 BU/BN	7573	Electric Variable Displacement Supply
30	0.75 YE/BU	7574	Electric Variable Displacement Control	30	0.5 BU/YE	7574	Electric Variable Displacement Control
31	0.5 BK	39	Run/Crank Ignition 1 Voltage	31	0.75 VT/BK	739	Run/Crank Ignition 1 Voltage
32-40	-	-	Not Used	32-40	-	-	Not Used
