Controls, Doors, and Overhead Lamps Wiring Schematics

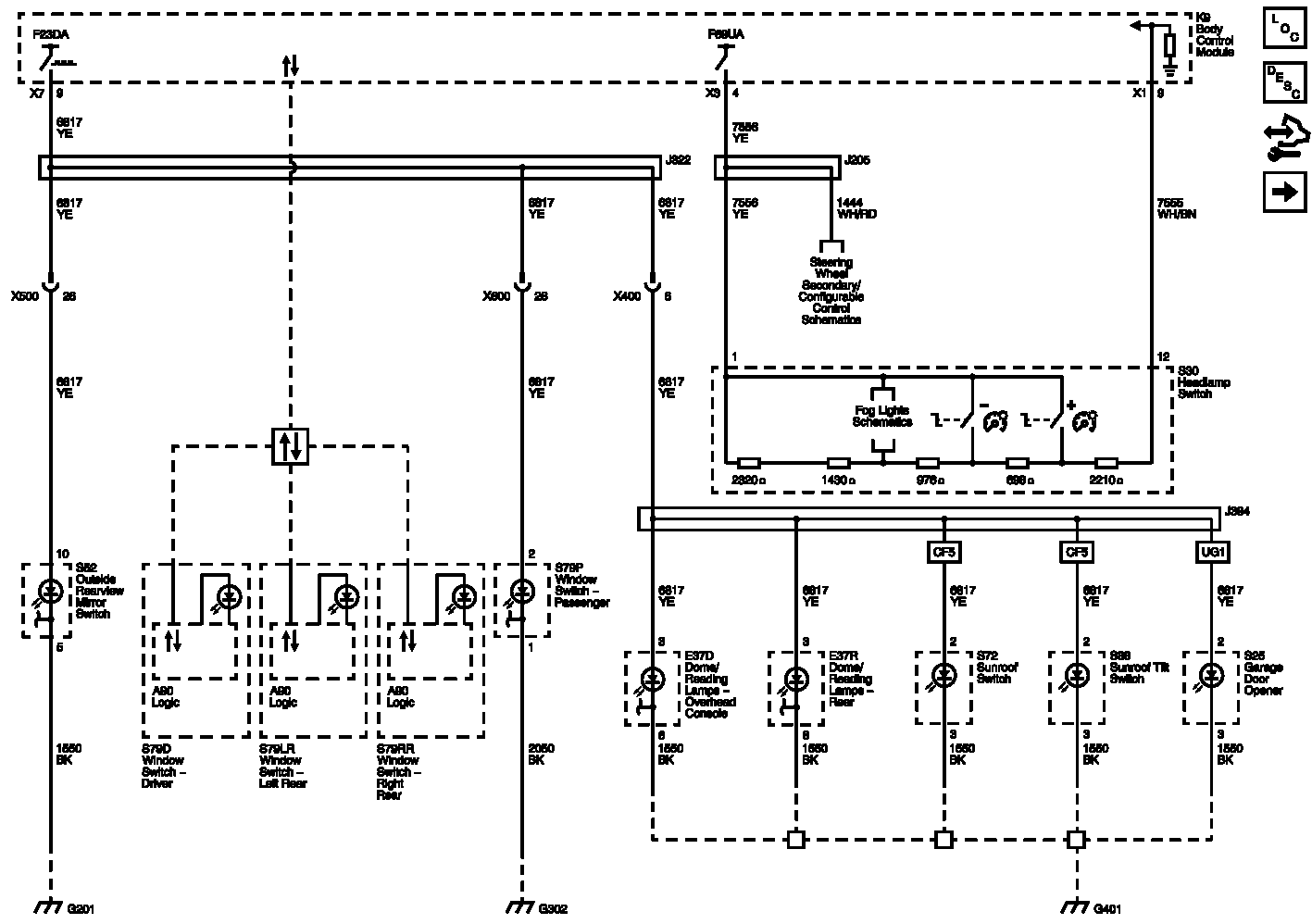

Fig 1: Controls, Doors, and Overhead Lamps Wiring Schematic
GM2611345Courtesy of GENERAL MOTORS COMPANY
