Rear License Plate Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY Rear License Plate Lamp Replacement

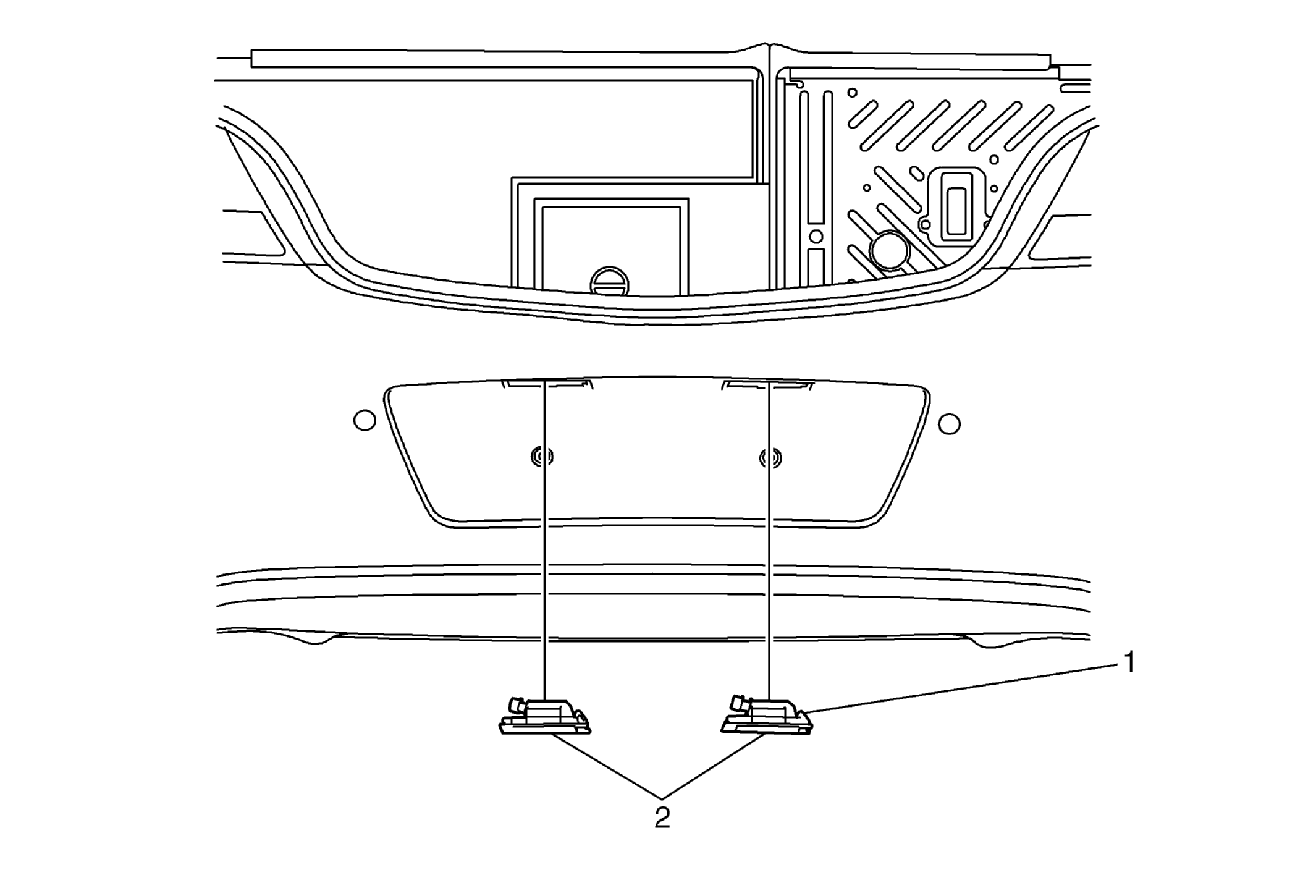

| Callout |
Component Name |
| 1 |
Rear License Plate Lamp Tap
TIP:
Using a small flat-bladed tool, pull the right side down out from the rear bumper opening. |
| 2 |
Rear License Plate Lamp
Procedure
Disconnect the rear license lamp electrical connector. |
