Rear License Plate Lamp Bulb Replacement
Rear License Plate Lamp Bulb Replacement

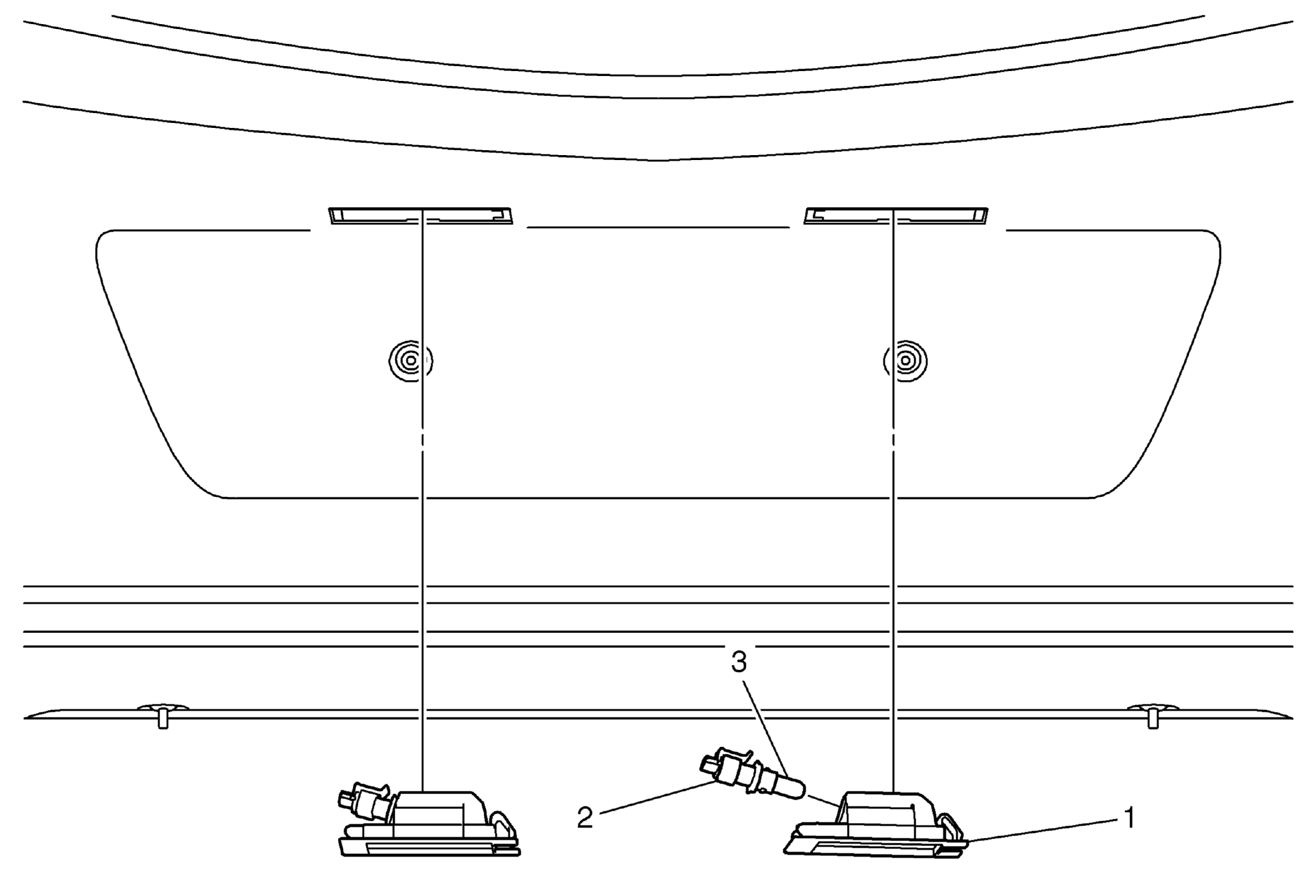

| Callout | Component Name |
|---|---|
| 1 | Rear License Lamp Retainer TIP: Using a small flat-bladed tool, pull the right side down out from the rear bumper fascia opening. |
| 2 | Rear License Lamp Socket TIP: Rotate the lamp socket counter clock wise and remove. |
| 3 | Rear License Lamp Bulb
CAUTION:
Refer to Avoid Touching the Bulb Caution . TIP: Service the bulb, as needed. |
