Rear Compartment Courtesy Lamp Replacement
Courtesy of GENERAL MOTORS COMPANY Rear Compartment Courtesy Lamp Replacement

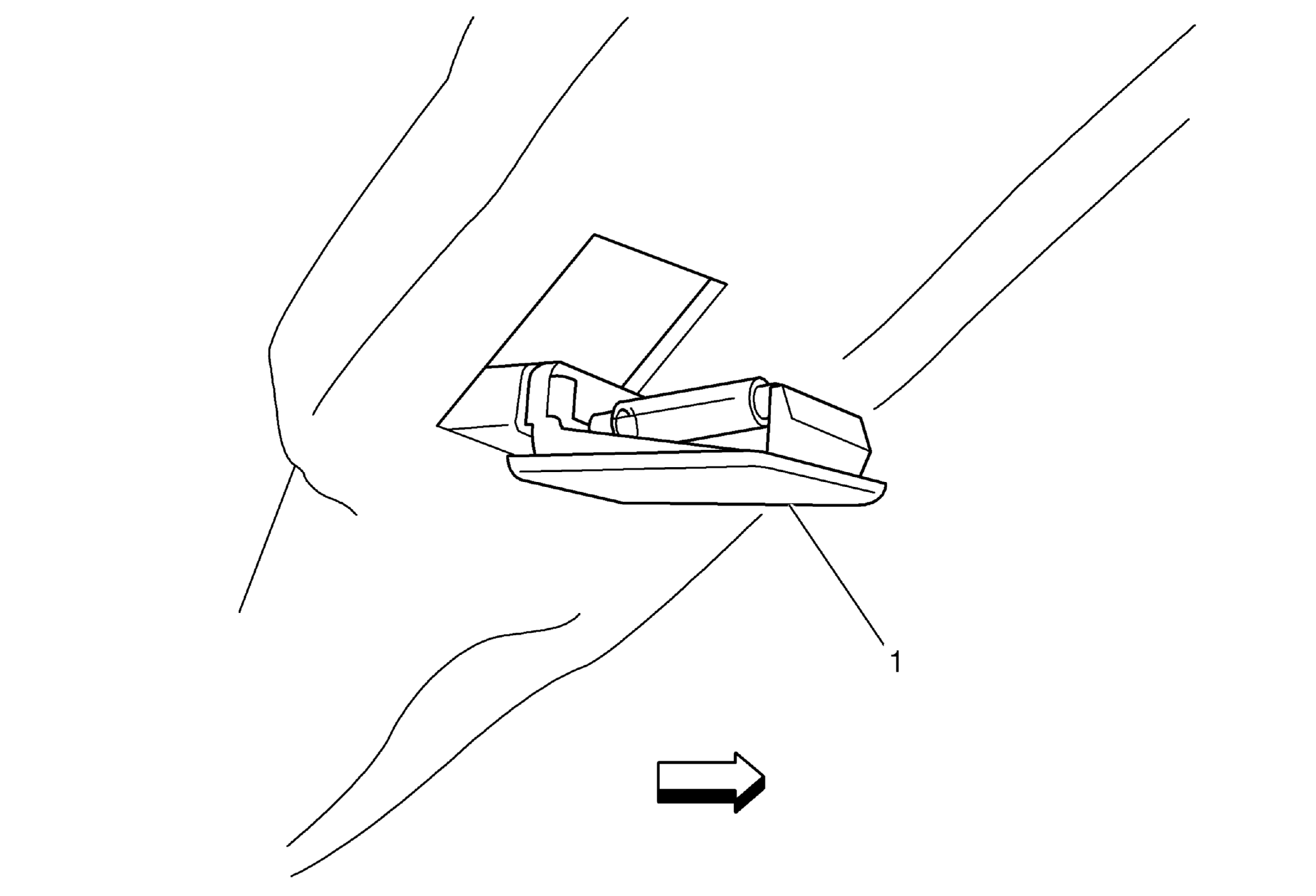

| Callout |
Component Name |
| 1 |
Rear Compartment Courtesy Lamp Procedure
- Release and pull off the rear compartment courtesy lamp.
- Disconnect the electrical connector.
TIP:
Carefully use a flat-bladed tool, and release the compartment lamp. |
