Reading Lamp Replacement

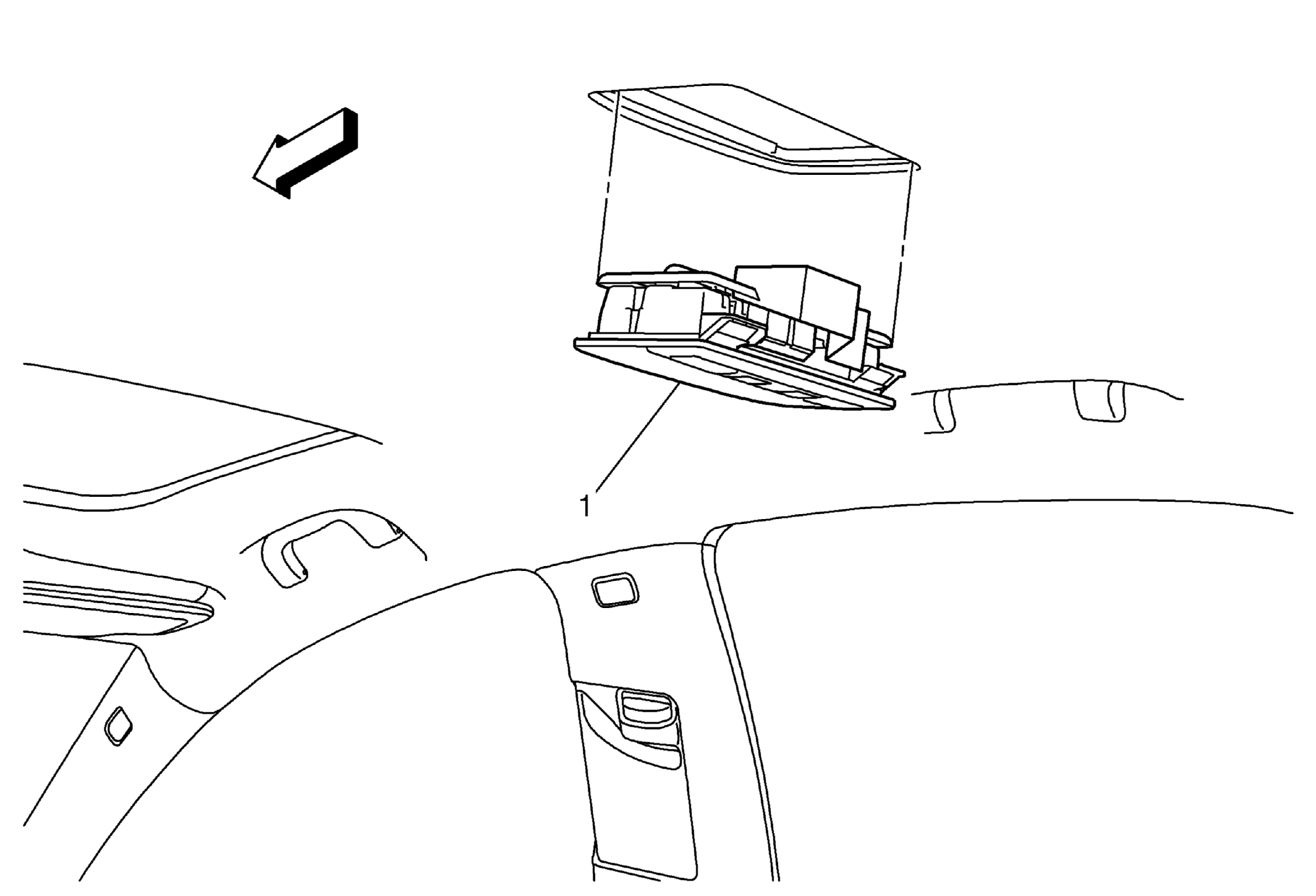

Fig 1: Reading Lamp
GM2019618Courtesy of GENERAL MOTORS COMPANY
Reading Lamp Replacement

Callout Component Name
1 Reading Lamp
Procedure
Disconnect the electrical connector.
TIP:  Carefully use a flat-bladed tool, release the retainer from the reading lamp to the headliner.
