Instrument Panel Compartment Lamp Replacement

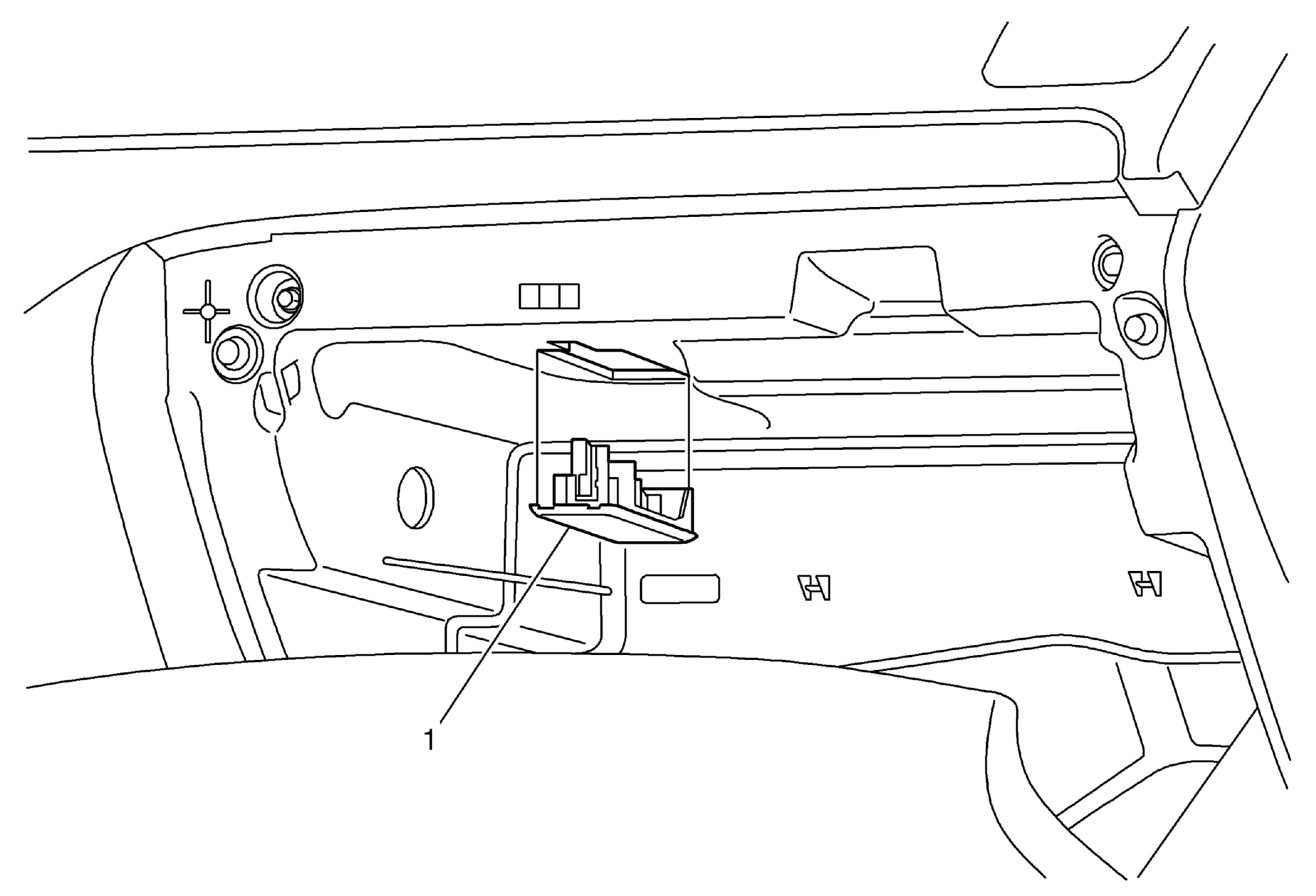

Fig 1: Instrument Panel Compartment Lamp
GM2193980Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Lamp Replacement

Callout Component Name
1 Instrument Panel Compartment Lamp

Procedure

  1. Release and pull off the instrument panel compartment lamp.
  2. Disconnect the electrical connector.

TIP:  Carefully use a flat-bladed tool, and release the compartment lamp from the instrument panel compartment.
